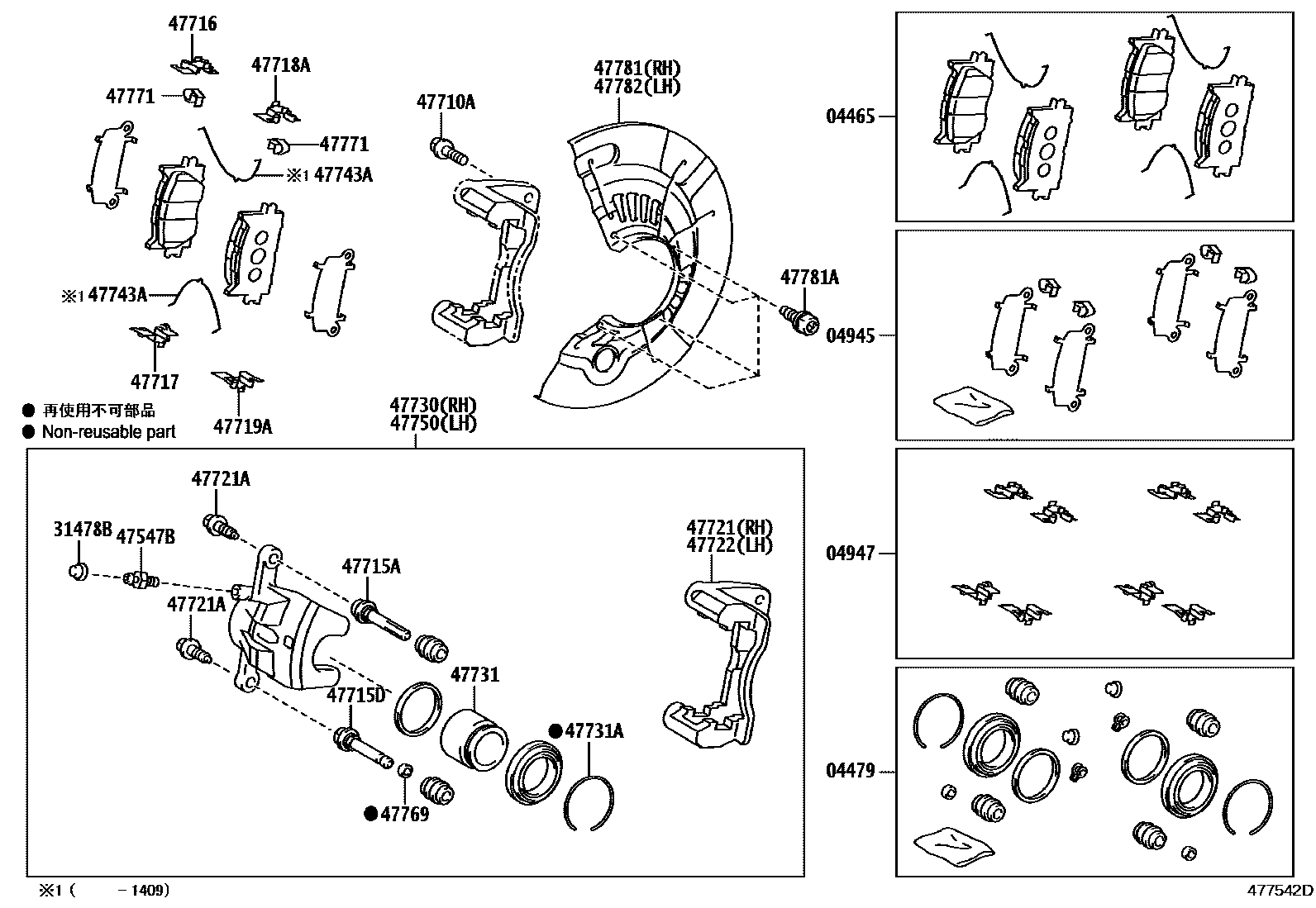

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-33471iAVV50201108-201704

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-58010iAVV50201108-201704

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33260iAVV50201108-201704

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33240iAVV50201108-201704

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAVV50201108-201704

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAVV50201108-201704

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iAVV50201108-201704

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-33361iAVV50201108-201704

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-33340iAVV50201108-201704

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47718-33340iAVV50201108-201704

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47719-33340iAVV50201108-201704

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47718-33340iAVV50201108-201704

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47719-33340iAVV50201108-201704

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33361iAVV50201108-201704

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iAVV50201108-201704

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-33361iAVV50201108-201704

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-33361iAVV50201108-201704

47731PISTON, FRONT DISC BRAKE

main47731-33340iAVV50201108-201704

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-76002iAVV50201108-201704

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-33340iAVV50201108-201409

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-33361iAVV50201108-201704

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iAVV50201108-201704

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-53060iAVV50201108-201704

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-33050iAVV50201108-201704

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iAVV50201108-201704

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-33050iAVV50201108-201704

26 parts on this diagram · 1 diagram in section
