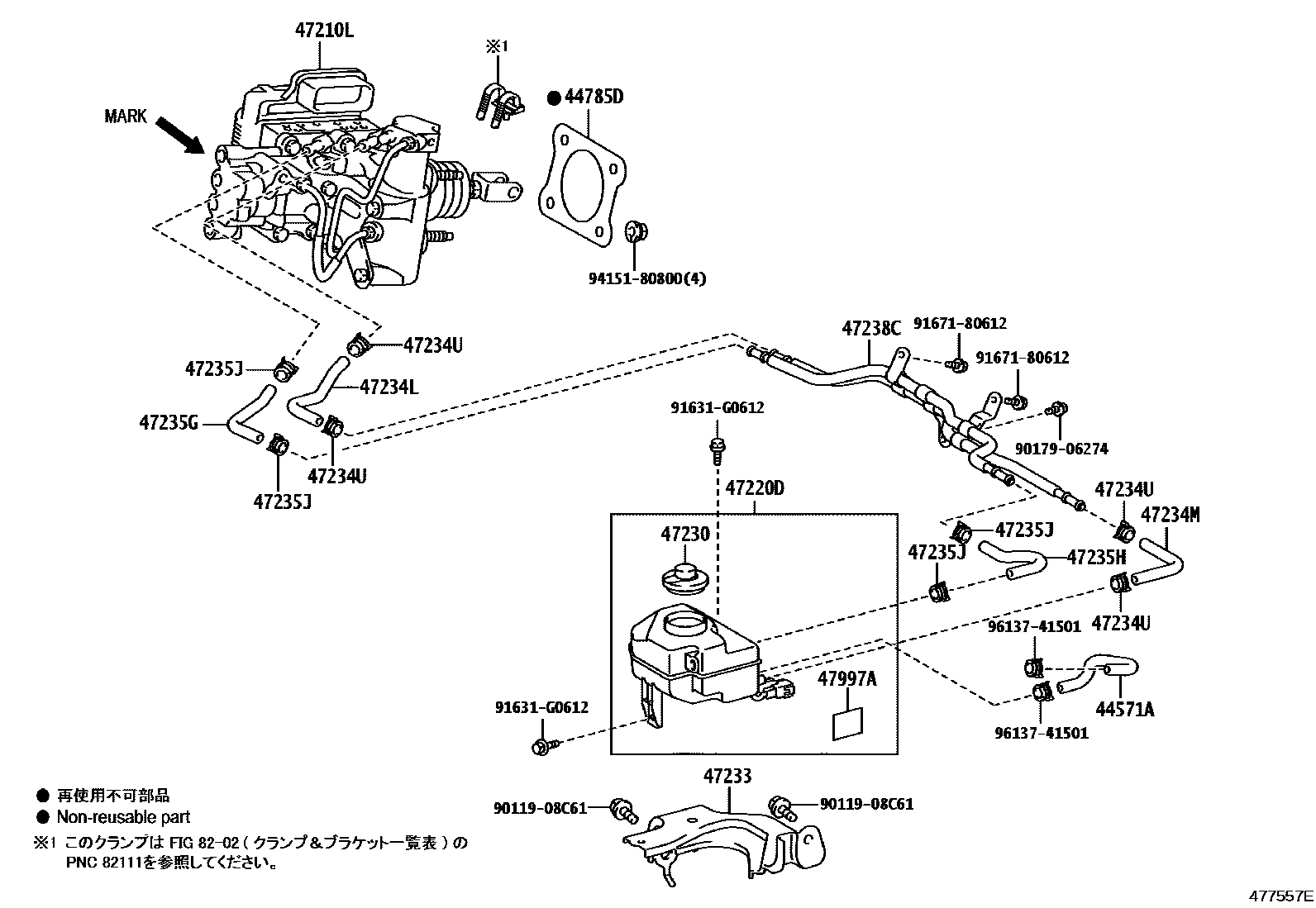

BRAKE MASTER CYLINDER

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-33120iAVV50201108-201704

44785DGASKET, BRAKE MASTER CYLINDER

main44785-12040iAVV50201108-201704

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-33031iAVV50201203-201209

sub47050-33032

main47050-33130iAVV50201108-201203

main47050-33140iAVV50201209-201409

main47050-33180iAVV50201409-201704

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-33260iAVV50201108-201704

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iAVV50201108-201704

47233BRACKET, RESERVOIR

main47233-33040iAVV50201108-201704

47234LHOSE, RESERVOIR, NO.1

main47234-33040iAVV50201108-201704

47234MHOSE, RESERVOIR, NO.1

main47234-33050iAVV50201108-201704

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main96137-41501iAVV50201108-201704

47235GHOSE, RESERVOIR, NO.2

main47235-33030iAVV50201108-201704

47235HHOSE, RESERVOIR, NO.2

main47235-33040iAVV50201108-201704

47235JCLIP(FOR RESERVOIR HOSE NO.2)

main96137-41501iAVV50201108-201704

47238CTUBE, RESERVOIR

main47238-33030iAVV50201108-201704

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iAVV50201108-201704

9011908C61

main90119-08C61

9017906274

main90179-06274

91631G0612

main91631-G0612

9167180612

main91671-80612

9415180800

main94151-80800

9613741501

main96137-41501

20 parts on this diagram · 1 diagram in section
