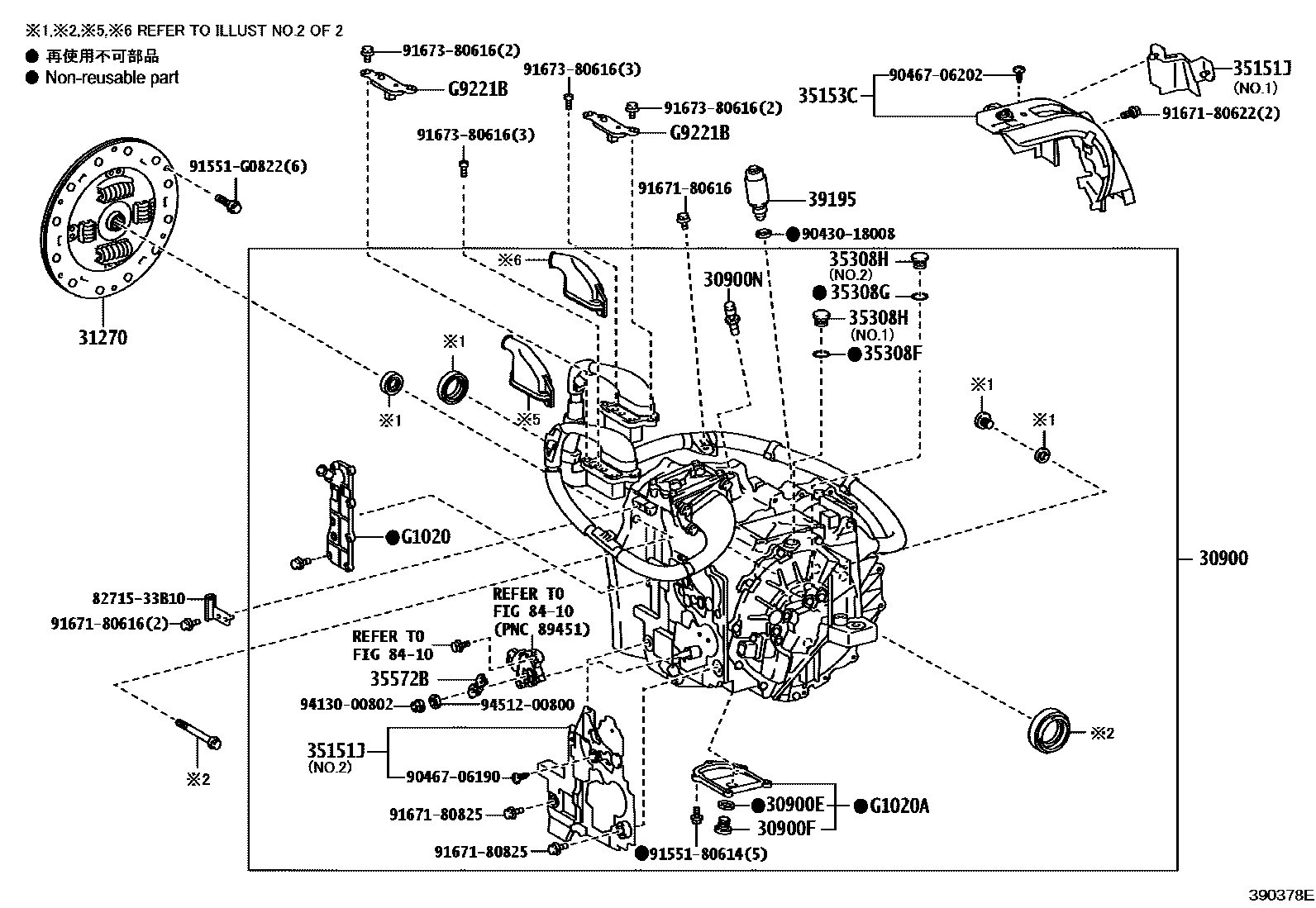

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1 0003 1

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-33030iAVV50201405-201704

sub30900-33053

main30900-33040iAVV50201108-201405

sub30900-33030

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iAVV50201108-201704

30900FPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)

main90341-18016iAVV50201108-201405

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iAVV50201108-201704

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-30010iAVV50201210-201704

main31270-33020iAVV50201108-201209

sub31270-30010

35151JCOVER, AUTOMATIC TRANSMISSION CASE

main35151-33090iAVV50201108-201704

main35151-33100iAVV50201108-201704

35153CCOVER, AUTOMATIC TRANSMISSION CASE, NO.3

main35153-33030iAVV50201108-201704

35308FRING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)

main90301-13013iAVV50201108-201704

35308GRING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)

main90301-06196iAVV50201108-201704

35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)

main90341-08001iAVV50201108-201409

main90341-16023iAVV50201108-201704

35572BLEVER, TRANSMISSION, OUTER

main35572-33030iAVV50201108-201704

39195DAMPER, HV TRANSAXLE MASS

main39195-33020iAVV50201108-201704

8410

G1020COVER ASSY, MOTOR WATER JACKET, NO.1

mainG102033010iAVV50201108-201704

G1020ACOVER ASSY, MOTOR WATER JACKET, NO.2

mainG102048030iAVV50201108-201704

G9221BCOVER, INVERTER, UPRPER

mainG922133010iAVV50201108-201704

8271533B10BRACKET,WIRING HARNESS CLAMP

main82715-33B10

9043018008

main90430-18008

9046706190

main90467-06190

9046706202

main90467-06202

9155180614

main91551-80614

91551G0822

main91551-G0822

9167180616

main91671-80616

9167180622

main91671-80622

9167180825

main91671-80825

9167380616

main91673-80616

9413000802

main94130-00802

9451200800

main94512-00800

28 parts on this diagram · 3 diagrams in section
