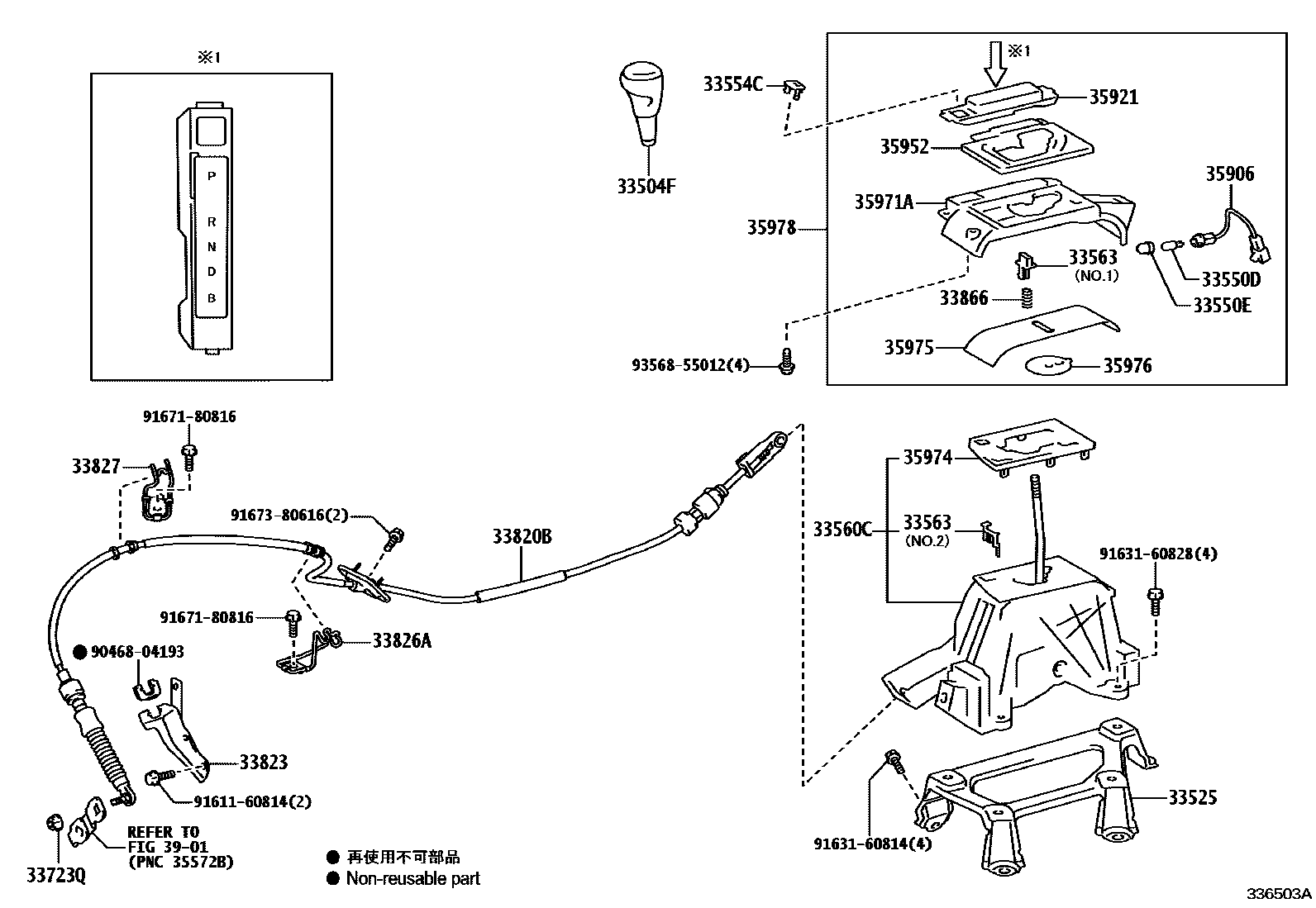

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
SHELL & BLACK,TRIM20
SHELL & BLACK,TRIM0#,2#
SHELL & BLACK,TRIM0#,20
BROWN & BLACK,TRIM0#,20
BROWN & BLACK,TRIM0#,20
SHELL & BLACK,TRIM20
SHELL & BLACK,TRIM2#
33525SUPPORT, SHIFT LEVER
33550DBULB, POSITION INDICATOR LAMP
33550ECAP, POSITION INDICATOR LAMP
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33723QNUT (FOR CONNECTING ROD SWIVEL)
33820BCABLE ASSY, TRANSMISSION CONTROL
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33826ABRACKET, TRANSMISSION CONTROL CABLE, NO.2
33827BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33866SPRING, SHIFT LOCK RELEASE
35906WIRE SUB-ASSY, INDICATOR LAMP
35921PLATE, CONTROL POSITION INDICATOR
35952LENS, POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35978INDICATOR, SHIFT POSITION
3901
9046804193
main90468-04193
9161160814
main91611-60814
9163160814
main91631-60814
9163160828
main91631-60828
9167180816
main91671-80816
9167380616
main91673-80616
9356855012
main93568-55012
29 parts on this diagram · 2 diagrams in section
