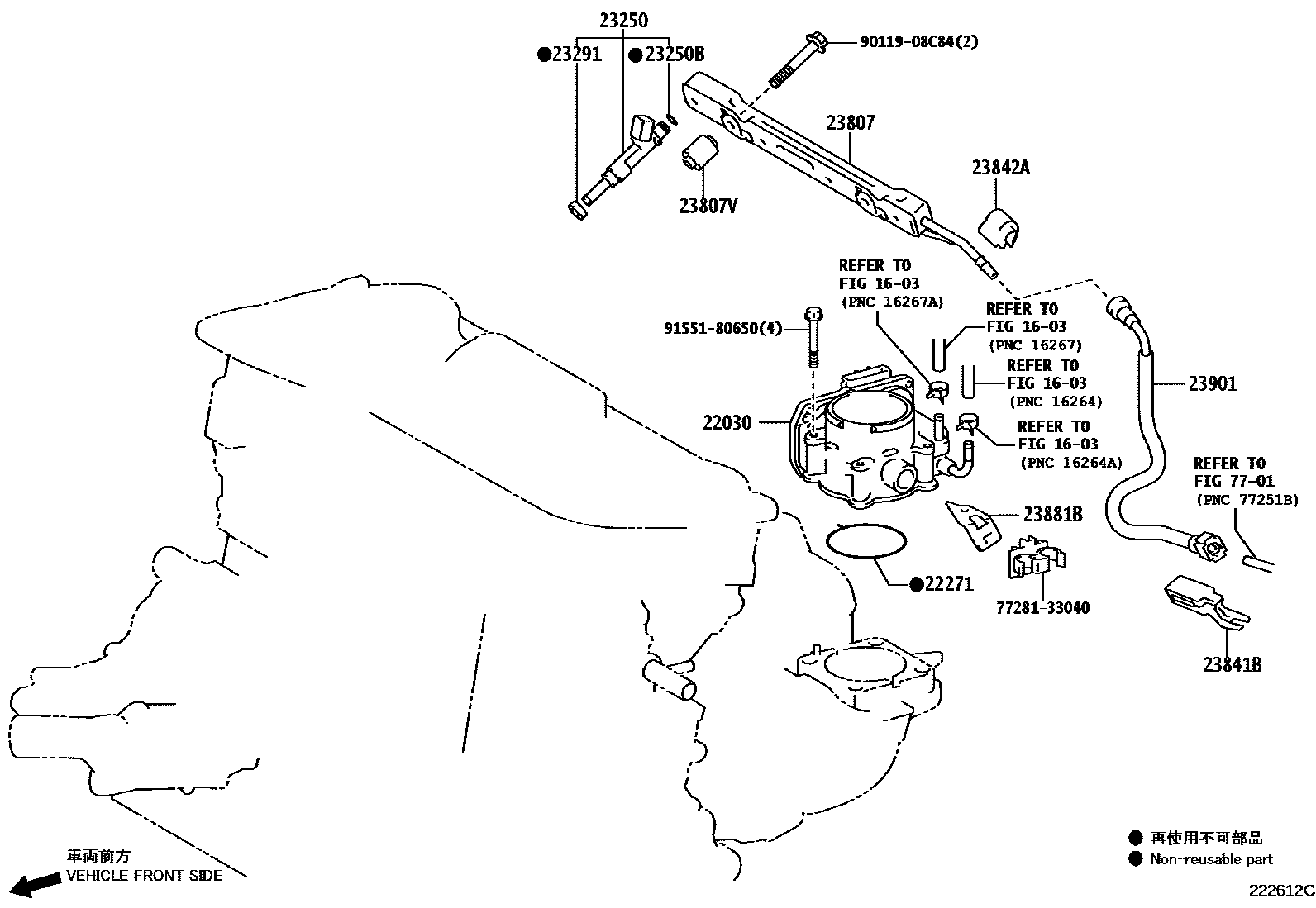

FUEL INJECTION SYSTEM

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-36020i2ARFXE..AVV50201108-201704

22271GASKET, THROTTLE BODY

main22271-36020i2ARFXE..AVV50201108-201704

23250INJECTOR ASSY, FUEL

main23209-39175i2ARFXE..AVV50201108-201704

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i2ARFXE..AVV50201108-201704

23291INSULATOR, INJECTOR VIBRATION

main23291-28020i2ARFXE..AVV50201108-201704

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-36030i2ARFXE..AVV50201108-201201

main23814-36050i2ARFXE..AVV50201201-201704

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-36010i2ARFXE..AVV50201108-201704

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-31070i2ARFXE..AVV50201108-201704

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2ARFXE..AVV50201108-201704

23881BBRACKET, FUEL HOSE

main23881-36030i2ARFXE..AVV50201108-201704

23901TUBE SUB-ASSY, FUEL

main23901-36050i2ARFXE..AVV50201108-201704

7701

7728133040BRACKET, FUEL MAIN TUBE, NO.1

main77281-33040

9011908C84

main90119-08C84

9155180650

main91551-80650

16 parts on this diagram · 1 diagram in section
