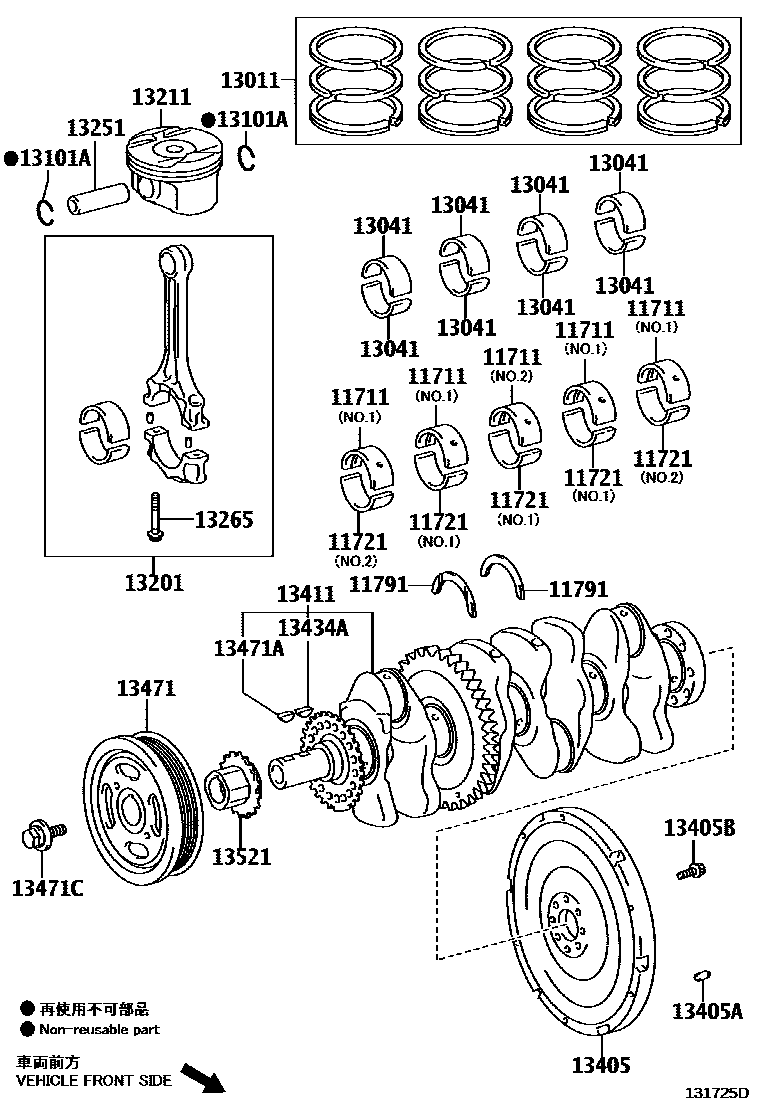

CRANKSHAFT & PISTON
11791WASHER, CRANKSHAFT THRUST, UPPER
13101ARING, HOLE SNAP(FOR PISTON PIN)
13211PISTON
13251PIN, PISTON
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
13405BBOLT, FLYWHEEL SETTING
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
19 parts on this diagram · 1 diagram in section
