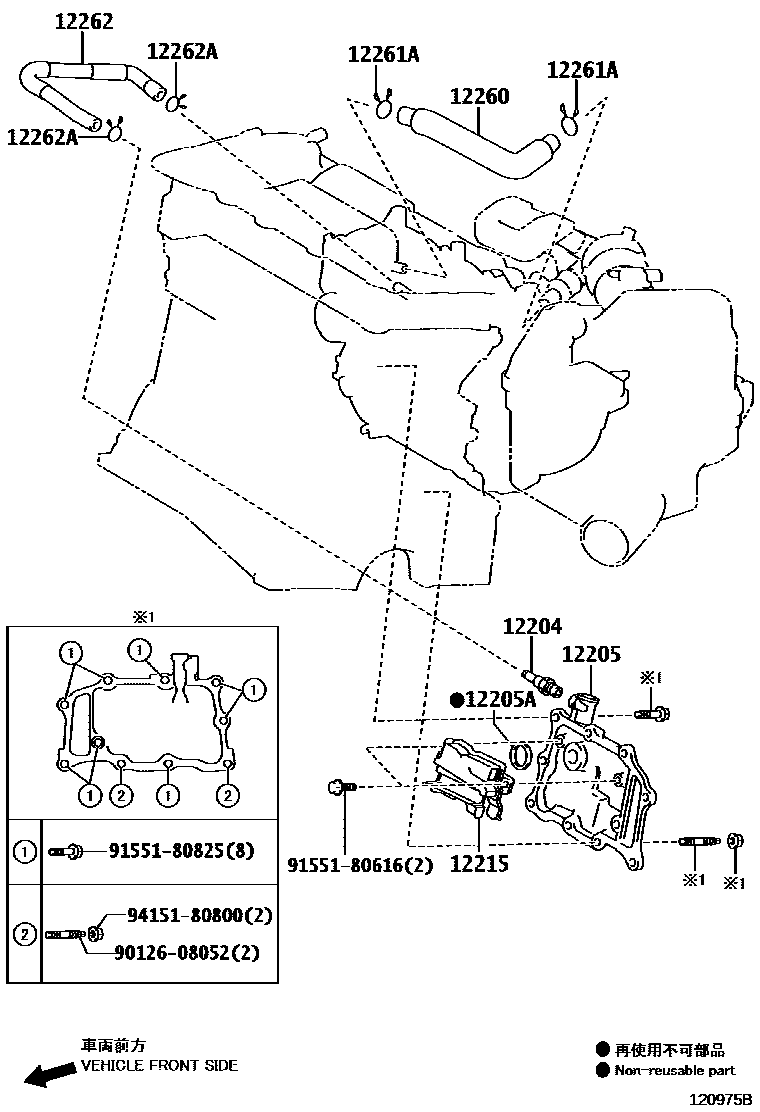

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-36020i2ARFXE..AVV50201108-201704

12205CASE SUB-ASSY, VENTILATION

main12205-36010i2ARFXE..AVV50201108-201704

12205ARING, O(FOR VENTILATION CASE)

main12273-36010i2ARFXE..AVV50201108-201704

12215SEPARATOR, CASE

main12215-36010i2ARFXE..AVV50201108-201704

12260HOSE ASSY, VENTILATION

main12260-36040i2ARFXE..AVV50201108-201704

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-21004i2ARFXE..AVV50201108-201704

12262HOSE, VENTILATION, NO.2

main12262-36030i2ARFXE..AVV50201108-201309

sub12262-36080

main12262-36080i2ARFXE..AVV50201309-201704

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-16035i2ARFXE..AVV50201108-201704

9012608052

main90126-08052

9155180616

main91551-80616

9155180825

main91551-80825

9415180800

main94151-80800

12 parts on this diagram · 1 diagram in section
