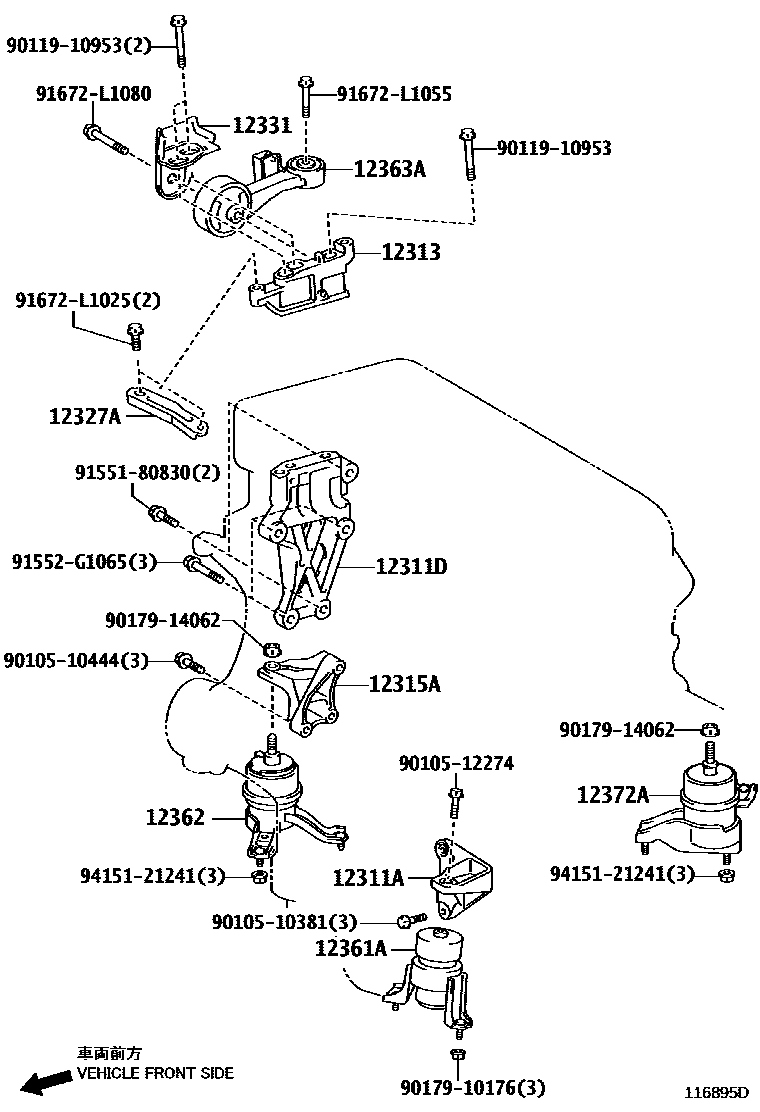

MOUNTING

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-36070i2ARFXE..AVV50201108-201704

12311DBRACKET, ENGINE MOUNTING

main12313-36010i2ARFXE..AVV50201108-201704

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-36040i2ARFXE..AVV50201108-201704

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12319-36030i2ARFXE..AVV50201108-201704

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-36020i2ARFXE..AVV50201108-201704

12331STAY, ENGINE MOUNTING, NO.3 RH

main12331-36020i2ARFXE..AVV50201108-201704

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-36090i2ARFXE..AVV50201108-201509

sub12361-36091

main12361-36091i2ARFXE..AVV50201510-201704

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-36050i2ARFXE..AVV50201108-201205

sub12362-36051

main12362-36051i2ARFXE..AVV50201206-201402

sub12362-36052

main12362-36052i2ARFXE..AVV50201403-201704

12363AROD, ENGINE MOVING CONTROL

main12363-36050i2ARFXE..AVV50201108-201208

sub12363-36080

main12363-36080i2ARFXE..AVV50201208-201704

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-28250i2ARFXE..AVV50201108-201704

9010510381

main90105-10381

9010510444

main90105-10444

9010512274

main90105-12274

9011910953

main90119-10953

9017910176

main90179-10176

9017914062

main90179-14062

9155180830

main91551-80830

91552G1065

main91552-G1065

91672L1025

main91672-L1025

91672L1055

main91672-L1055

91672L1080

main91672-L1080

9415121241

main94151-21241

22 parts on this diagram · 1 diagram in section
