STANDARD TOOL

09110JACK ASSY

main09111-33030iAVV50201108-201512

sub09111-76010

main09111-76010iAVV50201601-201704

sub09111-76011

09113HANDLE, JACK

main09113-33010iAVV50201108-201704

09120BAG, TOOL

main09120-16030iAVV50201204-201704

09130PLIERS

main99913-11500iAVV50201204-201704

09135DRIVER, SCREW

main99915-10700iAVV50201204-201704

09141SPANNER

main99914-10810iAVV50201204-201704

main99914-11214iAVV50201204-201704

09150WRENCH, HUB NUT BOX

main09150-40010iAVV50201108-201704

09184STOPPER, WHEEL

main09184-00010iAVV50201108-201704

42683SEAL, TIRE REPAIR

mainC604847051iAVV50201409-201704

44890DCOMPRESSOR ASSY, AIR

main44890-52021iAVV50201409-201704

sub44890-52022

51960HOOK ASSY, FRONT

main51960-47020iAVV50201108-201503

main51960-52090iAVV50201504-201704

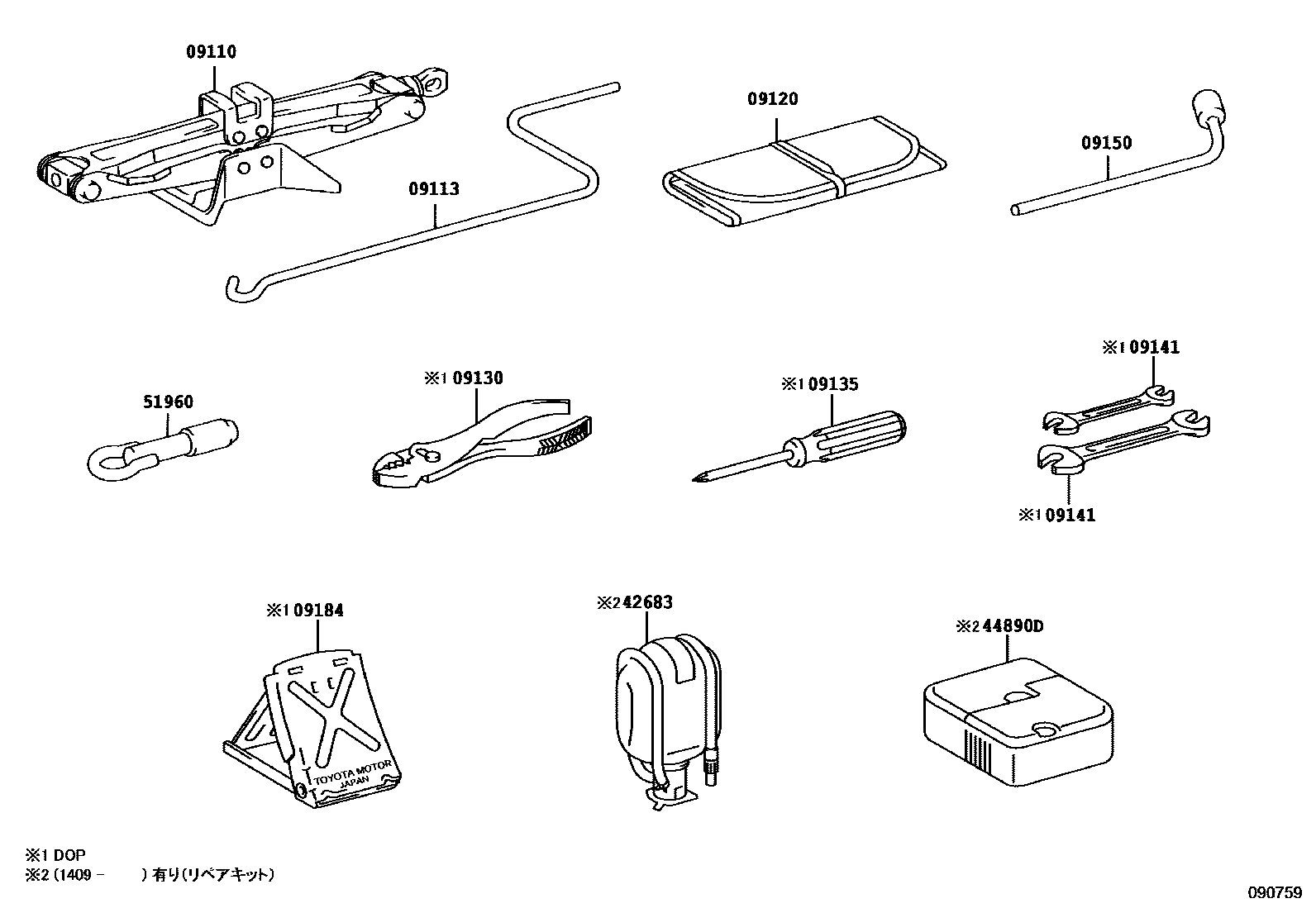

11 parts on this diagram · 1 diagram in section
