SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1�������� 1/2 0003 1�������� 2/2 0004 1��� 0005 1������������ 0006 1������� 0007 1��� 0008 1���,���,��� & ����������

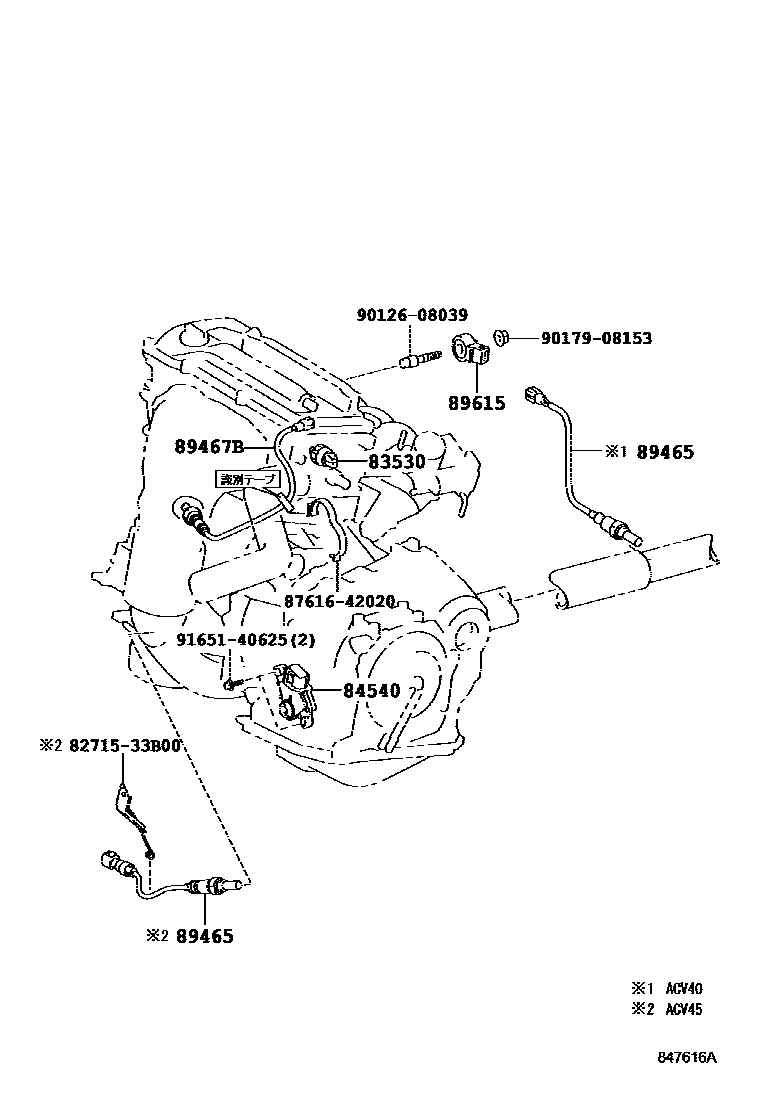

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iACV4#200601-201108

main83530-60020iACV4#200601-201108

main83530-AA011iACV4#200704-200901

sub83530-0E010

84540SWITCH ASSY, NEUTRAL START

main84540-48010iACV4#200601-201108

89465SENSOR, OXYGEN

main89465-33430iACV45200601-201008

main89465-33460iACV40200601-201008

main89465-33540iACV40201008-201108

main89465-33550iACV45201008-201108

89467BSENSOR, AIR FUEL RATIO

main89467-33160iACV45200706-200901

main89467-58090iACV45200601-201108

89615SENSOR, KNOCK CONTROL

main89615-20090iACV4#200601-201108

8271533B00BRACKET,WIRING HARNESS CLAMP

main82715-33B00

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9012608039

main90126-08039

9017908153

main90179-08153

9165140625

main91651-40625

10 parts on this diagram · 8 diagrams in section
