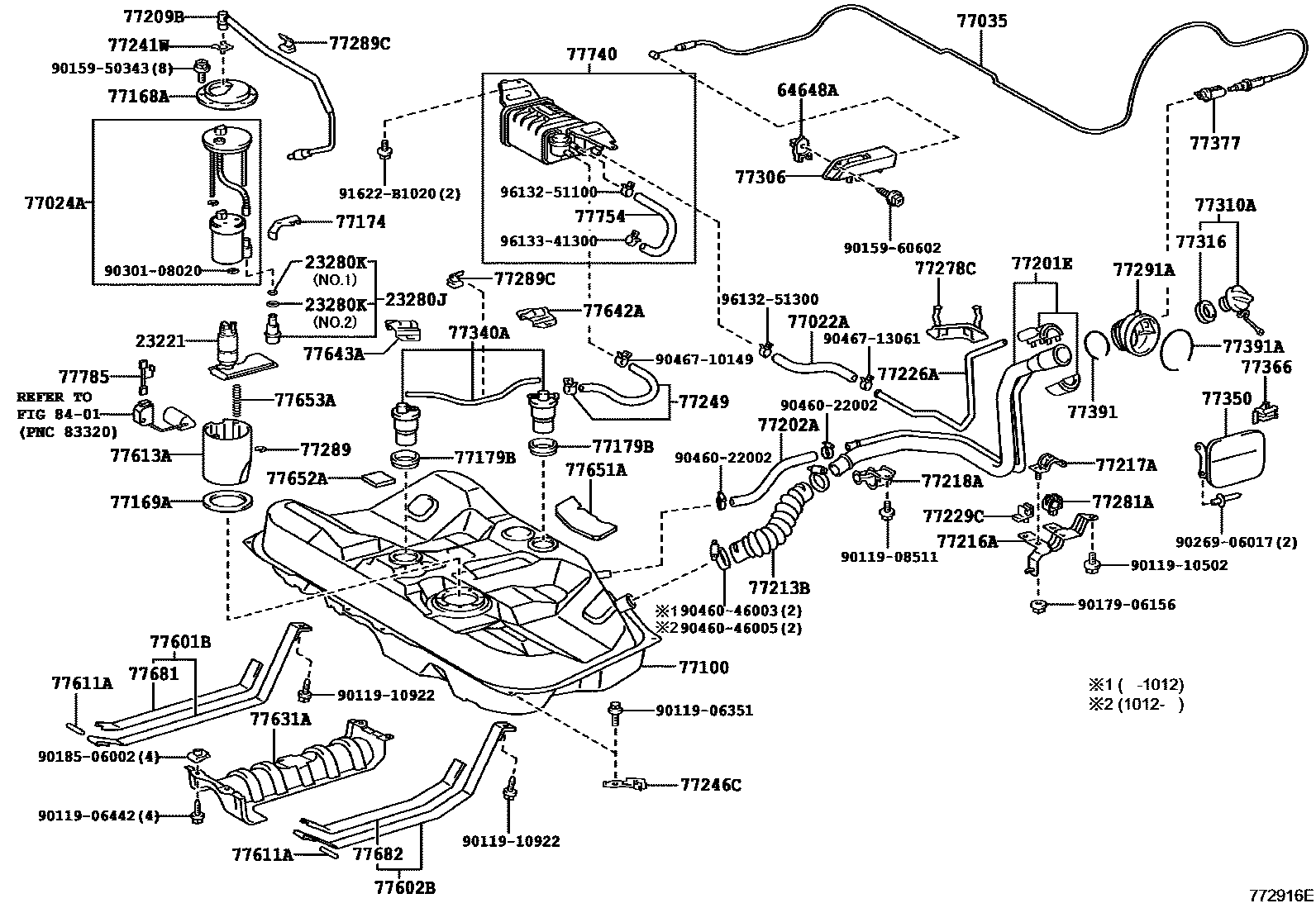

FUEL TANK & TUBE

0001 1����� ��� 0002 1����� ��� 0003 1����� ����� 0004 1����� �����

23221PUMP, FUEL

main23220-28070i2AZFE..ACV40200601-200708

sub23220-28071

main23220-28071i2AZFE..ACV40200709-201108

sub23220-28360

main23221-20030i2AZFE..ACV45200601-201108

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2AZFE..ACV40200601-201108

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2AZFE..ACV40200601-201108

main90301-07020i2AZFE..ACV45200601-201108

main90301-15024i2AZFE..ACV40200601-201108

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-12020iACV4#200601-201108

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-08030iACV40200601-201108

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-33020iACV45200601-201108

main77024-33060iACV40200601-201108

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-33120iACV4#200601-201108

77100TANK ASSY, FUEL

main77001-33081iACV45200601-200804

sub77001-33082

main77001-33082iACV45200805-201108

main77001-33150iACV40200601-200709

sub77001-33151

main77001-33151iACV40200710-201108

77168APLATE, FUEL TANK VENT TUBE SET

main77168-33040iACV45200601-201108

main77168-33050iACV40200601-201108

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iACV4#200601-201108

77174SUPPORT, FUEL SUCTION, NO.1

main77174-33020iACV40200601-201108

77179BGASKET, FUEL TANK EVAPORATION VENT TUBE

main77179-26010iACV45200601-201108

sub77179-26011

main77179-33010iACV40200601-201108

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-33280iACV40200601-201108

sub77201-33281

sub90105-08158

main77201-33290iACV45200601-201108

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main95312-13024iACV40200601-201108

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-33040iACV40200601-201108

main77209-33050iACV45200601-201108

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-33050iACV40200601-201108

sub77213-33120

main77213-33080iACV45200601-201108

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77104-33020iACV45200601-201108

main77216-33090iACV40200601-201108

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-32040iACV45200601-201108

main77217-33020iACV40200601-201108

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-33010iACV4#200601-201108

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-33040iACV40200601-201108

77229CCLAMP, BREATHER TUBE

main77229-33090iACV40200601-201108

77241WCLIP, TUBE JOINT

main77241-33011iACV4#200601-201108

77246CSUPPORT, FUEL MAIN TUBE

main77246-33020iACV40200601-201108

77249HOSE, FUEL EMISSION

main77249-33090iACV40200601-201108

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-33030iACV40200601-201108

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-33030iACV4#200601-201108

77281ACLAMP, FUEL FILLER PIPE

main77281-48030iACV40200601-201108

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iACV40200601-201108

77289CCLAMP, FUEL TUBE, NO.4

main77289-33040iACV45200601-201108

main90464-00745iACV40200601-201108

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-33060iACV4#200601-201108

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main64606-33020iACV4#200601-201108

77310ACAP ASSY, FUEL TANK

main77300-52030iACV4#200601-201108

77316GASKET, FUEL TANK CAP

main77316-52020iACV4#200601-200602

sub77316-52040

main77316-52040iACV4#200901-201108

77340AVALVE ASSY, FUEL CUT OFF W/TUBE

main77340-33020iACV40200601-201108

77350LID ASSY, FUEL FILLER OPENING

main77350-33180iACV4#200601-201108

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-33030iACV4#200601-201108

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-35010iACV4#200601-201108

77391RING, FUEL INLET BOX

main77391-12020iACV4#200601-201108

77391ARING, FUEL INLET BOX

main77391-33030iACV4#200601-201108

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-33040iACV40200601-201108

main77601-33070iACV45200601-201108

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-33020iACV45200601-201108

main77602-33050iACV40200601-201108

77611APIN (FOR FUEL TANK BAND)

main90250-08019iACV4#200601-201108

77613ABRACKET, FUEL TANK BAND, NO.1

main77613-33030iACV40200601-201108

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-33030iACV45200601-201108

main77631-33040iACV40200601-200804

sub77631-33041

main77631-33041iACV40200805-201009

sub77631-33080

main77631-33080iACV40201010-201108

77642APROTECTOR, FUEL TANK, NO.2

main77642-33010iACV40200601-200804

sub77642-33040

main77642-33030iACV45200601-201108

main77642-33040iACV40200804-201108

77643APROTECTOR, FUEL TANK, NO.3

main77643-33010iACV40200601-200804

sub77643-33030

main77643-33020iACV45200601-201108

main77643-33030iACV40200804-201108

77651ACUSHION, FUEL TANK, NO.1

main77651-20090iACV45200601-201108

main77651-33020iACV40200601-201108

77652CUSHION, FUEL TANK, NO.1

main77652-33030iACV45200601-201108

77652ACUSHION, FUEL TANK, NO.2

main77652-33020iACV40200601-201108

77653ACUSHION, FUEL TANK, NO.3

main77652-33040iACV40200601-201108

main77653-33010iACV45200601-201108

77681SEAT, FUEL TANK BAND, RH

main77681-32060iACV4#200601-201108

77682SEAT, FUEL TANK BAND, LH

main77681-32060iACV40200601-201108

main77682-16010iACV45200601-201108

77740CANISTER ASSY, CHARCOAL

main77740-33160iACV40200601-201108

main77740-48090iACV45200601-201108

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-33030iACV40200601-201108

77785HARNESS, FUEL PUMP

main77785-33010iACV45200601-201108

main77785-33040iACV40200601-201108

sub77785-33041

8401

9011906351

main90119-06351

9011906442

main90119-06442

9011908511

main90119-08511

9011910502

main90119-10502

9011910922

main90119-10922

9015950343

main90159-50343

9015960602

main90159-60602

9017906156

main90179-06156

9018506002

main90185-06002

9026906017

main90269-06017

9030108020

main90301-08020

9046022002

main90460-22002

9046046003

main90460-46003

9046046005

main90460-46005

9046710149

main90467-10149

9046713061

main90467-13061

91622B1020

main91622-B1020

9613251100

main96132-51100

9613251300

main96132-51300

9613341300

main96133-41300

76 parts on this diagram · 4 diagrams in section
