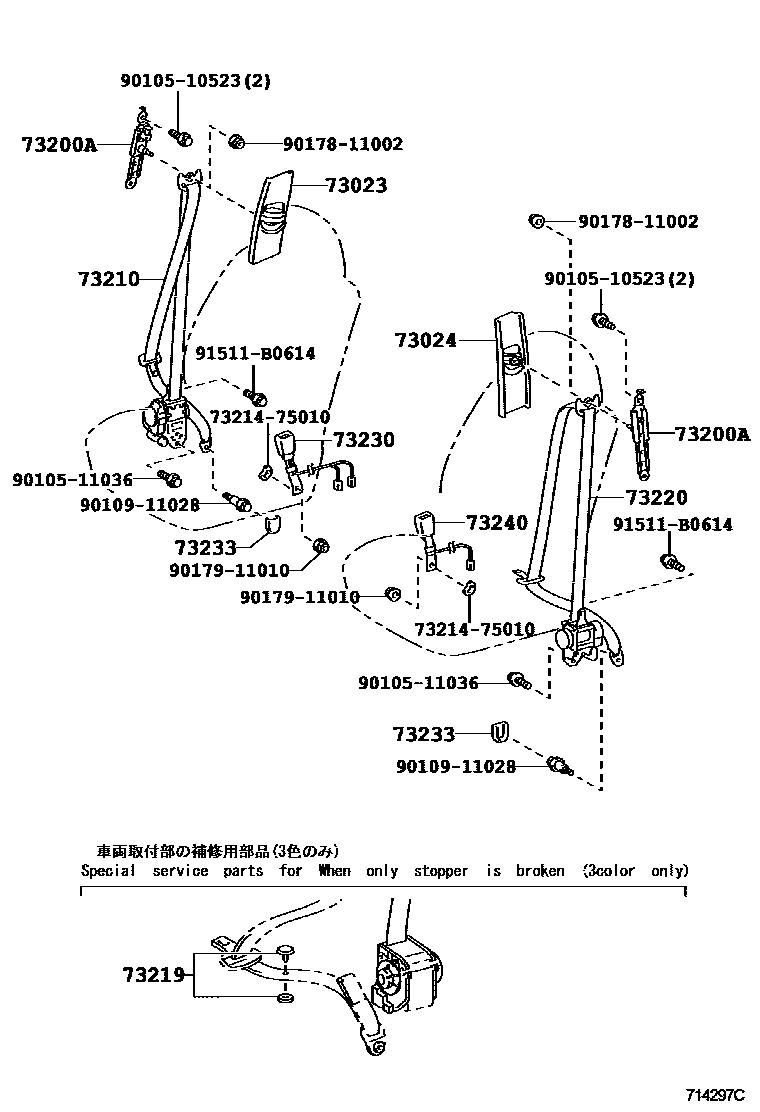

SEAT BELT & CHILD RESTRAINT SEAT

0001 1���� ��� 0002 1�� ���

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-33020-E0iACV4#200601-201108

GREGE,TRIM4#

sub73023-33020

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-33020-E0iACV4#200601-201108

GREGE,TRIM4#

sub73024-33020

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-53010iACV4#200601-201108

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-33400-E1iACV4#200601-201008

GREGE,TRIM4#

sub73210-33560

main73210-33560-E0iACV4#201008-201108

GREGE,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-33010iACV4#200601-201108

main73219-33020iACV4#200601-201108

main73219-33030iACV4#200901-201108

main73219-33030iACV4#200601-200901

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-33460-E0iACV4#200601-201008

GREGE,TRIM4#

sub73220-33560

main73220-33560-E0iACV4#201008-201108

GREGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-33640-E0iACV45200601-201108

GREGE,TRIM4#

main73230-33650-E0iACV40200601-200901

GREGE,TRIM4#

main73230-33650-E0iACV45200601-200901

main73230-33650-E0iACV40200901-201108

main73230-33650-E0iACV4#200901-201108

73233COVER, LAP BELT OUTER ANCHOR

main73233-33010-E6iACV4#200601-201108

GREGE,TRIM4#

sub73233-33010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-33490-E1iACV4#200601-200901

main73230-33490-E1iACV4#200601-201108

main73240-33100-E0iACV4#200601-201108

GREGE,TRIM4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511036

main90105-11036

9010911028

main90109-11028

9017811002

main90178-11002

9017911010

main90179-11010

91511B0614

main91511-B0614

16 parts on this diagram · 2 diagrams in section
