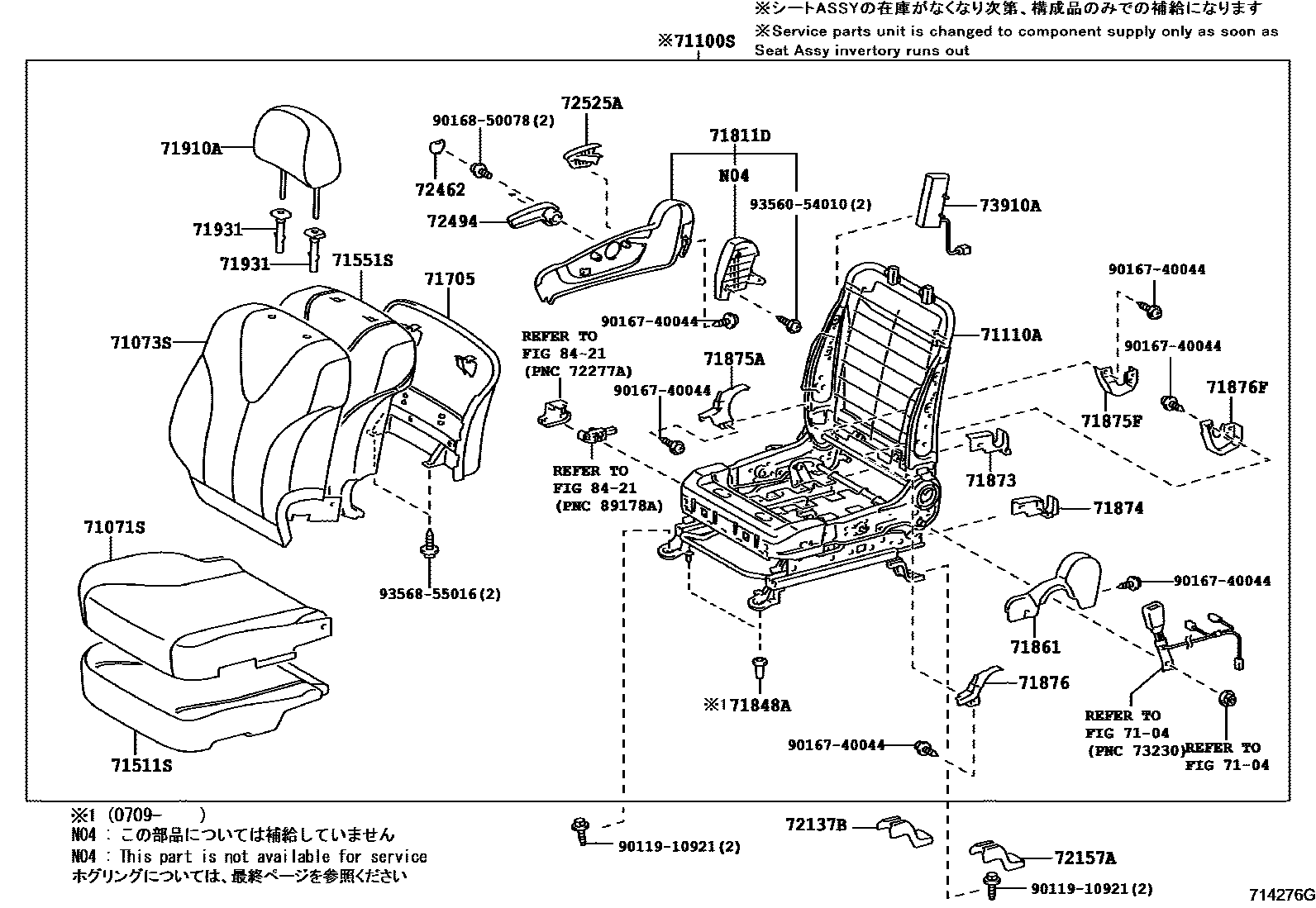

FRONT SEAT & SEAT TRACK
7104
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
GREGE,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71100SSEAT ASSY, FRONT RH
GREGE,TRIM4#
71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
GREGE,TRIM4#
GREGE,TRIM4#
71811DSHIELD, FRONT SEAT CUSHION, RH
GREGE,TRIM4#
GREGE,TRIM4#
71848ACAP, SEAT ADJUSTER COVER, RH
71861SHIELD, FRONT SEAT CUSHION, INNER RH
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71876COVER, RECLINING ADJUSTER INSIDE, LH
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71910AHEADREST ASSY, FRONT SEAT
GREGE,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
72137BCOVER, SEAT TRACK, RH
72157ACOVER, SEAT TRACK BRACKET, INNER RH
72462COVER, VERTICAL ADJUSTER RH
72494HANDLE, VERTICAL ADJUSTING, RH
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
73910AAIRBAG ASSY, FRONT SEAT, RH
8421
9011910921
9016740044
9016850078
9356054010
9356855016
31 parts on this diagram · 5 diagrams in section
