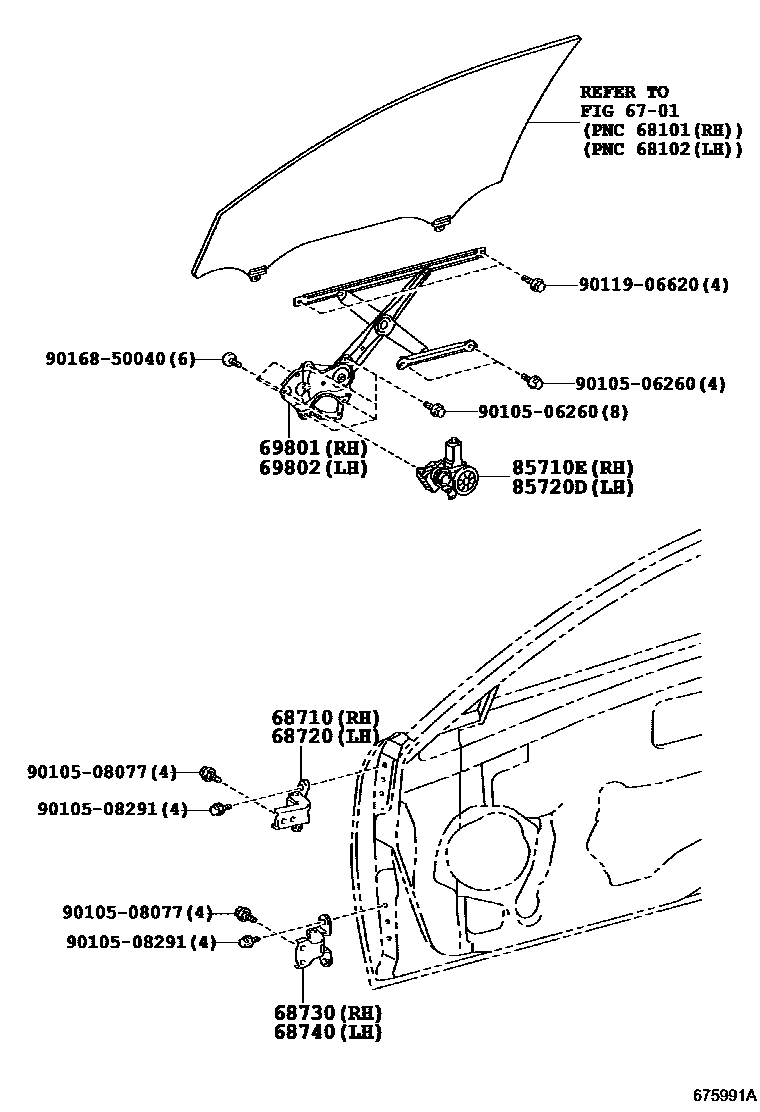

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iACV4#200601-200609

main68710-12151iACV4#200610-201108

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150iACV4#200601-200609

main68720-12151iACV4#200610-201108

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-33020iACV4#200601-200609

main68730-33021iACV4#200610-201108

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-33020iACV4#200601-200609

sub68740-33021

main68740-33021iACV4#200610-201108

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-33060iACV4#200601-201108

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-33050iACV4#200601-201108

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-33160iACV4#200601-200710

sub85710-33161

main85710-33161iACV4#200711-201108

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-33160iACV4#200601-200710

sub85720-33161

main85720-33161iACV4#200711-201108

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9011906620

main90119-06620

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
