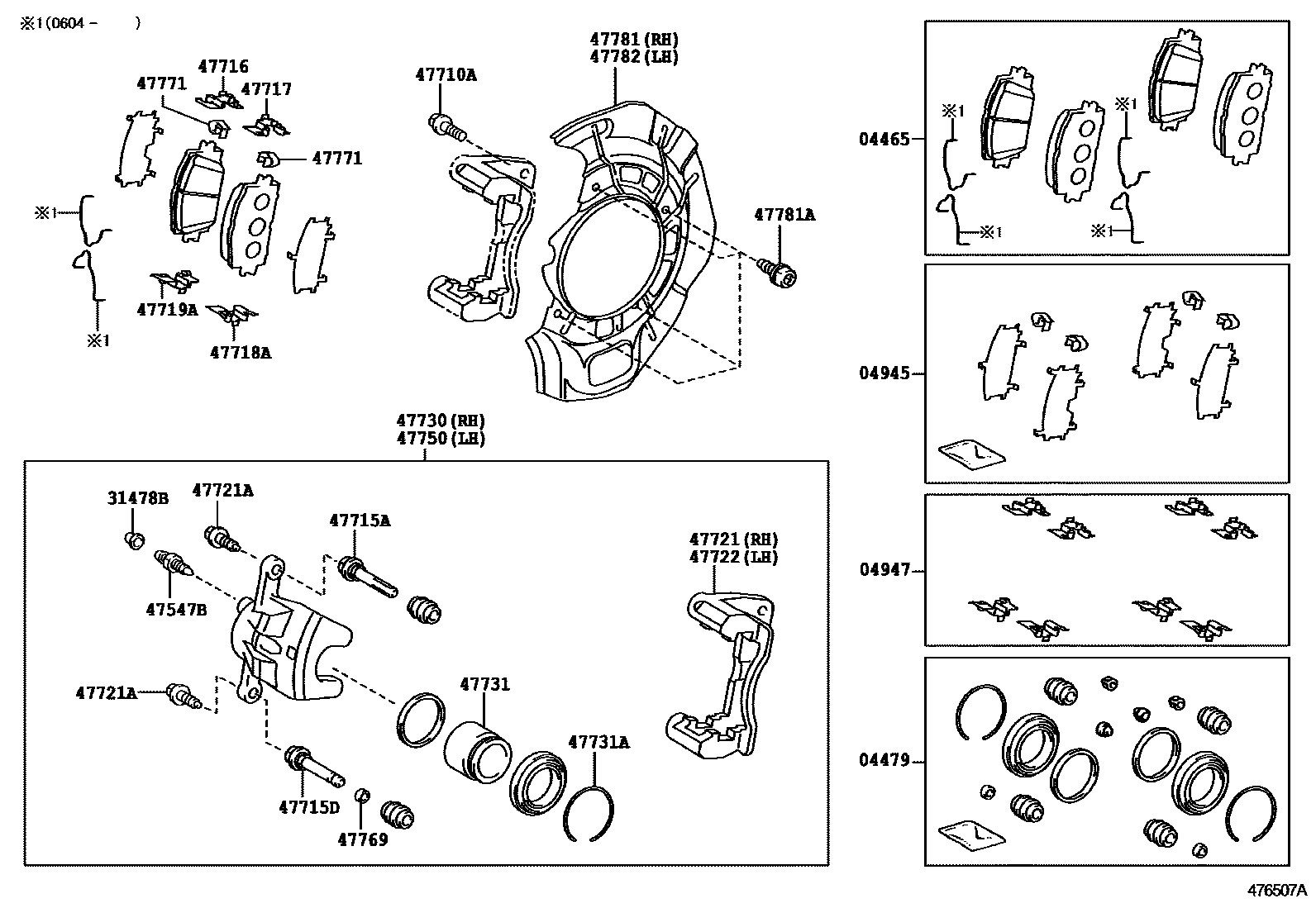

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-33440iACV4#200601-200604

sub04465-33450

main04465-33450iACV4#200604-201108

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33100iACV4#200601-200705

main04478-33130iACV4#200706-201108

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33260iACV4#200601-201108

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33220iACV4#200601-200606

sub04947-33240

main04947-33240iACV4#200606-201108

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iACV4#200601-201108

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iACV4#200601-201108

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iACV4#200601-201108

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iACV4#200601-201108

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-33340iACV4#200601-201108

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-33340iACV4#200601-200606

main47718-33340iACV4#200606-201108

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-33340iACV4#200601-200606

main47719-33340iACV4#200606-201108

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47718-33340iACV4#200601-201108

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47719-33340iACV4#200601-201108

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33340iACV4#200601-201108

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iACV4#200601-201108

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-33340iACV4#200601-201108

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-33340iACV4#200601-201108

47731PISTON, FRONT DISC BRAKE

main47731-33340iACV4#200601-201108

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-76002iACV4#200601-201108

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-33340iACV4#200601-201108

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iACV4#200601-201108

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-53060iACV4#200601-201108

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-33040iACV4#200601-201108

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iACV4#200601-201108

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-33040iACV4#200601-201108

25 parts on this diagram · 2 diagrams in section
