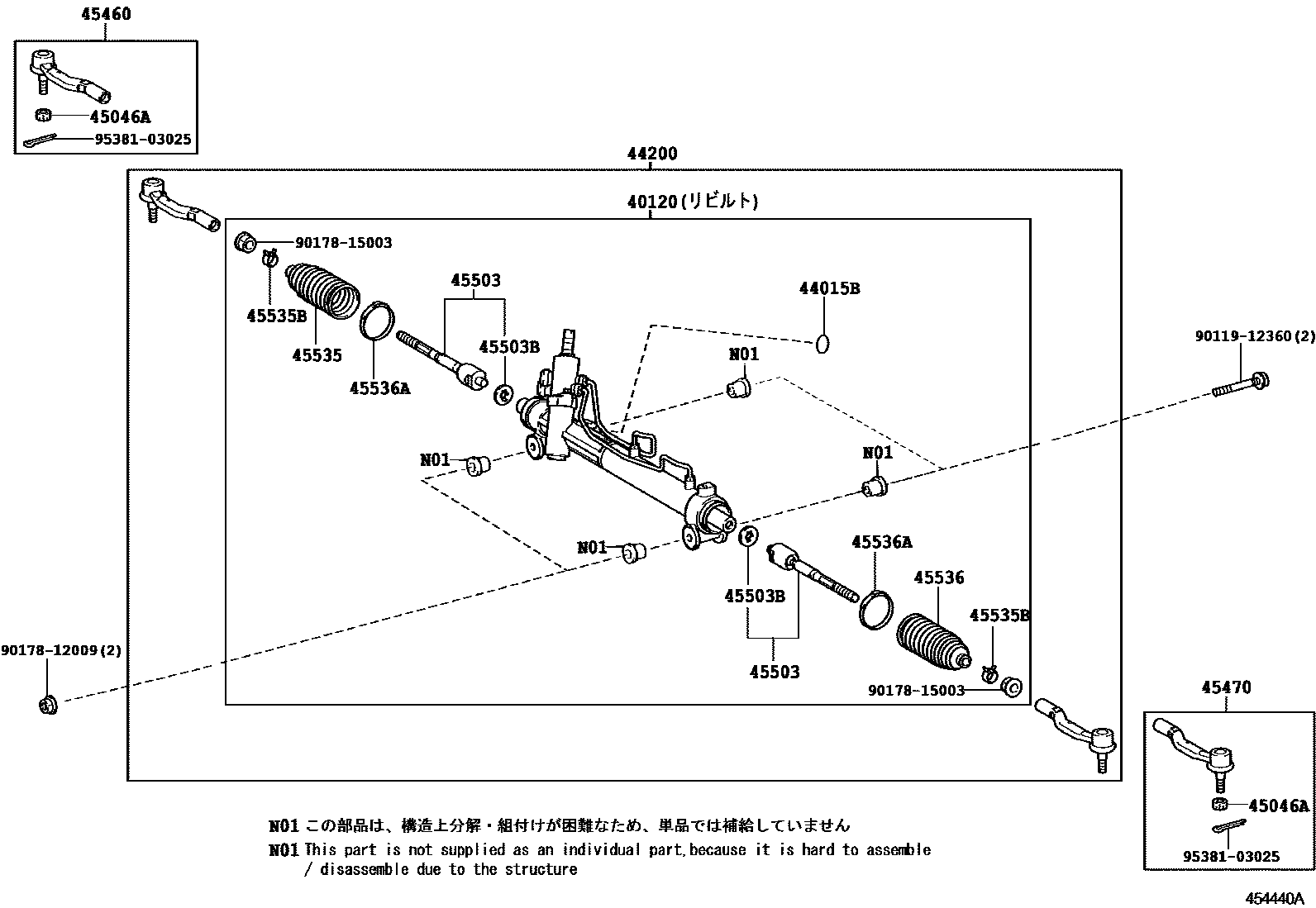

FRONT STEERING GEAR & LINK

0001 1 0002 1

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-33500iACV40200601-200901

main40120-33520iACV45200901-201108

44015BRING, O(FOR BEARING GUIDE NUT)

main90301-29015iACV4#200601-200901

44200LINK ASSY, POWER STEERING

main44200-33500iACV40200601-200901

main44200-33520iACV45200601-200901

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iACV4#200601-200901

45460ROD ASSY, TIE, RH

main45460-39635iACV4#200901-201108

45470ROD ASSY, TIE, LH

main45470-39225iACV4#200901-201108

45503END SUB-ASSY, STEERING RACK

main45503-39275×2iACV40200901-201108

main45503-39285×2iACV45200601-200901

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14009×2iACV4#200601-200901

45535BOOT, STEERING RACK, NO.1

main45535-33050iACV4#200601-200901

45535BCLIP(FOR STEERING RACK BOOT)

main90080-46153×2iACV4#200601-200901

45536BOOT, STEERING RACK, NO.2

main45535-33050iACV4#200601-200901

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-60009×2iACV4#200601-200901

9011912360

main90119-12360

9017812009

main90178-12009

9017815003

main90178-15003

9538103025

main95381-03025

16 parts on this diagram · 2 diagrams in section
