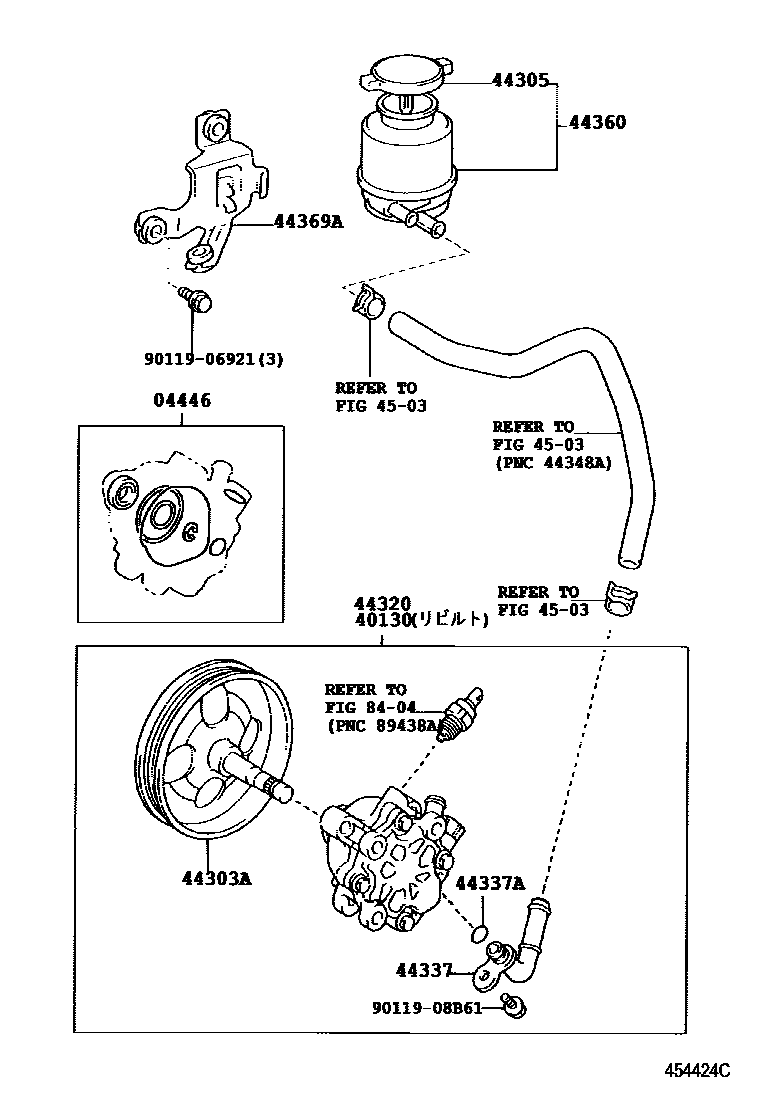

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iACV4#¥970200601-201108

40130PUMP ASSY,VANE REBUILT

main40130-33150iACV4#¥66,500200601-201108

sub44310-33180¥94,600

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-28010iACV4#¥5,400200601-201108

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iACV4#¥1,590200601-200801

sub44305-28060¥1,590

main44305-28060iACV4#¥1,590200802-201108

sub44305-28061¥1,090

44320PUMP ASSY, VANE

main44310-33150iACV4#¥94,600200601-201108

sub44310-33180¥94,600

44337UNION, POWER STEERING SUCTION PORT

main44337-32110iACV4#¥1,430200601-201108

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iACV4#¥140200601-201108

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-33040iACV4#¥10,200200601-201108

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-33020iACV4#¥1,480200601-200809

sub44390-33021¥1,480

main44390-33021iACV4#¥1,480200810-201108

4503

8404

9011906921

main90119-06921¥80

9011908B61

main90119-08B61¥60

13 parts on this diagram · 1 diagram in section
