SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
33525SUPPORT, SHIFT LEVER
33550DBULB, POSITION INDICATOR LAMP
33550ECAP, POSITION INDICATOR LAMP
33563BUTTON, SHIFT LOCK RELEASE
33569AGUIDE, SHIFT LOCK RELEASE BUTTON
33866SPRING, SHIFT LOCK RELEASE
35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
sub35907-33140
sub35907-33140
sub35907-33140
sub35907-33140
35921PLATE, CONTROL POSITION INDICATOR
35953GUIDE, POSITION INDICATOR LIGHT
35970FHOUSING ASSY, POSITION INDICATOR
LT.BROWN,TRIM4#
BROWN,TRIM4#
LT.BROWN,TRIM4#
BROWN,TRIM4#
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8401
9046710203
main90467-10203
9163160814
main91631-60814
9163160828
main91631-60828

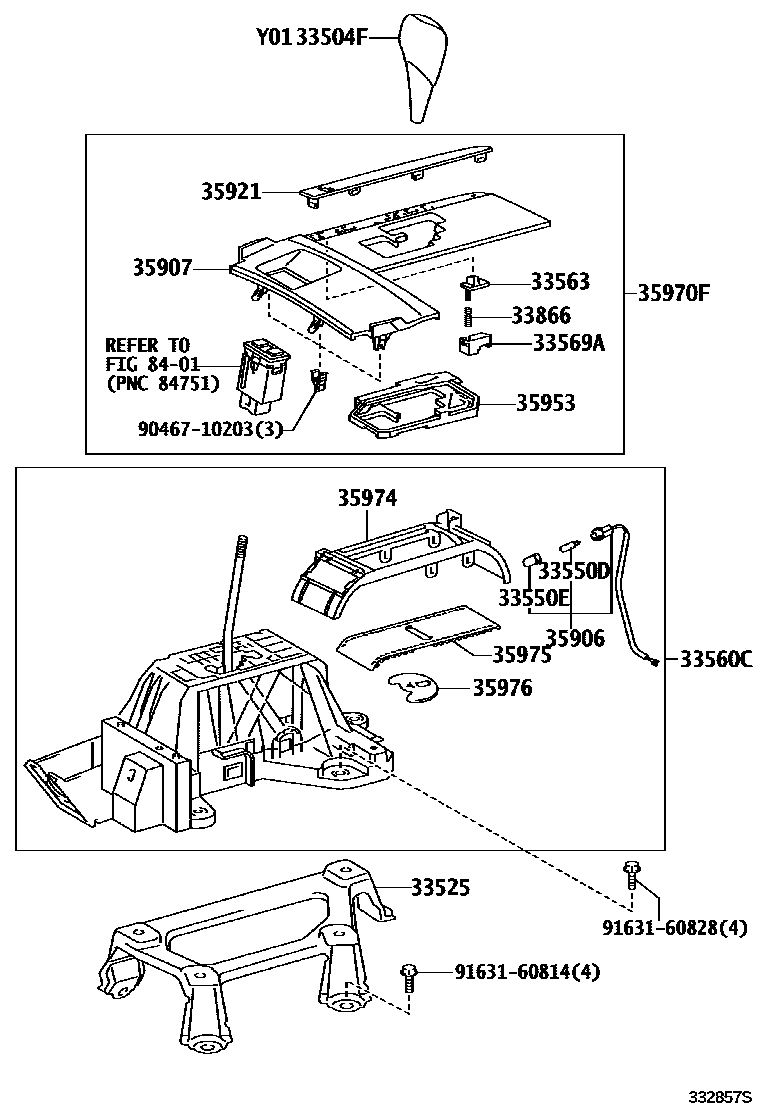

20 parts on this diagram · 2 diagrams in section
