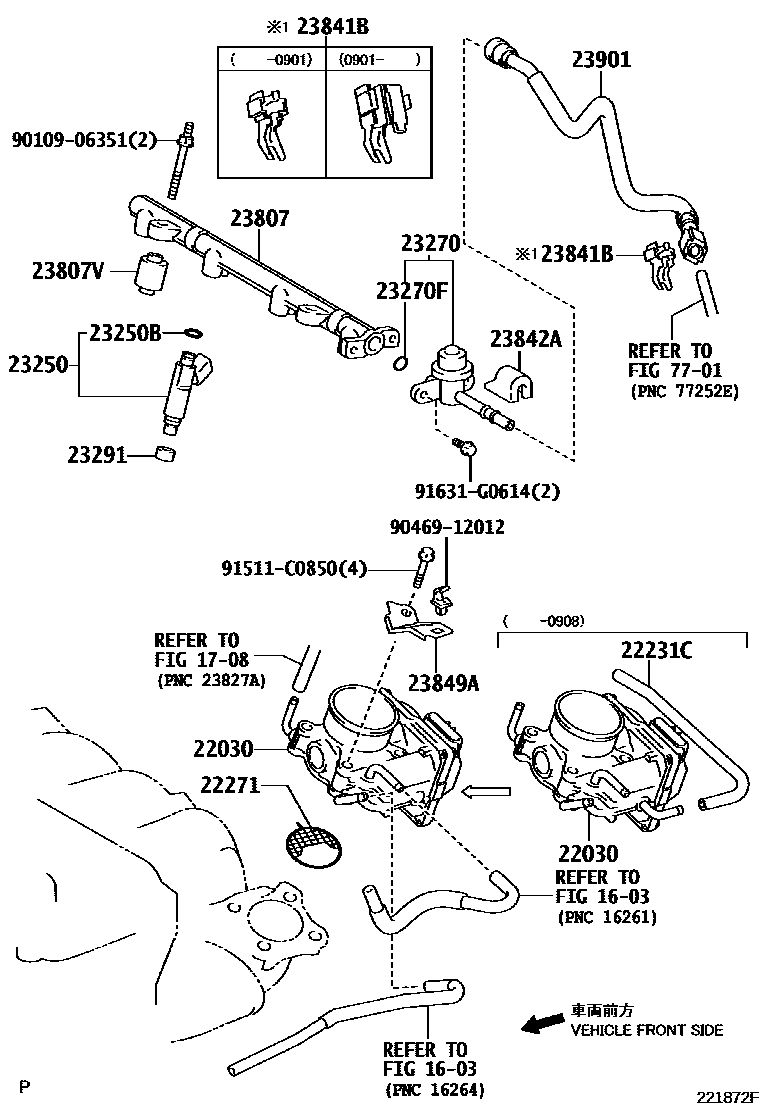

FUEL INJECTION SYSTEM

1603

1708

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-28070i2AZFE..ACV4#¥83,600200601-200907

sub22030-28071¥69,700

main22030-28071i2AZFE..ACV4#¥69,700200908-201108

22231CHOSE, THROTTLE BODY, NO.1

main22231-28060i2AZFE..ACV4#¥770200601-200908

22271GASKET, THROTTLE BODY

main22271-75031i2AZFE..ACV4#¥250200601-201108

23250INJECTOR ASSY, FUEL

main23209-0H060i2AZFE..ACV4#¥12,700200604-201101

main23209-28080i2AZFE..ACV4#¥16,800200604-201101

main23209-28080i2AZFE..ACV4#¥16,800200601-200605

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i2AZFE..ACV4#¥190200601-200607

main90301-07037i2AZFE..ACV4#¥140200607-200901

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28050i2AZFE..ACV4#¥9,100200601-200702

sub23270-28051¥9,100

main23270-28051i2AZFE..ACV4#¥9,100200702-200801

sub23270-28052¥9,200

main23270-28052i2AZFE..ACV4#¥9,200200801-201108

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2AZFE..ACV4#¥140200601-201108

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i2AZFE..ACV4#¥340200601-200901

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-28031i2AZFE..ACV4#¥9,400200601-200901

sub23814-28060¥7,800

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08053i2AZFE..ACV4#¥180200601-200901

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i2AZFE..ACV4#¥220200607-200901

main23841-28010i2AZFE..ACV4#¥370200601-200606

main23841-31070i2AZFE..ACV4#¥400200901

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2AZFE..ACV4#¥500200601-200901

23849ASUPPORT, FUEL PIPE

main23849-28050i2AZFE..ACV4#¥300200601-201108

23901TUBE SUB-ASSY, FUEL

main23901-28320i2AZFE..ACV40¥6,100200601-200901

main23901-28350i2AZFE..ACV45¥6,200200601-200901

7701

9010906351

main90109-06351¥130

9046912012

main90469-12012¥210

91511C0850

main91511-C0850¥110

91631G0614

main91631-G0614¥60

21 parts on this diagram · 1 diagram in section
