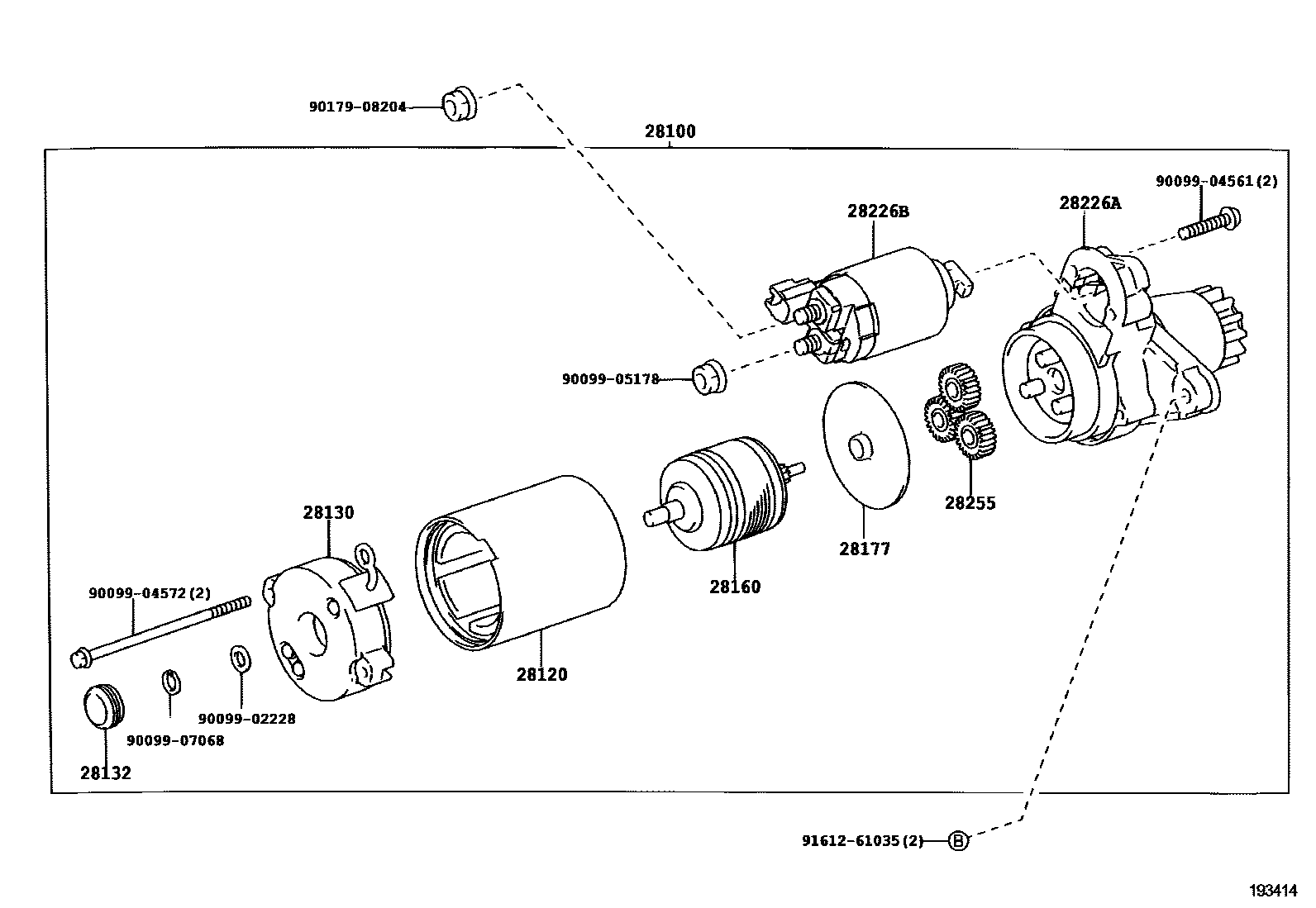

STARTER

0001 112V 1.7KW 0002 112V 1.7KW

28100STARTER ASSY

main28100-20020i2AZFE..ACV4#200601-200901

sub28100-20021

main28100-28070i2AZFE..ACV4#200901-200903

sub28100-28072

main28100-28071i2AZFE..ACV4#200904-200910

sub28100-28072

main28100-28072i2AZFE..ACV4#200911-201108

28120YOKE ASSY, STARTER

main28120-28040i2AZFE..ACV4#200601-200808

sub28120-28060

main28120-28060i2AZFE..ACV4#200808-201108

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-20020i2AZFE..ACV4#200601-201108

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28132-28040i2AZFE..ACV4#200601-200901

28160ARMATURE ASSY, STARTER

main28160-28040i2AZFE..ACV4#200601-201108

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2AZFE..ACV4#200601-201108

28226ASTARTER KIT, MOTOR TERMINAL

main28226-28041i2AZFE..ACV4#200601-200901

28226BSTARTER KIT, REPAIR SERVICE

main28226-28051i2AZFE..ACV4#200601-200901

main28226-28060i2AZFE..ACV4#200901-201108

28255GEAR, PLANET

main28255-20020i2AZFE..ACV4#200601-201108

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

9017908204

main90179-08204

9161261035

main91612-61035

16 parts on this diagram · 2 diagrams in section
