MANIFOLD
17111MANIFOLD, INTAKE
sub17120-28141
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17117INSULATOR, INTAKE PIPE
17118STAY, MANIFOLD
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17136INSULATOR, INTAKE MANIFOLD, NO.2
17139STAY, MANIFOLD, NO.2
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
sub17177-28031
2211
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25586INSULATOR, MANIFOLD CONVERTER, NO.1
9011610058
main90116-10058
90119C0126
main90119-C0126
9017908228
main90179-08228
9017910165
main90179-10165
9162160822
main91621-60822
9164281025
main91642-81025
91651B0814
main91651-B0814
9167180835
main91671-80835
91673K0612
main91673-K0612
9211281022
main92112-81022
9415080801
main94150-80801

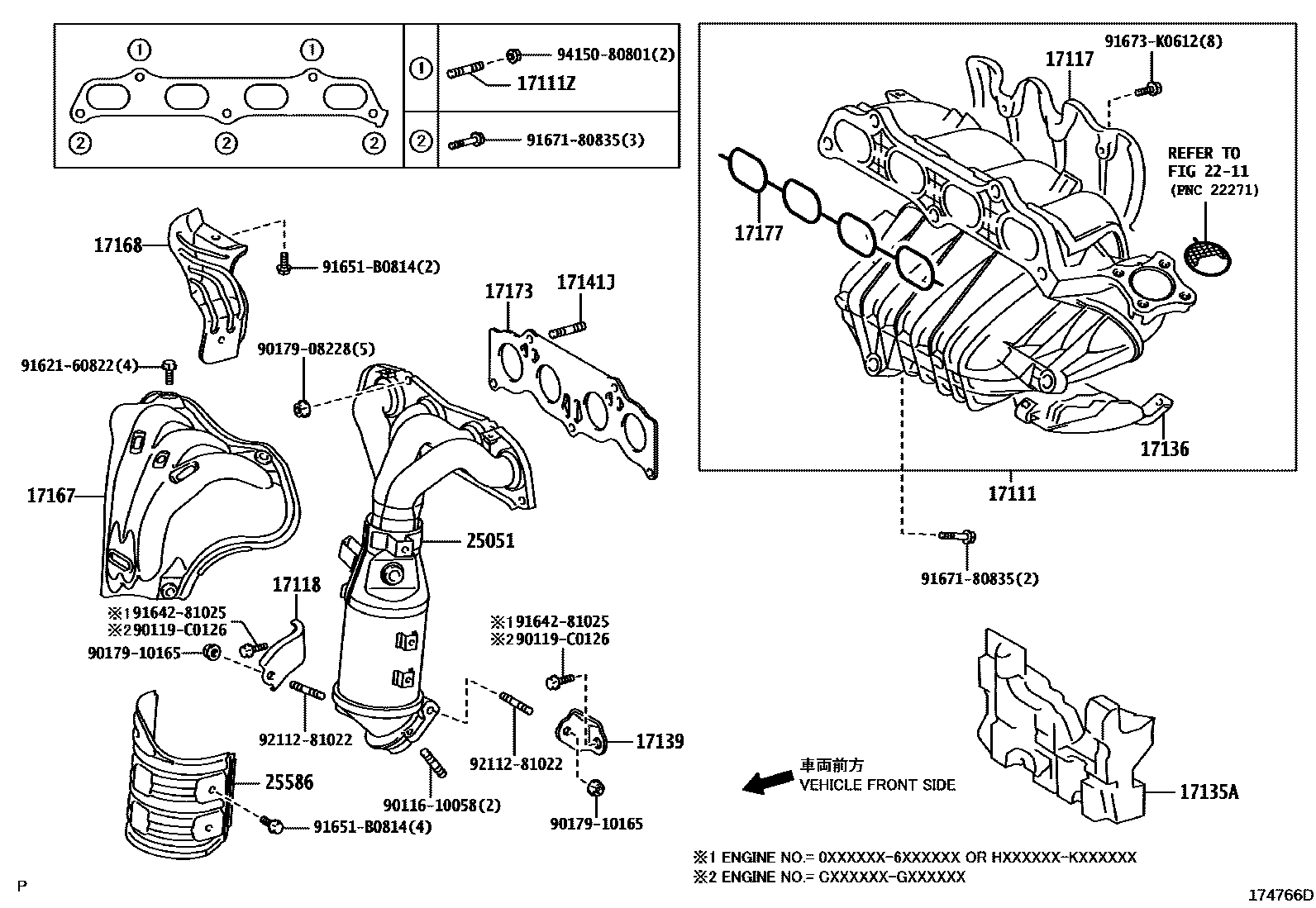

26 parts on this diagram · 1 diagram in section
