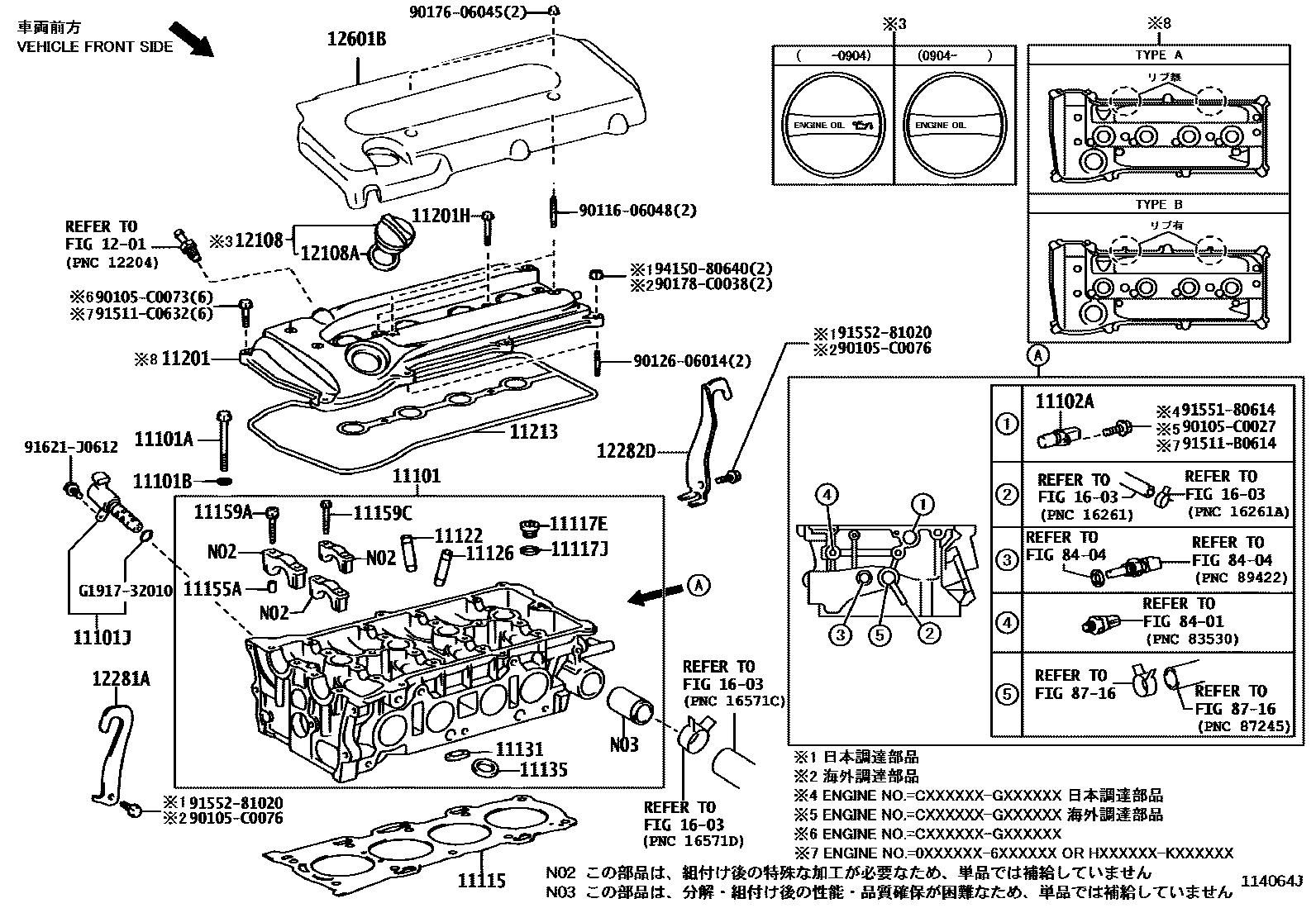

CYLINDER HEAD

11101HEAD SUB-ASSY, CYLINDER

main11101-0H011i2AZFE..ACV4#201101-201108

main11101-0H030i2AZFE..ACV4#200601-200605

main11101-0H040i2AZFE..ACV4#¥156,000200605-201101

main11101-28012i2AZFE..ACV4#¥130,000201101-201108

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02162i2AZFE..ACV4#¥310200601-201108

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-11034i2AZFE..ACV4#¥110200601-201108

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-28020i2AZFE..ACV4#¥8,700200601-201108

sub15330-28010¥8,700

11102ASENSOR, CAMSHAFT POSITION

main90919-05026i2AZFE..ACV4#¥5,100200601-201108

11115GASKET, CYLINDER HEAD

main11115-28040i2AZFE..ACV4#¥7,100200601-201108

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-27006i2AZFE..ACV4#¥320200601-201108

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-27005i2AZFE..ACV4#¥70200601-201108

11122BUSH, INTAKE VALVE GUIDE

main11122-28010i2AZFE..ACV4#¥750200601-201108

main11123-28010i2AZFE..ACV4#¥750200601-201108

11126BUSH, EXHAUST VALVE GUIDE

main11126-20020i2AZFE..ACV4#¥480200601-201108

main11127-20020i2AZFE..ACV4#¥480200601-201108

11131SEAT, INTAKE VALVE

main11131-0H010i2AZFE..ACV4#¥1,220200604-201101

sub11131-28030¥1,240

main11131-0H020i2AZFE..ACV4#201101-201108

main11131-28021i2AZFE..ACV4#¥1,240201101-201108

main11131-28030i2AZFE..ACV4#¥1,240200604-201101

main11131-28030i2AZFE..ACV4#¥1,240200601-200605

main11132-0H020i2AZFE..ACV4#201101-201108

main11132-28021i2AZFE..ACV4#¥1,240201101-201108

main11132-28030i2AZFE..ACV4#¥1,240200601-201101

11135SEAT, EXHAUST VALVE

main11135-0H010i2AZFE..ACV4#¥1,220200604-201101

sub11135-28050¥1,240

main11135-0H020i2AZFE..ACV4#201101-201108

main11135-28040i2AZFE..ACV4#¥1,030201101-201108

main11135-28050i2AZFE..ACV4#¥1,240200604-201101

main11135-28050i2AZFE..ACV4#¥1,240200601-200605

main11136-0H020i2AZFE..ACV4#201101-201108

main11136-28040i2AZFE..ACV4#¥1,030201101-201108

main11136-28050i2AZFE..ACV4#¥1,240200601-201101

11155APIN, RING W/HEAD

main90253-11021i2AZFE..ACV4#¥120200601-201108

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90080-10210i2AZFE..ACV4#¥170201101-201108

main90105-08353i2AZFE..ACV4#¥100200601-201108

main90105-C0069i2AZFE..ACV4#200604-200901

main90105-C0069i2AZFE..ACV4#200901-201101

11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90080-11292i2AZFE..ACV4#201101-201108

main90119-06902i2AZFE..ACV4#¥90200601-201108

main90119-C0121i2AZFE..ACV4#¥110200901-201101

main90119-C0121i2AZFE..ACV4#¥110200604-200901

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-0H060i2AZFE..ACV4#¥22,600200604-201101

sub11201-0H061¥22,600

main11201-28031i2AZFE..ACV4#¥22,600200601-201103

sub11201-28032¥22,600

main11201-28032i2AZFE..ACV4#¥22,600201103-201108

sub11201-28033¥18,800

11201HBOLT(FOR CYLINDER HEAD COVER)

main90119-06903i2AZFE..ACV4#¥80201101-201108

main90119-06903i2AZFE..ACV4#¥80200601-200605

main90119-C0122i2AZFE..ACV4#200604-200901

main90119-C0122i2AZFE..ACV4#200901-201101

11213GASKET, CYLINDER HEAD COVER

main11213-0H040i2AZFE..ACV4#¥1,620200601-201101

main11213-28021i2AZFE..ACV4#¥1,350200601-201101

main11213-28021i2AZFE..ACV4#¥1,350201101-201108

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-28010i2AZFE..ACV4#¥640200601-200904

main12180-38010i2AZFE..ACV4#¥640200904-201108

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i2AZFE..ACV4#¥120200904-201108

main90430-37004i2AZFE..ACV4#¥130200601-200904

12281AHANGER, ENGINE, NO.1

main12281-0H010i2AZFE..ACV4#¥1,210200604-201108

main12281-28010i2AZFE..ACV4#¥980200601-200605

main12281-28010i2AZFE..ACV4#¥980200604-201108

12282DHANGER, ENGINE, NO.2

main12282-0H010i2AZFE..ACV4#¥2,030200604-201108

main12282-28010i2AZFE..ACV4#¥1,550200604-201108

main12282-28010i2AZFE..ACV4#¥1,550200601-200605

12601BCOVER SUB-ASSY, ENGINE, NO.1

main12601-28150i2AZFE..ACV4#¥17,600200601-201108

sub12601-28906¥17,600

1603

8401

8404

8716

90105C0027

main90105-C0027

90105C0073

main90105-C0073

90105C0076

main90105-C0076

9011606048

main90116-06048¥80

9012606014

main90126-06014¥190

9017606045

main90176-06045¥80

90178C0038

main90178-C0038¥110

91511B0614

main91511-B0614¥90

91511C0632

main91511-C0632¥110

9155180614

main91551-80614¥60

9155281020

main91552-81020¥100

91621J0612

main91621-J0612¥70

9415080640

main94150-80640¥220

G191732010

mainG1917-32010¥180

42 parts on this diagram · 1 diagram in section
