STANDARD TOOL

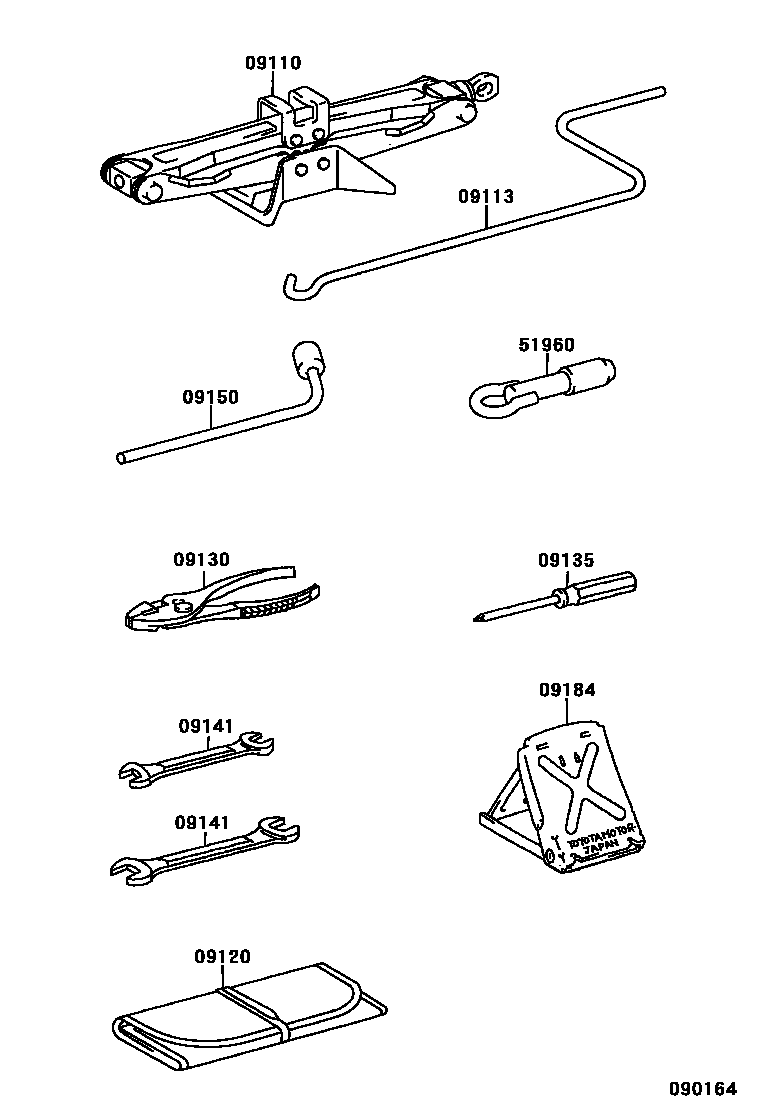

Parts diagram

09110JACK ASSY

main09111-33030i201010-201108

main09111-50051i200601-201009

09113HANDLE, JACK

main09113-33010i200601-201108

09120BAG, TOOL

main09120-16030i200601-200901

main09120-16030i200901-201108

09130PLIERS

main99913-11500i200601-200901

main99913-11500i200901-201108

09135DRIVER, SCREW

main99915-10700i200901-201108

main99915-10700i200601-200901

09141SPANNER

main99914-10810i200601-200901

main99914-10810i200901-201108

main99914-11214i200601-200901

main99914-11214i200901-201108

09150WRENCH, HUB NUT BOX

main09150-40010i200601-201108

09184STOPPER, WHEEL

main09184-00010i200601-200901

main09184-00010i200901-201108

51960HOOK ASSY, FRONT

main51960-33010i200601-201108

9 parts on this diagram · 1 diagram in section
