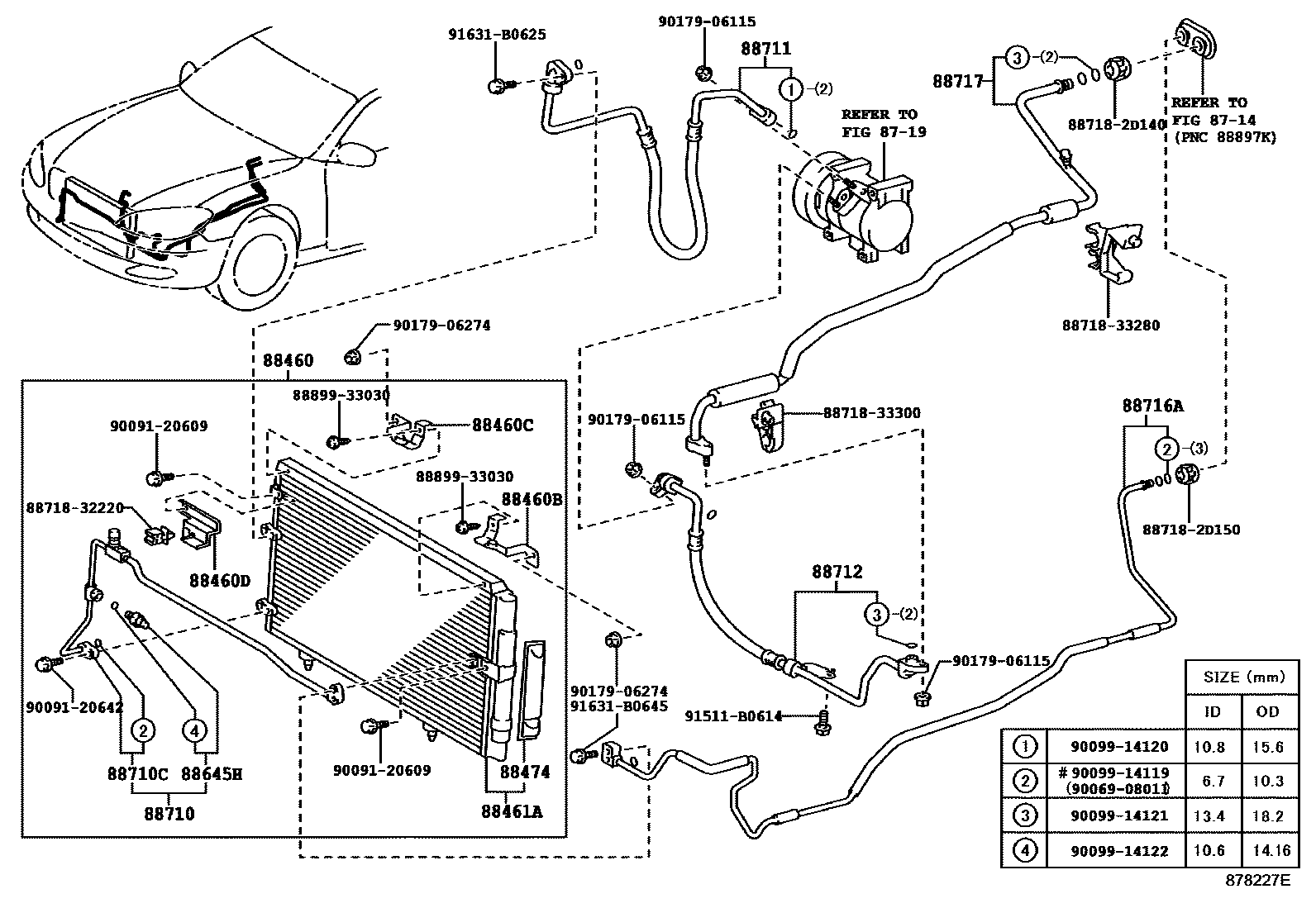

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714

8719

88460CONDENSER ASSY, COOLER

main88460-0W020iACV3#200109-200312

main88460-0W040iACV3#200312-200406

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-06120iACV3#200109-200601

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-06140iACV3#200109-200601

88460DBRACKET, COOLER CONDENSER, NO.3

main88688-33390iACV3#200109-200601

88461ACORE, COOLER CONDENSER

main88461-06070iACV3#200109-200312

sub88460-0W040

88474DRYER, COOLER

main88474-47010iACV3#200109-200406

88645HSWITCH, PRESSURE NO.1

main88645-08010iACV3#200109-200406

88710TUBE ASSY, AIR CONDITIONER

main88710-33300iACV3#200109-200406

88710CTUBE ASSY, AIR CONDITIONER

main88716-33390iACV3#200109-200406

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-33170iACV3#200109-200406

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-33280iACV30200109-200406

main88704-33300iACV35200109-200406

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-33370iACV3#200109-200406

88717PIPE, COOLER REFRIGERANT SUCTION, NO.1

main88710-33251iACV3#200109-200406

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

8871833280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33280

8871833300PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33300

8889933030COVER, EVAPORATOR

main88899-33030

9006908011

main90069-08011

9009120609

main90091-20609

9009120642

main90091-20642

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

9017906115

main90179-06115

9017906274

main90179-06274

91511B0614

main91511-B0614

91631B0625

main91631-B0625

91631B0645

main91631-B0645

33 parts on this diagram · 2 diagrams in section
