HEADLAMP

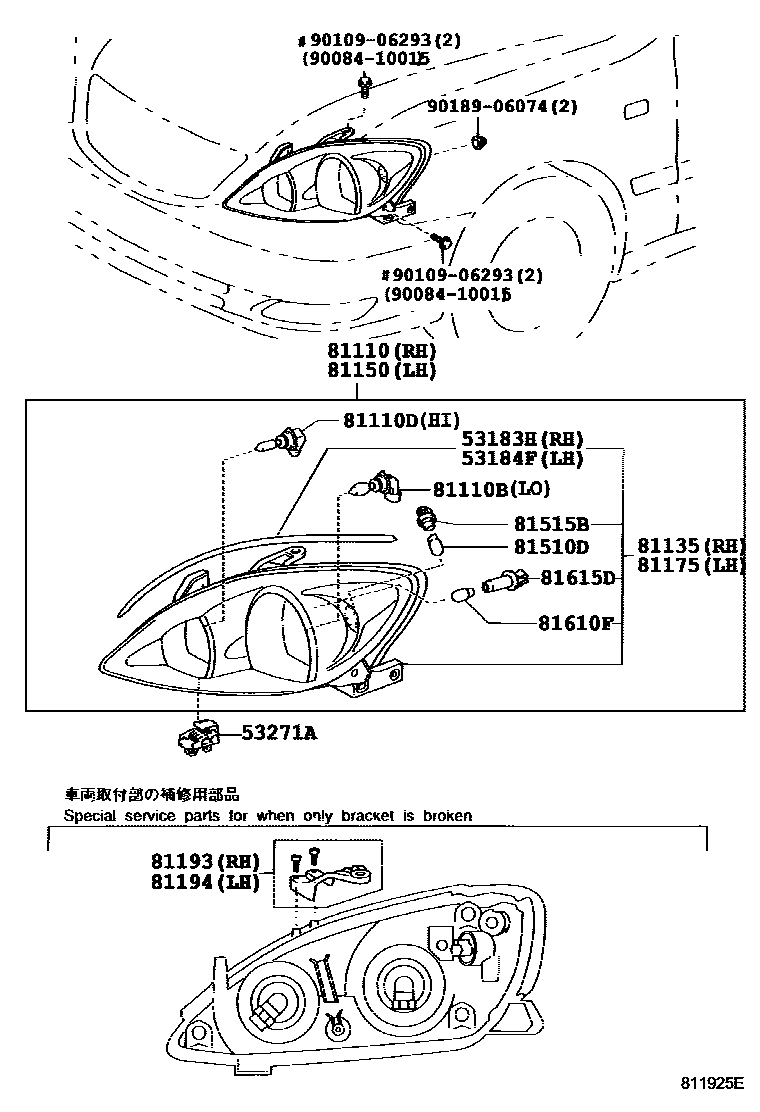

Parts diagram

53183HSEAL, HEADLAMP COVER, RH

main53183-33090i200109-200406

53184FSEAL, HEADLAMP COVER, LH

main53184-33090i200109-200406

53271ABRACKET, HEADLAMP MOUNTING

main53271-44010i200109-200406

81110HEADLAMP ASSY, RH

main81110-33410i200109-200210

main81110-33411i200210-200406

main81110-33420i200109-200210

main81110-33421i200210-200406

main81110-33500i200406-200601

main81110-33510i200406-200601

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13062i200109-200406

main90981-13063i200406-200601

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041i200109-200601

main90981-13046i200307-200406

81135UNIT ASSY, HEADLAMP, RH

main81130-33410i200109-200406

main81130-33420i200109-200406

main81130-33500i200406

main81130-33510i200406

81150HEADLAMP ASSY, LH

main81150-33400i200406-200601

main81150-33410i200109-200210

main81150-33411i200210-200406

main81150-33420i200109-200210

main81150-33421i200210-200406

main81150-33500i200406-200601

81175UNIT ASSY, HEADLAMP, LH

main81170-33400i200406

main81170-33410i200109-200406

main81170-33420i200109-200406

main81170-33500i200406

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-33020i200109-200406

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-33020i200109-200406

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043i200109-200406

main90981-15021i200406-200601

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028i200406

main90075-99080i200109-200406

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050i200109-200406

81615DSOCKET, CLEARANCE LAMP

main90075-60046i200109-200406

9008410015

main90084-10015

9010906293

main90109-06293

9018906074

main90189-06074

18 parts on this diagram · 2 diagrams in section
