SIDE MOULDING

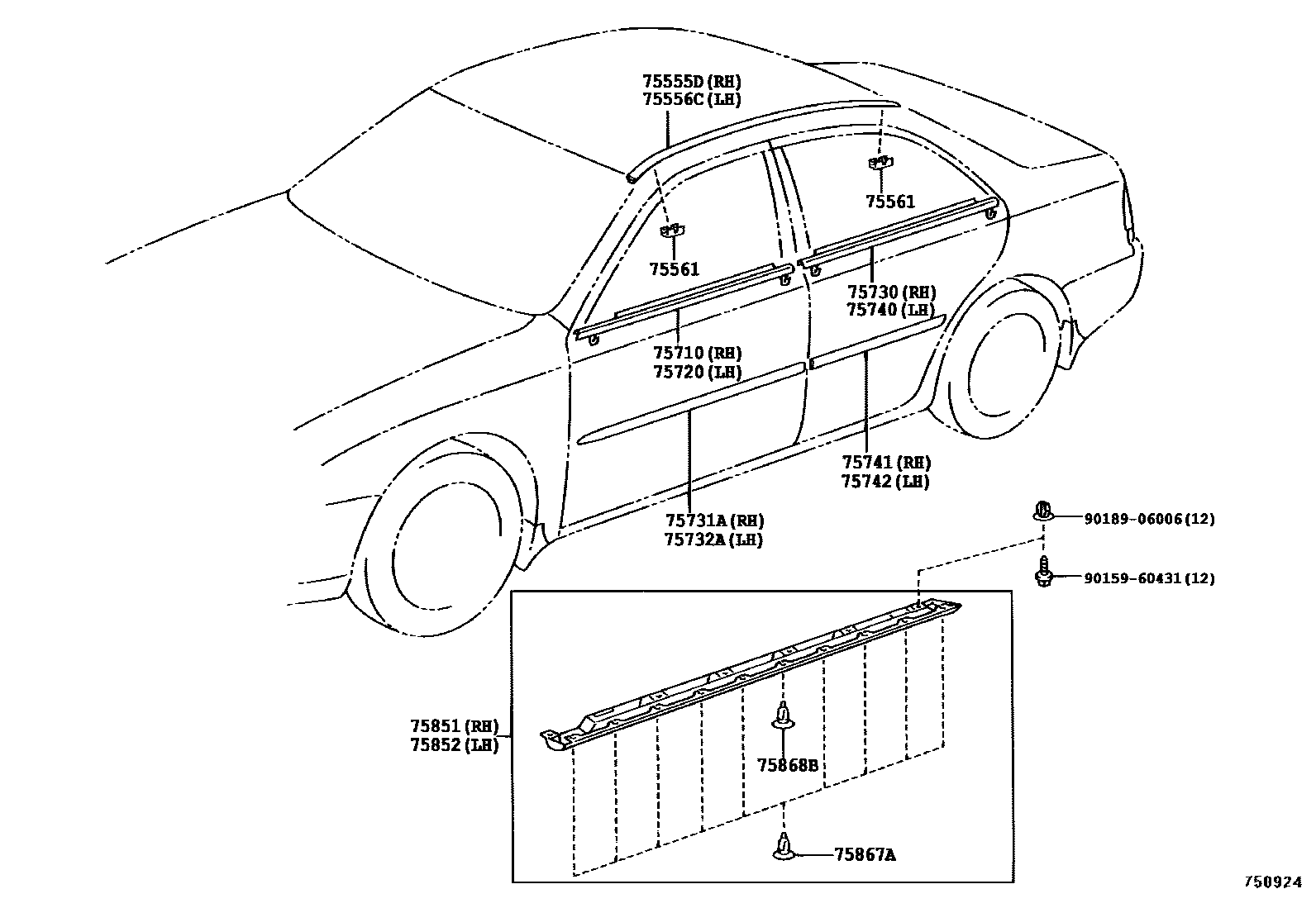

Parts diagram
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
main75555-33010i200109-200306
sub75555-33011
main75555-33011i200306-200406
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
main75556-33010i200109-200306
sub75556-33011
main75556-33011i200306-200406
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
main75561-33030i200109-200601
main75561-33050i200209-200211
sub75561-33030
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-33080i200109-200406
main75710-33090i200109-200307
sub75710-33080
75720MOULDING ASSY, FRONT DOOR BELT, LH
main75720-33080i200109-200406
main75720-33090i200109-200307
sub75720-33080
75730MOULDING ASSY, REAR DOOR BELT, RH
main75730-33080i200109-200406
main75730-33090i200109-200307
sub75730-33080
75731AMOULDING, FRONT DOOR, OUTSIDE RH
main75731-33190-A0i200109-200601
SUPER WHITE 2,040
sub75731-33190
main75731-33190-A1i200109-200601
WHITE PEARL CS.,062
sub75731-33190
main75731-33190-B0i200109-200601
SILVER ME.,1C8
sub75731-33190
main75731-33190-B1i200109-200406
GRAY M.M.,1E3
sub75731-33190
main75731-33190-C0i200109-200601
BLACK,202
sub75731-33190
main75731-33190-D1i200109-200601
DK. RED M.M.,3Q3
sub75731-33190
main75731-33190-E0i200406-200601
BEIGE M. M.,4Q2
sub75731-33190
main75731-33190-J0i200109-200406
DK.BLUE MC.,8Q0
sub75731-33190
main75731-33190-J3i200406-200601
DK.BLUE M.M.,8P4
sub75731-33190
75732AMOULDING, FRONT DOOR, OUTSIDE LH
main75732-33190-A0i200109-200601
SUPER WHITE 2,040
sub75732-33190
main75732-33190-A1i200109-200601
WHITE PEARL CS.,062
sub75732-33190
main75732-33190-B0i200109-200601
SILVER ME.,1C8
sub75732-33190
main75732-33190-B1i200109-200406
GRAY M.M.,1E3
sub75732-33190
main75732-33190-C0i200109-200601
BLACK,202
sub75732-33190
main75732-33190-D1i200109-200601
DK. RED M.M.,3Q3
sub75732-33190
main75732-33190-E0i200406-200601
BEIGE M. M.,4Q2
sub75732-33190
main75732-33190-J0i200109-200406
DK.BLUE MC.,8Q0
sub75732-33190
main75732-33190-J3i200406-200601
DK.BLUE M.M.,8P4
sub75732-33190
75740MOULDING ASSY, REAR DOOR BELT, LH
main75740-33080i200109-200406
main75740-33090i200109-200307
sub75740-33080
75741MOULDING, REAR DOOR, OUTSIDE RH
main75741-33180-A0i200109-200601
SUPER WHITE 2,040
sub75741-33180
main75741-33180-A1i200109-200601
WHITE PEARL CS.,062
sub75741-33180
main75741-33180-B0i200109-200601
SILVER ME.,1C8
sub75741-33180
main75741-33180-B1i200109-200406
GRAY M.M.,1E3
sub75741-33180
main75741-33180-C0i200109-200601
BLACK,202
sub75741-33180
main75741-33180-D1i200109-200601
DK. RED M.M.,3Q3
sub75741-33180
main75741-33180-E0i200406-200601
BEIGE M. M.,4Q2
sub75741-33180
main75741-33180-J0i200109-200406
DK.BLUE MC.,8Q0
sub75741-33180
main75741-33180-J3i200406-200601
DK.BLUE M.M.,8P4
sub75741-33180
75742MOULDING, REAR DOOR, OUTSIDE LH
main75742-33180-A0i200109-200601
SUPER WHITE 2,040
sub75742-33180
main75742-33180-A1i200109-200601
WHITE PEARL CS.,062
sub75742-33180
main75742-33180-B0i200109-200601
SILVER ME.,1C8
sub75742-33180
main75742-33180-B1i200109-200406
GRAY M.M.,1E3
sub75742-33180
main75742-33180-C0i200109-200601
BLACK,202
sub75742-33180
main75742-33180-D1i200109-200601
DK. RED M.M.,3Q3
sub75742-33180
main75742-33180-E0i200406-200601
BEIGE M. M.,4Q2
sub75742-33180
main75742-33180-J0i200109-200406
DK.BLUE MC.,8Q0
sub75742-33180
main75742-33180-J3i200406-200601
DK.BLUE M.M.,8P4
sub75742-33180
75851MOULDING, ROCKER PANEL, RH
main75851-33050i200109-200406
75852MOULDING, ROCKER PANEL, LH
main75852-33050i200109-200406
75867ACLIP, ROCKER PANEL MOULDING
main75867-33030i200109-200406
75868BCLIP, ROCKER PANEL MOULDING, NO.2
main75868-33020i200109-200406
9015960431
main90159-60431
9018906006
main90189-06006

17 parts on this diagram · 1 diagram in section
