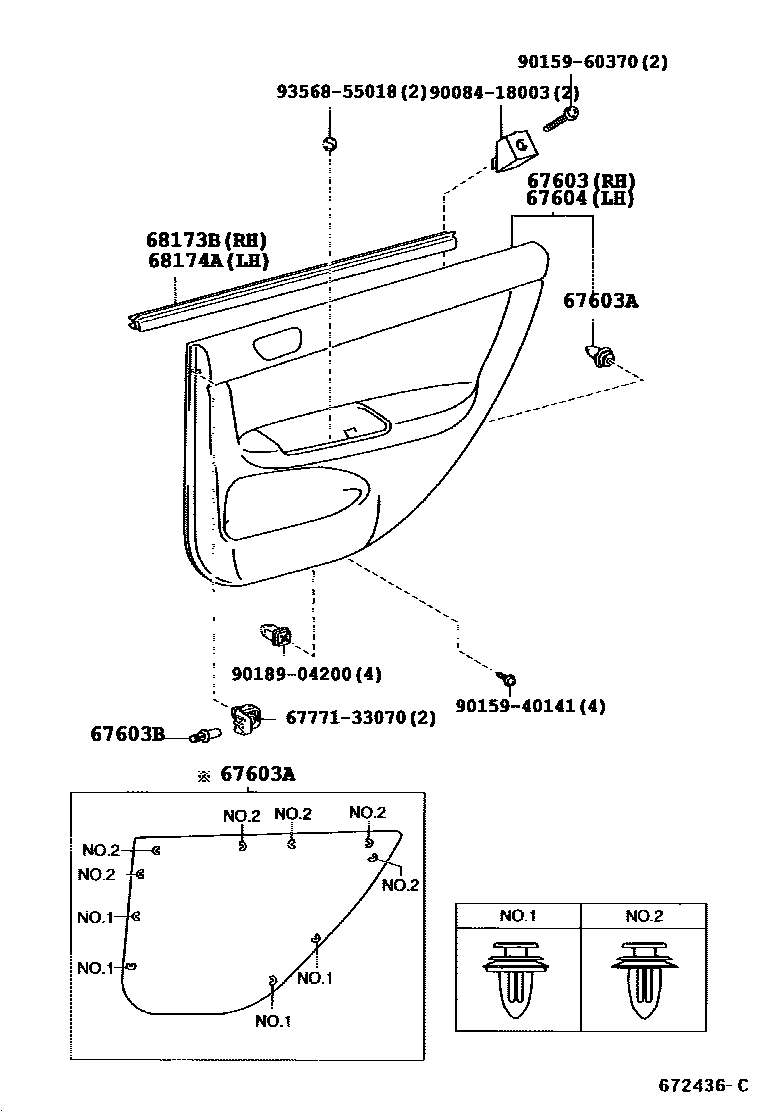

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-33640-B0iACV30..TOU200109-200406

DK.GRAY,TRIM1#

main67630-33640-B0iACV30..TOU200406

DK.GRAY,TRIM9#

main67630-33660-E0iACV3#..24G200109-200406

SANDAL WOOD,TRIM4#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main90467-09206iACV3#200109-200406

main90467-10161iACV3#200109-200406

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main90467-07066-E9iACV3#..24G200109-200406

SANDAL WOOD,TRIM4#

sub90467-07066

main90467-07066-P6iACV30..TOU200406

DK.GRAY,TRIM9#

sub90467-07066

main90467-07066-P6iACV30..TOU200109-200406

DK.GRAY,TRIM1#

sub90467-07066

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-33640-B0iACV30..TOU200406

DK.GRAY,TRIM9#

main67640-33640-B0iACV30..TOU200109-200406

DK.GRAY,TRIM1#

main67640-33660-E0iACV3#..24G200109-200406

SANDAL WOOD,TRIM4#

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-33040iACV3#200109-200307

sub68173-33041

main68173-33041iACV3#200307-200406

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-33050iACV3#200109-200307

sub68174-33051

main68174-33051iACV3#200307-200406

6777133070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-33070

9008418003

main90084-18003

9015940141

main90159-40141

9015960370

main90159-60370

9018904200

main90189-04200

9356855018

main93568-55018

12 parts on this diagram · 2 diagrams in section
