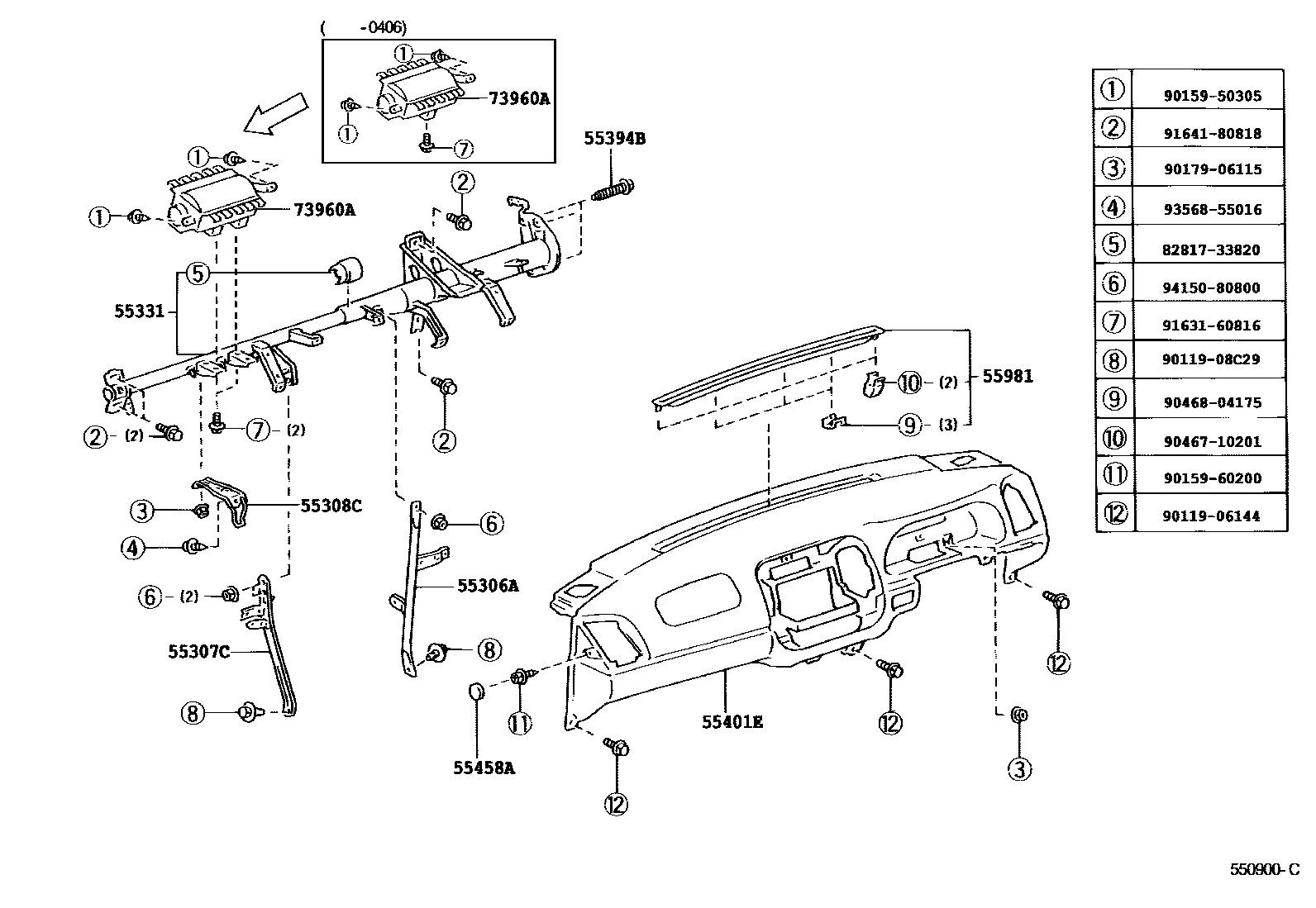

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-33070iACV3#¥4,210200109-200406

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-33130iACV3#¥1,670200109-200406

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-33100iACV3#¥1,330200109-200406

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-33190iACV3#¥21,900200109-200406

main55330-33270iACV3#¥21,900200406

55394BBOLT, INSTRUMENT PANEL

main55394-33010iACV3#¥200200109-200406

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-33130-B1iACV30..TOU200109-200406

DK.GRAY,TRIM1#

main55401-33130-B1iACV30..TOU200406

DK.GRAY,TRIM9#

main55401-33130-E1iACV3#..24G200109-200406

SANDAL WOOD,TRIM4#

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-33090-B1iACV30..TOU200109-200406

DK.GRAY,TRIM1#

sub55458-33090¥160

main55458-33090-B1iACV30..TOU200406

DK.GRAY,TRIM9#

sub55458-33090¥160

main55458-33090-E0iACV3#..24G200109-200406

SANDAL WOOD,TRIM4#

sub55458-33090¥160

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-33100iACV3#¥3,400200109-200406

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-33020iACV3#¥120,000200109-200406

main73960-33070iACV3#¥120,000200406

8281733820PROTECTOR, WIRING HARNESS, NO.1

main82817-33820¥390

9011906144

main90119-06144¥80

9011908C29

main90119-08C29¥80

9015950305

main90159-50305¥120

9015960200

main90159-60200¥100

9017906115

main90179-06115¥120

9046710201

main90467-10201¥80

9046804175

main90468-04175¥40

9163160816

main91631-60816¥160

9164180818

main91641-80818¥80

9356855016

main93568-55016¥70

9415080800

main94150-80800¥90

21 parts on this diagram · 4 diagrams in section
