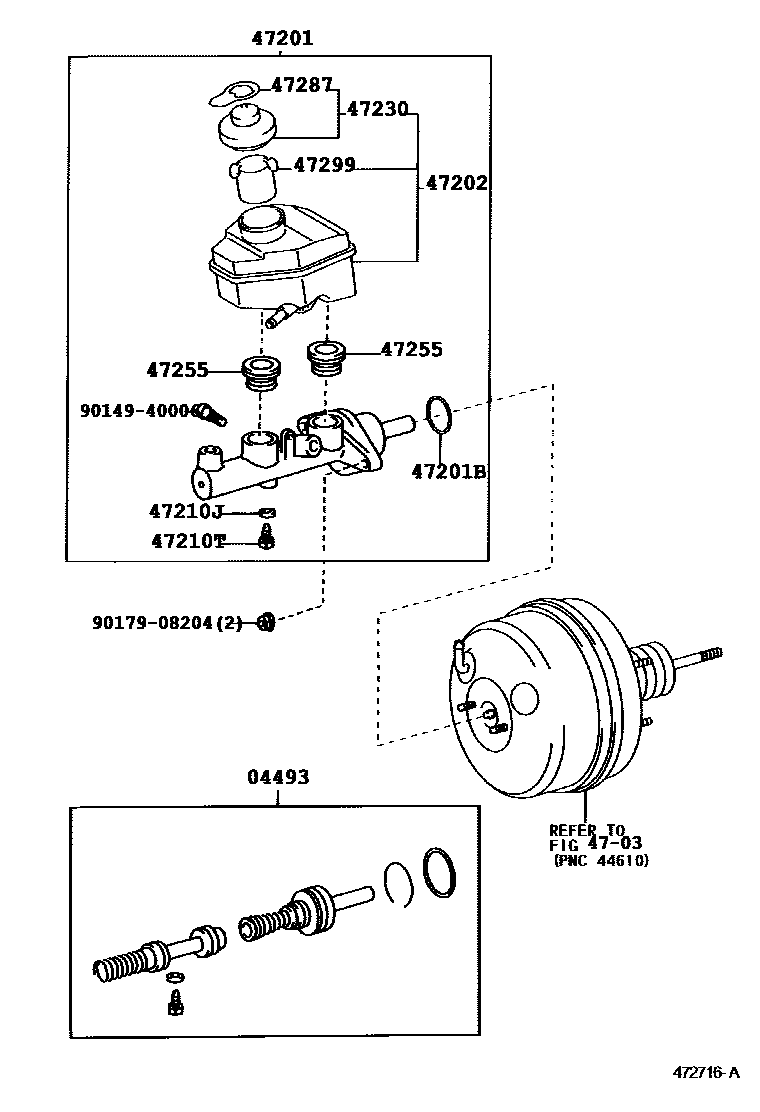

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-33110iACV3#200109-200406

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-33370iACV3#200109-200406

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iACV3#200109-200406

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-33160iACV3#200109-200406

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iACV3#200112-200406

main90430-06104iACV3#200109-200112

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iACV3#200109-200406

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iACV3#200109-200406

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iACV3#200109-200406

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iACV3#200109-200406

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iACV3#200109-200406

9014940006

main90149-40006

9017908204

main90179-08204

13 parts on this diagram · 1 diagram in section
