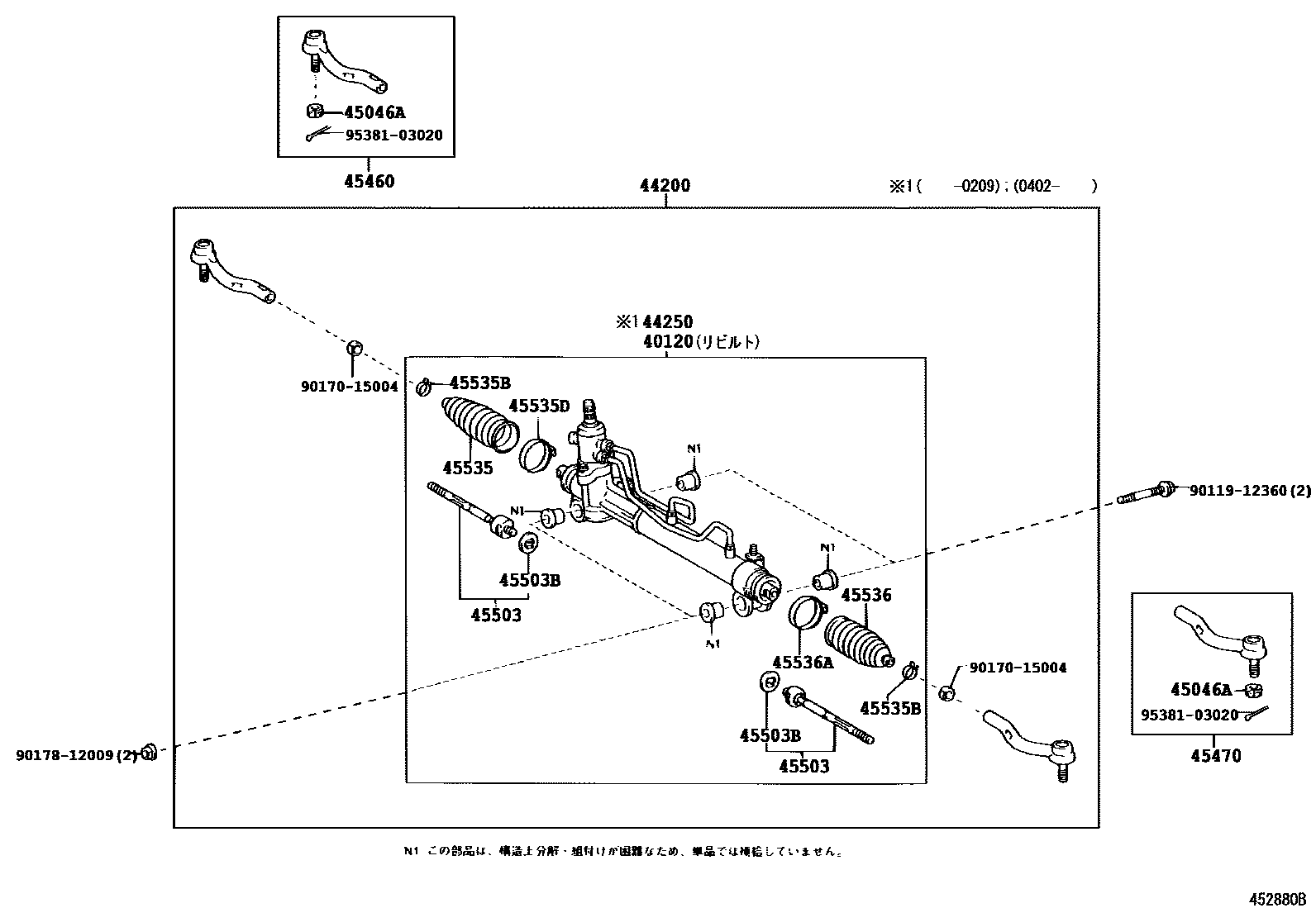

FRONT STEERING GEAR & LINK

0001 1 0002 1

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-33380iACV30..24G200109-200301

sub40120-33381

main40120-33381iACV30..24G200301-200601

main40120-33390iACV30..TOU200109-200301

sub40120-33391

main40120-33391iACV30..TOU200301-200601

main40120-33400iACV35200109-200301

sub40120-33401

main40120-33401iACV35200301-200601

main40120-33420iACV30..24G200210-200406

main40120-33430iACV35200210-200406

44200LINK ASSY, POWER STEERING

main44200-33380iACV30..24G200109-200301

sub44200-33381

main44200-33381iACV30..24G200301-200307

sub44250-33381

main44200-33382iACV30..24G200307-200601

sub44250-33381

main44200-33390iACV30..TOU200109-200301

sub44200-33391

main44200-33391iACV30..TOU200301-200307

sub44250-33391

main44200-33392iACV30..TOU200307-200601

sub44250-33391

sub45460-39635

sub45470-39225

sub90170-15004

main44200-33400iACV35200109-200301

sub44200-33401

main44200-33401iACV35200301-200307

sub44250-33401

main44200-33402iACV35200307-200601

sub44250-33401

main44200-33420iACV30..24G200210-200307

sub44250-33420

main44200-33421iACV30..24G200307-200406

sub44250-33420

main44200-33430iACV35200210-200307

sub44250-33430

main44200-33431iACV35200307-200406

sub44250-33430

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-33380iACV30..24G200109-200209

sub44200-33380

main44250-33381iACV30..24G200402-200601

main44250-33390iACV30..TOU200109-200209

sub44200-33390

main44250-33391iACV30..TOU200402-200601

main44250-33400iACV35200109-200209

sub44200-33400

main44250-33401iACV35200402-200601

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iACV3#200109-200601

45460ROD ASSY, TIE, RH

main45460-39615iACV3#200109-200307

main45460-39635iACV3#200307-200601

45470ROD ASSY, TIE, LH

main45470-39215iACV3#200109-200307

main45470-39225iACV3#200307-200601

45503END SUB-ASSY, STEERING RACK

main45503-39225iACV30200109-200601

main45503-49085iACV35200109-200601

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14009iACV3#200109-200601

45535BOOT, STEERING RACK, NO.1

main45535-06030iACV3#200109-200601

main45535-33030iACV3#200109-200601

45535BCLIP(FOR STEERING RACK BOOT)

main90080-46153iACV3#200307-200601

main90467-19021iACV3#200307-200601

main90467-19021iACV3#200109-200204

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90080-46293iACV3#200109-200601

main90460-58007iACV3#200109-200601

45536BOOT, STEERING RACK, NO.2

main45535-06030iACV3#200109-200601

main45535-33030iACV3#200109-200601

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90080-46293iACV3#200109-200601

main90460-58007iACV3#200109-200601

9011912360

main90119-12360

9017015004

main90170-15004

9017812009

main90178-12009

9538103020

main95381-03020

17 parts on this diagram · 2 diagrams in section
