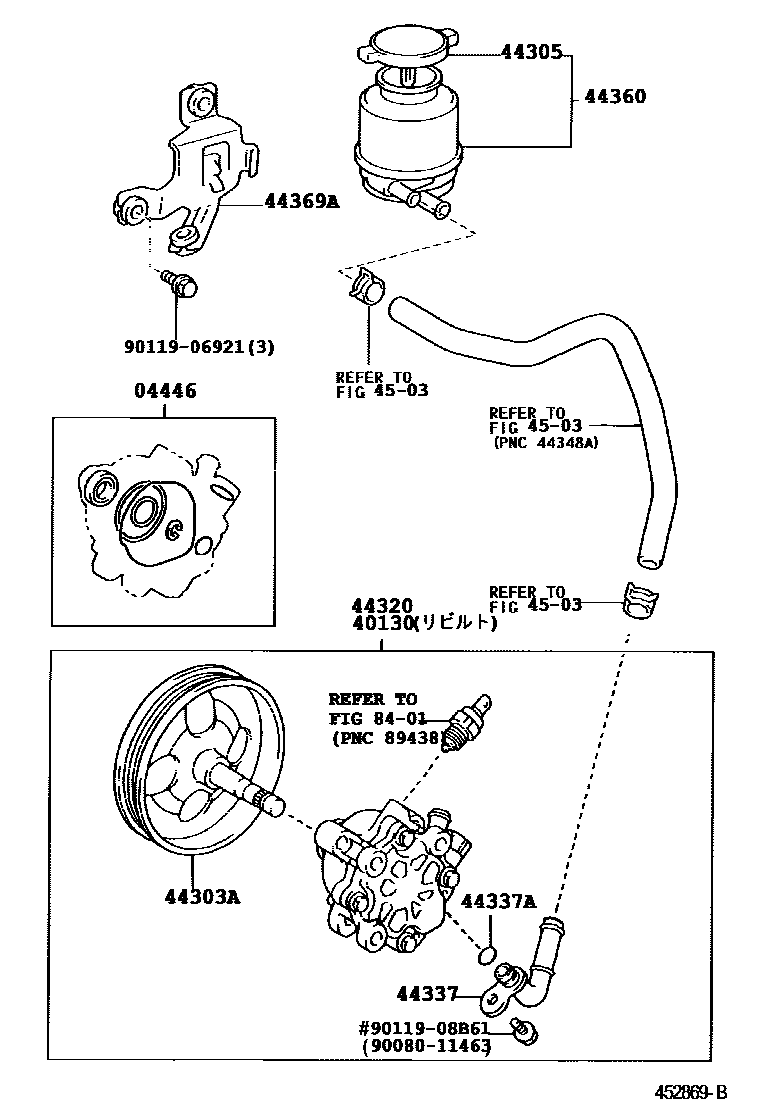

VANE PUMP & RESERVOIR (POWER STEERING)
40130PUMP ASSY,VANE REBUILT
sub44310-33180
44303ASHAFT SUB-ASSY, W/PULLEY
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
sub44305-28060
44337UNION, POWER STEERING SUCTION PORT
44337ARING, O(FOR POWER STEERING SUCTION PORT)
44360RESERVOIR ASSY, VANE PUMP OIL
44369ABRACKET, OIL RESERVOIR, NO.1
4503
8401
9008011463
main90080-11463
9011906921
main90119-06921
9011908B61
main90119-08B61
14 parts on this diagram · 1 diagram in section
