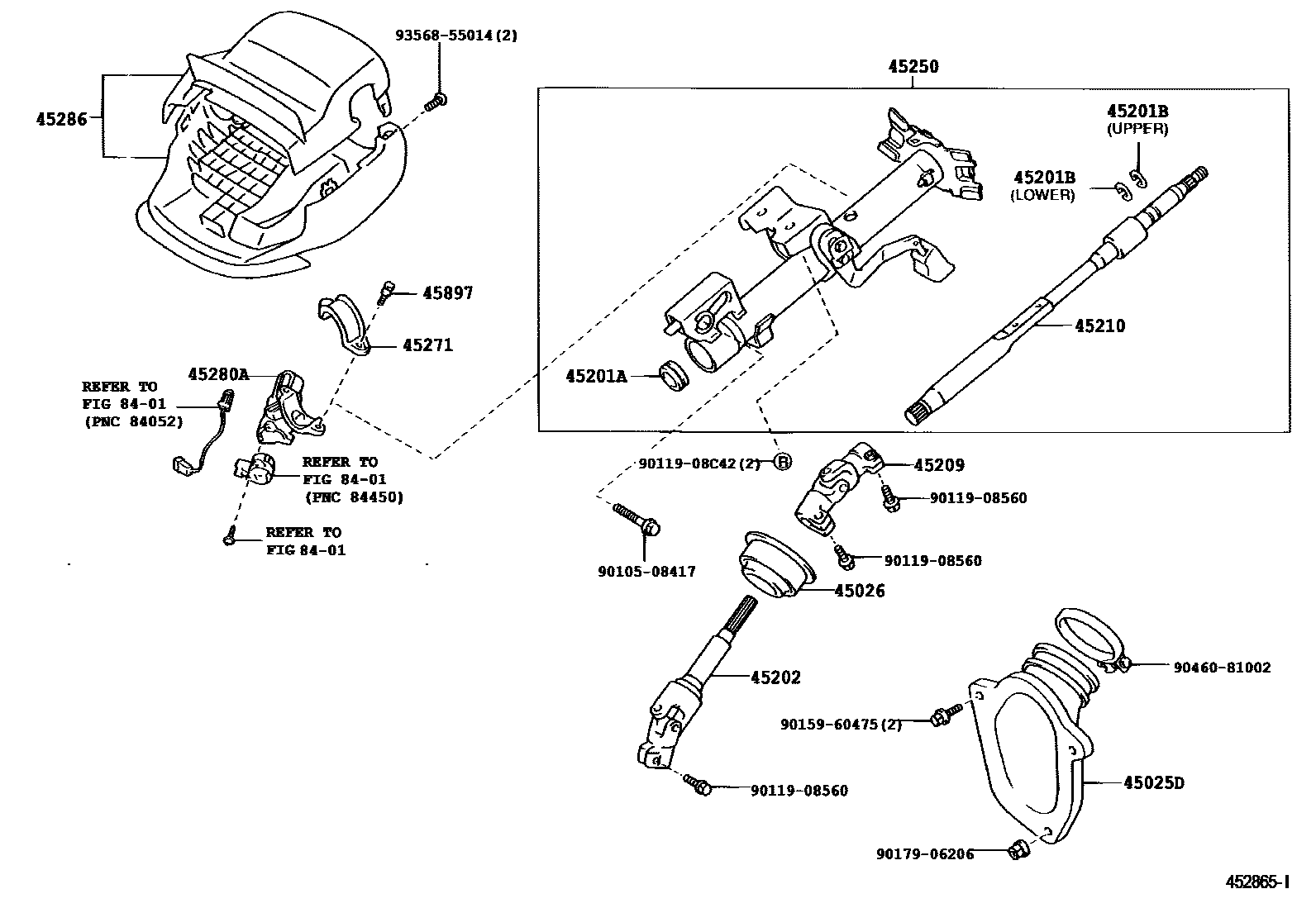

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-33070iACV30200109-200406

main45025-33080iACV35200109-200406

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-33050iACV3#200109-200406

45201ABEARING(FOR STEERING MAIN SHAFT)

main45274-42010iACV3#200109-200406

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iACV3#200109-200406

main90520-17269iACV3#200109-200406

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45202-33070iACV30200109-200406

main45202-33100iACV35200109-200406

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-33010iACV3#200109-200406

45210SHAFT ASSY, STEERING MAIN

main45210-33070iACV30200109-200406

main45210-33080iACV35200109-200406

45250COLUMN ASSY, STEERING

main45250-33510iACV30200109-200406

main45250-33520iACV35200109-200406

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iACV3#200109-200601

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-33100iACV3#200109-200303

sub45280-33150

main45280-33150iACV3#200303-200601

45286COVER, STEERING COLUMN

main45286-33921-B0iACV30..TOU200109-200406

DK. GRAY,TRIM1#

sub45286-39901

main45286-33921-E0iACV3#..24G200109-200406

SANDAL WOOD,TRIM4#

sub45286-39901

main45286-33929-B0iACV30..TOU200406

DK.GRAY,TRIM9#

sub45286-39901

main45286-33929-E0iACV3#..24G200406

SANDAL WOOD,TRIM4#

sub45286-39901

45897BOLT, STEERING LOCK SET

main45897-12020iACV3#200109-200601

8401

9010508417

main90105-08417

9011908560

main90119-08560

9011908C42

main90119-08C42

9015960475

main90159-60475

9017906206

main90179-06206

9046081002

main90460-81002

9356855014

main93568-55014

20 parts on this diagram · 1 diagram in section
