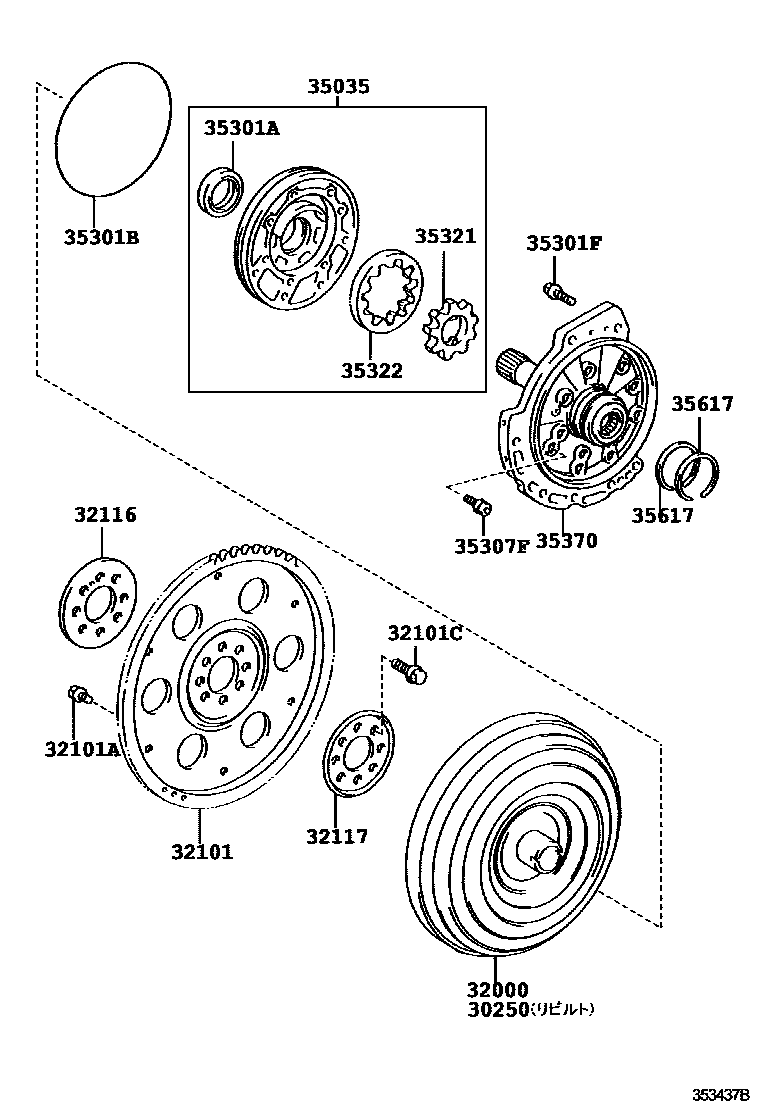

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
30250CONVERTER ASSY, TORQUE, REBUILT
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
sub90105-12384
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
35307FBOLT (FOR STATOR SHAFT)
35321GEAR, FRONT OIL PUMP DRIVE
sub35321-28060
sub35321-28070
sub35321-28080
sub35321-28090
sub35321-28100
35322GEAR, FRONT OIL PUMP DRIVEN
sub35322-28060
sub35322-28070
sub35322-28080
sub35322-28090
sub35322-28100
35617RING, CLUTCH DRUM OIL SEAL
16 parts on this diagram · 1 diagram in section
