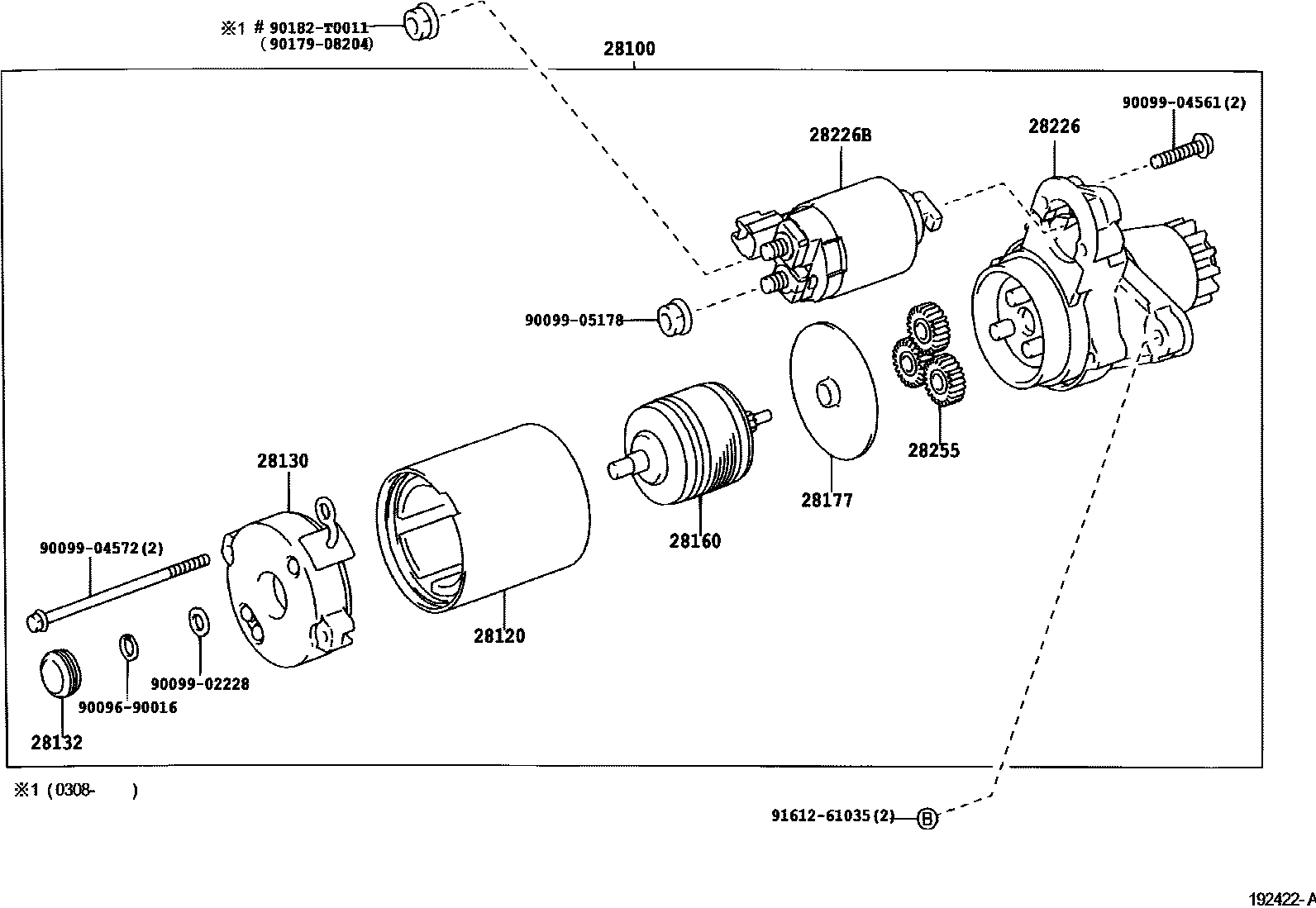

STARTER

28100STARTER ASSY

main28100-28041i2AZFE..ACV3#200109-200406

sub28100-28042

28120YOKE ASSY, STARTER

main28120-28040i2AZFE..ACV3#200109-200406

sub28120-28060

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-28040i2AZFE..ACV3#200109-200406

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28132-28040i2AZFE..ACV3#200109-200406

28160ARMATURE ASSY, STARTER

main28160-28040i2AZFE..ACV3#200109-200406

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2AZFE..ACV3#200109-200406

28226STARTER KIT, BATTERY TERMINAL

main28226-28041i2AZFE..ACV3#200109-200406

28226BSTARTER KIT, REPAIR SERVICE

main28226-28050i2AZFE..ACV3#200109-200205

sub28226-28051

main28226-28051i2AZFE..ACV3#200205-200406

28255GEAR, PLANET

main28255-28040i2AZFE..ACV3#200109-200406

9009690016

main90096-90016

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9017908204

main90179-08204

90182T0011

main90182-T0011

9161261035

main91612-61035

17 parts on this diagram · 1 diagram in section
