ALTERNATOR

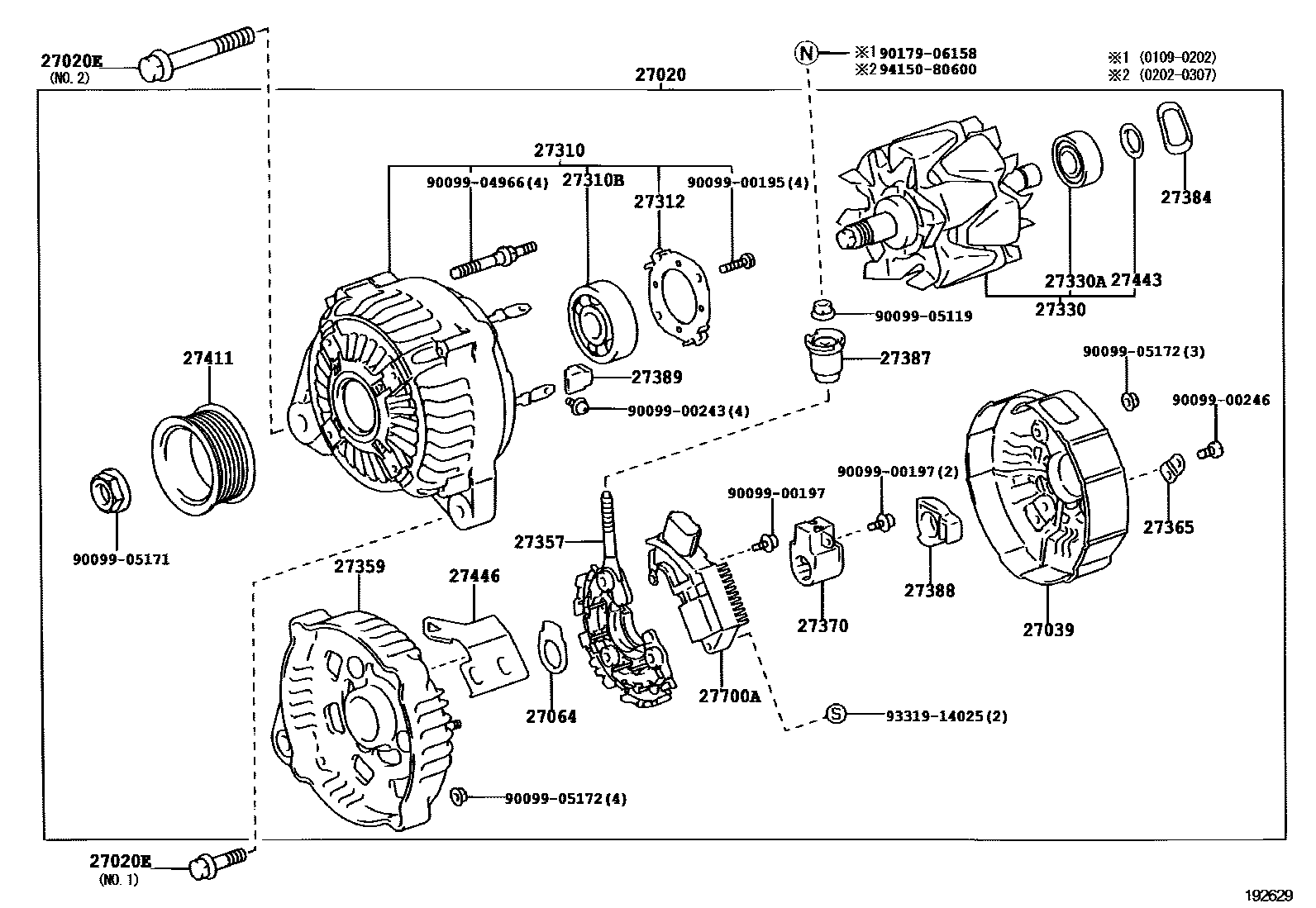

Parts diagram

27020ALTERNATOR ASSY

main27060-28080i200109-200307

main27060-28270i200307-200406

27020EBOLT(FOR ALTERNATOR)

main91511-J0840i200109-200406

main91512-81085i200109-200406

27039COVER, ALTERNATOR REAR END

main27039-20160i200109-200307

main27039-27060i200307-200601

27064SEAL, ALTERNATOR PLATE

main27064-42010i200109-200307

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-28050i200109-200307

main27310-28120i200307-200601

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10142i200307-200406

main90099-10219i200109-200307

27312PLATE, RETAINER

main27312-42010i200109-200307

main27312-72100i200307-200601

27330ROTOR ASSY, ALTERNATOR

main27330-28050i200109-200307

main27330-30070i200307-200601

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i200109-200307

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-70450i200109-200307

27359FRAME, ALTERNATOR RECTIFIER END

main27359-28060i200109-200307

27365PLATE, TERMINAL

main27365-55080i200109-200307

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-58460i200307-200601

main27370-75060i200109-200307

27384WASHER

main27384-50030i200109-200601

27387INSULATOR, TERMINAL

main27387-42021i200109-200307

27388COVER, ALTERNATOR BRUSH

main27388-42010i200109-200307

27389INSULATOR, TERMINAL

main27389-42010i200109-200307

27411PULLEY, ALTERNATOR

main27411-28060i200109-200601

27443COVER, ALTERNATOR BEARING

main27443-63020i200109-200307

27446CLIP, ALTERNATOR CORD

main27446-28060i200109-200307

27700AREGULATOR ASSY, GENERATOR

main27700-20050i200109-200307

9009900195

main90099-00195

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9017906158

main90179-06158

9331914025

main93319-14025

9415080600

main94150-80600

32 parts on this diagram · 2 diagrams in section
