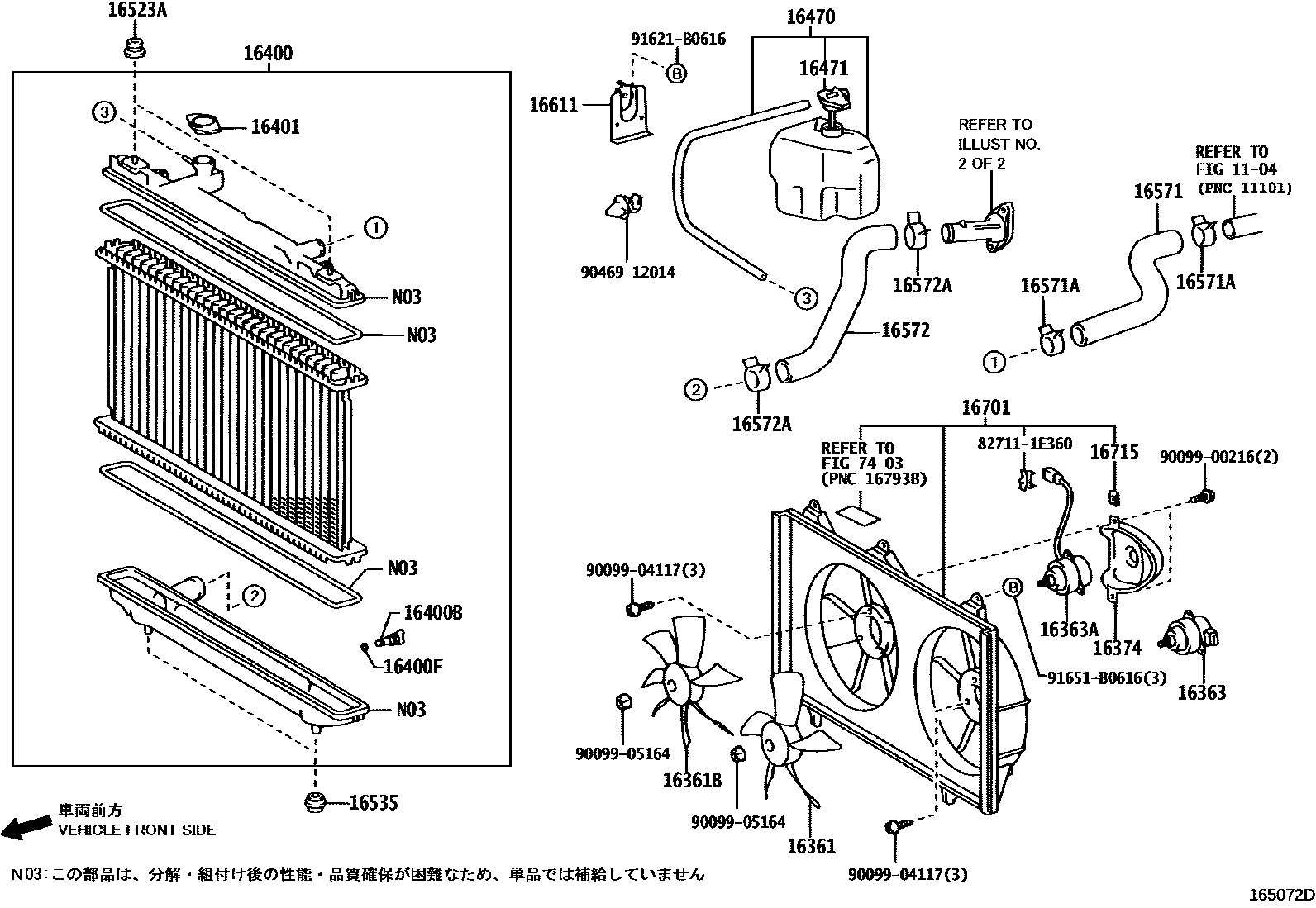

RADIATOR & WATER OUTLET
1104
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16374INSULATOR, COOLING FAN MOTOR
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16611BRACKET, RADIATOR RESERVE TANK
16701SHROUD SUB-ASSY, FAN
16715BRACKET, FAN SHROUD
7403
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9009900216
main90099-00216
9009904117
main90099-04117
9009905164
main90099-05164
9046912014
main90469-12014
91621B0616
main91621-B0616
91651B0616
main91651-B0616
29 parts on this diagram · 2 diagrams in section
