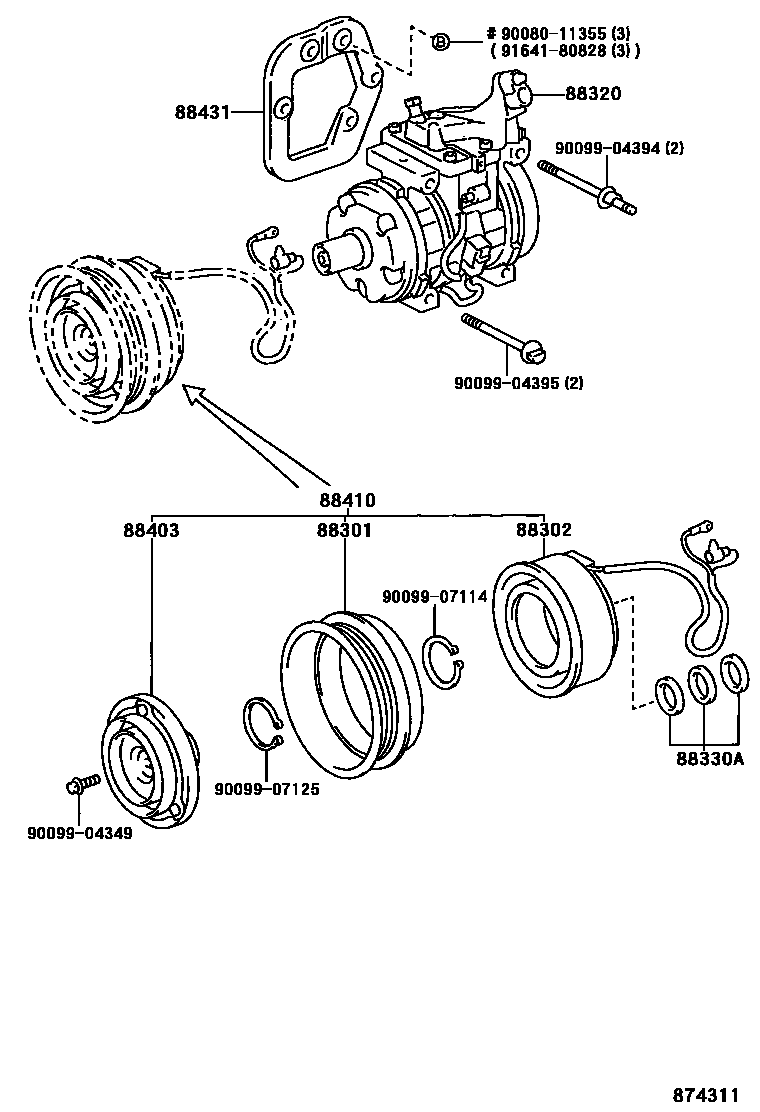

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-2A050iSXV2#..SED199708-200109

main88412-32060iSXV2#..WG199612-200109

main88412-33010iMCV2#199612-200109

main88412-33040iSXV20..SED199612-199708

sub88412-2A050

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iSXV2#199612-199708

sub88411-2A030

main88411-2A030iSXV2#199708-200109

main88411-33050iMCV2#199612-200109

88320COMPRESSOR ASSY, COOLER

main88320-33100iSXV2#199612-200109

main88320-33120iMCV2#199612-200109

sub88320-33H90

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iMCV2#,SXV2#199612-200109

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iMCV2#,SXV2#199612-200109

88410CLUTCH ASSY, MAGNET

main88410-28170iSXV2#..SED199612-199908

main88410-33090iSXV2#..WG199612-200109

sub88410-44010

main88410-33100iSXV2#..SED199908-200109

main88410-33110iMCV2#199612-200109

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-07010iMCV2#200008

main88431-33020iMCV2#199612-200008

main88431-33020iMCV2#200008

9008011355

main90080-11355

9009904349

main90099-04349

9009904394

main90099-04394

9009904395

main90099-04395

9009907114

main90099-07114

9009907125

main90099-07125

9164180828

main91641-80828

14 parts on this diagram · 2 diagrams in section
