MIRROR

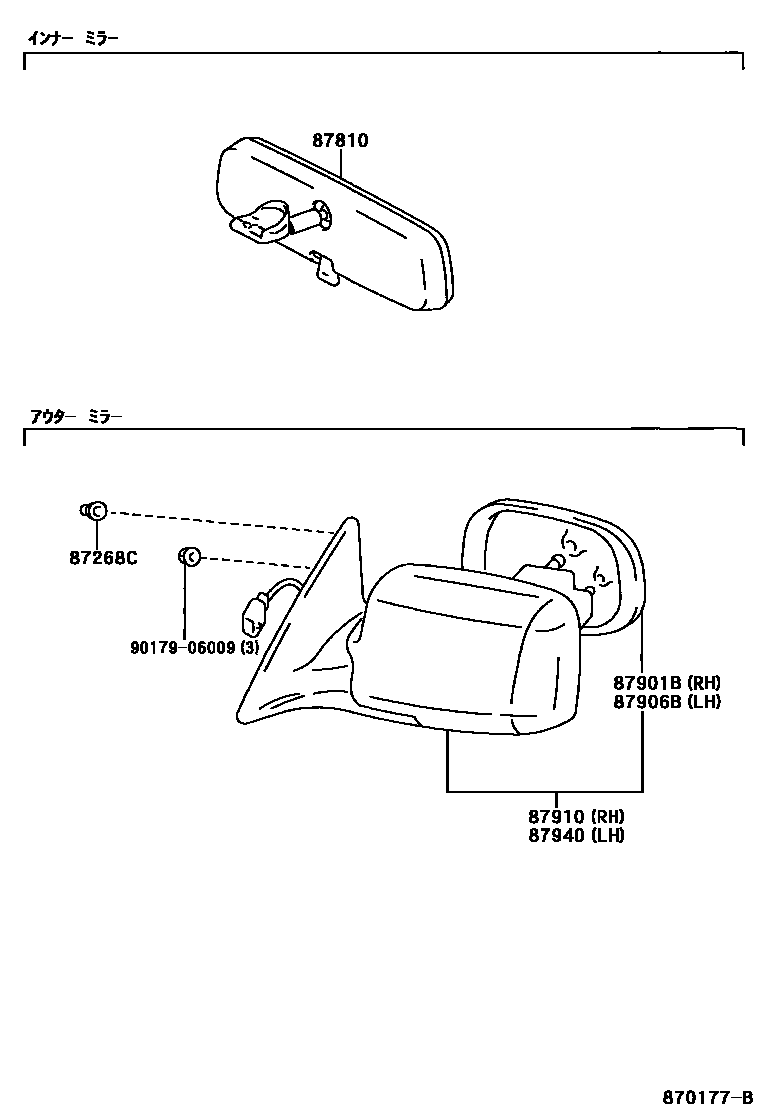

Parts diagram
87268CPROTECTOR, OUTER MIRROR
main87268-33010i199612
87810MIRROR ASSY, INNER REAR VIEW
main87810-0W030i199612
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87931-33160i199612-199808
main87931-33180i199612-199808
main87931-33250i199612-199808
main87931-33260i199612-199808
main87931-33350i199808
main87931-33360i199808
main87931-33370i199808-199908
main87931-33380i199808-199908
main87931-33440i199908
main87931-33450i199908
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
main87961-33160i199612-199808
main87961-33180i199612-199808
main87961-33320i199808
main87961-33330i199808-199908
main87961-33400i199908
main87961-33410i199908
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-33180-A0i199612-199808
sub87910-33270
sub87910-33350
main87910-33180-B0i199612-199808
sub87910-33270
sub87910-33350
main87910-33180-B1i199612-199808
sub87910-33270
sub87910-33350
main87910-33180-D0i199612-199808
sub87910-33270
sub87910-33350
main87910-33180-G0i199612-199808
sub87910-33270
sub87910-33350
main87910-33180-G0i199612-199808
sub87910-33270
sub87910-33350
main87910-33180-J0i199612-199808
sub87910-33270
sub87910-33350
main87910-33180-K0i199612-199808
sub87910-33270
sub87910-33350
main87910-33250-A0i199801-199807
sub87910-33360
sub87910-33260
main87910-33250-A0i199712
sub87910-33360
sub87910-33260
main87910-33250-A0i199612-199808
sub87910-33360
sub87910-33260
main87910-33250-B0i199612-199808
sub87910-33360
sub87910-33260
main87910-33250-B1i199612-199808
sub87910-33360
sub87910-33260
main87910-33250-D0i199612-199808
sub87910-33360
sub87910-33260
main87910-33250-E0i199712
sub87910-33360
sub87910-33260
main87910-33250-E0i199801-199807
sub87910-33360
sub87910-33260
main87910-33250-G0i199612-199808
sub87910-33360
sub87910-33260
main87910-33250-G0i199612-199808
sub87910-33360
sub87910-33260
main87910-33250-J0i199612-199808
sub87910-33360
sub87910-33260
main87910-33250-K0i199612-199808
sub87910-33360
sub87910-33260
main87910-33260-A0i199612-199808
sub87910-33380
main87910-33260-A0i199707-199808
sub87910-33380
main87910-33260-A0i199712
sub87910-33380
main87910-33260-B0i199612-199808
sub87910-33380
main87910-33260-B1i199612-199808
sub87910-33380
main87910-33260-C0i199707-199808
sub87910-33380
main87910-33260-D0i199612-199808
sub87910-33380
main87910-33260-E0i199712
sub87910-33380
main87910-33260-G0i199612-199808
sub87910-33380
main87910-33260-G0i199612-199808
sub87910-33380
main87910-33260-J0i199612-199808
sub87910-33380
main87910-33260-K0i199612-199808
sub87910-33380
main87910-33270-A0i199612-199808
sub87910-33370
main87910-33270-B0i199612-199808
sub87910-33370
main87910-33270-D0i199612-199808
sub87910-33370
main87910-33270-G0i199612-199808
sub87910-33370
main87910-33270-J0i199612-199808
sub87910-33370
main87910-33270-K0i199612-199808
sub87910-33370
main87910-33350-A0i199908-200109
SU.WHITE PM,051 ,2GF
sub87910-33370
main87910-33350-A0i199808-199908
sub87910-33370
main87910-33350-A1i199908-200109
SUPER WHITE 2,040
sub87910-33370
main87910-33350-B1i199808-199908
sub87910-33370
main87910-33350-B2i199908-200109
DK.GRAY M.M.,1C6
sub87910-33370
main87910-33350-B3i199908-200109
SLVER ME.,1C8
sub87910-33370
main87910-33350-C0i199808-200109
BLACK,202
sub87910-33370
main87910-33350-D2i199808-199908
sub87910-33370
main87910-33350-G1i199808-200109
DK.GREEN MC.P.I.O.,6N9
sub87910-33370
main87910-33350-G2i199808-199908
sub87910-33370
main87910-33350-J0i199808-199908
sub87910-33370
main87910-33360-A0i199908-200109
sub87910-33440
sub87910-33380
main87910-33360-A0i199808-199908
sub87910-33440
sub87910-33380
main87910-33360-A1i199808-199908
sub87910-33440
sub87910-33380
main87910-33360-A1i199908-200109
sub87910-33440
sub87910-33380
main87910-33360-B1i199808-199908
sub87910-33440
sub87910-33380
main87910-33360-B2i199908-200109
sub87910-33440
sub87910-33380
main87910-33360-B3i199908-200109
sub87910-33440
sub87910-33380
main87910-33360-C0i199808-199908
sub87910-33440
sub87910-33380
main87910-33360-C0i199808-200109
sub87910-33440
sub87910-33380
main87910-33360-D1i199808-199908
sub87910-33440
sub87910-33380
main87910-33360-D1i199808-199908
sub87910-33440
sub87910-33380
main87910-33360-G1i199808-200109
sub87910-33440
sub87910-33380
main87910-33360-G2i199808-199908
sub87910-33440
sub87910-33380
main87910-33360-J0i199808-199908
sub87910-33440
sub87910-33380
main87910-33370-A0i199808-199908
sub87910-33370
main87910-33370-B0i199808-199908
sub87910-33370
main87910-33370-C0i199808-199908
sub87910-33370
main87910-33370-D2i199808-199908
sub87910-33370
main87910-33370-J0i199808-199908
sub87910-33370
main87910-33380-A0i199808-199908
sub87910-33440
sub87910-33380
main87910-33380-B1i199808-199908
sub87910-33440
sub87910-33380
main87910-33380-C0i199808-199908
sub87910-33440
sub87910-33380
main87910-33380-D2i199808-199908
sub87910-33440
sub87910-33380
main87910-33380-G1i199808-199908
sub87910-33440
sub87910-33380
main87910-33380-G2i199808-199908
sub87910-33440
sub87910-33380
main87910-33380-J0i199808-199908
sub87910-33440
sub87910-33380
main87910-33440-A0i199908-200109
main87910-33440-A1i199908-200109
main87910-33440-B1i199908-200109
main87910-33440-B2i199908-200109
main87910-33440-C0i199908-200109
main87910-33440-G0i199908-200109
main87910-33450-A0i199908-200109
main87910-33450-A1i199908-200109
main87910-33450-B0i199908-200109
main87910-33450-B1i199908-200109
main87910-33450-C0i199908-200109
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-33180-A0i199801-199807
sub87940-33320
sub87940-33250
sub87940-33180
main87940-33180-A0i199712
sub87940-33320
sub87940-33250
sub87940-33180
main87940-33180-A0i199612-199808
sub87940-33320
sub87940-33250
sub87940-33180
main87940-33180-B0i199612-199808
sub87940-33320
sub87940-33250
sub87940-33180
main87940-33180-B1i199612-199808
sub87940-33320
sub87940-33250
sub87940-33180
main87940-33180-D0i199612-199808
sub87940-33320
sub87940-33250
sub87940-33180
main87940-33180-E0i199801-199807
sub87940-33320
sub87940-33250
sub87940-33180
main87940-33180-E0i199712
sub87940-33320
sub87940-33250
sub87940-33180
main87940-33180-G0i199612-199808
sub87940-33320
sub87940-33250
sub87940-33180
main87940-33180-G0i199612-199808
sub87940-33320
sub87940-33250
sub87940-33180
main87940-33180-J0i199612-199808
sub87940-33320
sub87940-33250
sub87940-33180
main87940-33180-K0i199612-199808
sub87940-33320
sub87940-33250
sub87940-33180
main87940-33250-A0i199712
sub87940-33330
main87940-33250-A0i199707-199808
sub87940-33330
main87940-33250-A0i199612-199808
sub87940-33330
main87940-33250-B0i199612-199808
sub87940-33330
main87940-33250-B1i199612-199808
sub87940-33330
main87940-33250-C0i199707-199808
sub87940-33330
main87940-33250-D0i199612-199808
sub87940-33330
main87940-33250-E0i199712
sub87940-33330
main87940-33250-G0i199612-199808
sub87940-33330
main87940-33250-G0i199612-199808
sub87940-33330
main87940-33250-J0i199612-199808
sub87940-33330
main87940-33250-K0i199612-199808
sub87940-33330
main87940-33320-A0i199808-199908
sub87940-33400
sub87940-33330
main87940-33320-A0i199908
sub87940-33400
sub87940-33330
main87940-33320-A1i199808-199908
sub87940-33400
sub87940-33330
main87940-33320-A1i199908
sub87940-33400
sub87940-33330
main87940-33320-B1i199808-199908
sub87940-33400
sub87940-33330
main87940-33320-B2i199908
sub87940-33400
sub87940-33330
main87940-33320-B3i199908
sub87940-33400
sub87940-33330
main87940-33320-C0i199808-199908
sub87940-33400
sub87940-33330
main87940-33320-C0i199808
sub87940-33400
sub87940-33330
main87940-33320-D2i199808-199908
sub87940-33400
sub87940-33330
main87940-33320-D2i199808-199908
sub87940-33400
sub87940-33330
main87940-33320-G1i199808
sub87940-33400
sub87940-33330
main87940-33320-G2i199808-199908
sub87940-33400
sub87940-33330
main87940-33320-J0i199808-199908
sub87940-33400
sub87940-33330
main87940-33330-A0i199808-199908
sub87940-33400
sub87940-33330
main87940-33330-B1i199808-199908
sub87940-33400
sub87940-33330
main87940-33330-C0i199808-199908
sub87940-33400
sub87940-33330
main87940-33330-D2i199808-199908
sub87940-33400
sub87940-33330
main87940-33330-G1i199808-199908
sub87940-33400
sub87940-33330
main87940-33330-G2i199808-199908
sub87940-33400
sub87940-33330
main87940-33330-J0i199808-199908
sub87940-33400
sub87940-33330
main87940-33400-A0i199908
main87940-33400-A1i199908
main87940-33400-B1i199908
main87940-33400-B2i199908
main87940-33400-C0i199908
main87940-33400-G0i199908
main87940-33410-A0i199908
main87940-33410-A1i199908
main87940-33410-B0i199908
main87940-33410-B1i199908
main87940-33410-C0i199908
9017906009
main90179-06009

7 parts on this diagram · 1 diagram in section
