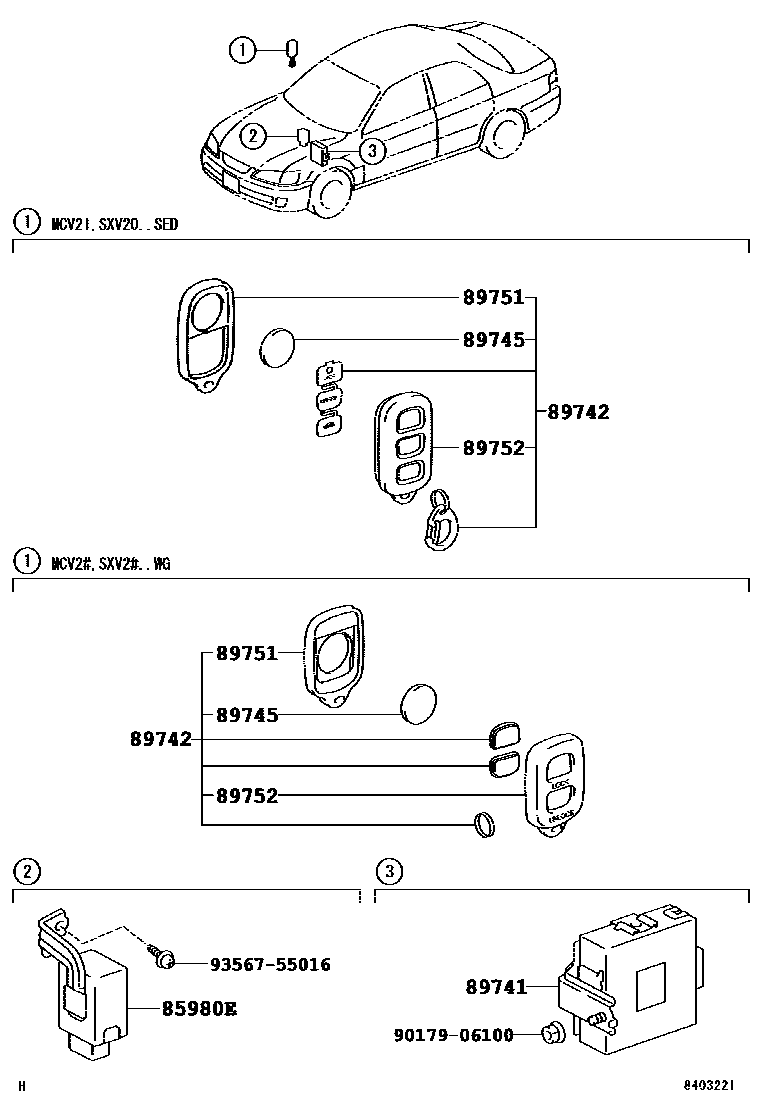

WIRELESS DOOR LOCK

0001 1 0002 1

85980ERELAY ASSY, DOOR CONTROL

main85980-33090iMCV21,SXV2#..SED199612-200109

89741RECEIVER, DOOR CONTROL

main89741-33130iMCV21,SXV20..SED199612-199808

main89741-33142iMCV21,SXV2#..SED199808-199908

main89741-33170iMCV2#,SXV2#..WG199612-199808

main89741-33171iMCV2#,SXV2#..WG199808-199908

main89741-33240iMCV21,SXV2#..SED199908-200109

main89741-33350iMCV2#,SXV2#..WG199908-200109

89742TRANSMITTER, DOOR CONTROL

main89742-33120iMCV2#,SXV2#..WG199612-199808

main89742-33130iMCV21,SXV20..SED199612-199808

89745BATTERY, TRANSMITTER

main89745-40010iMCV2#,SXV2#199808-200109

main89745-50010iMCV2#,SXV2#199612-199808

sub89745-71010

89751COVER, TRANSMITTER HOUSING

main89751-44050iMCV2#,SXV2#..WG199612-199808

main89751-50120iMCV21,SXV20..SED199612-199808

89752CASE, TRANSMITTER HOUSING

main89752-44020iMCV2#,SXV2#..WG199612-199808

main89752-50030iMCV21,SXV20..SED199612-199808

9017906100

main90179-06100

9356755016

main93567-55016

8 parts on this diagram · 2 diagrams in section
