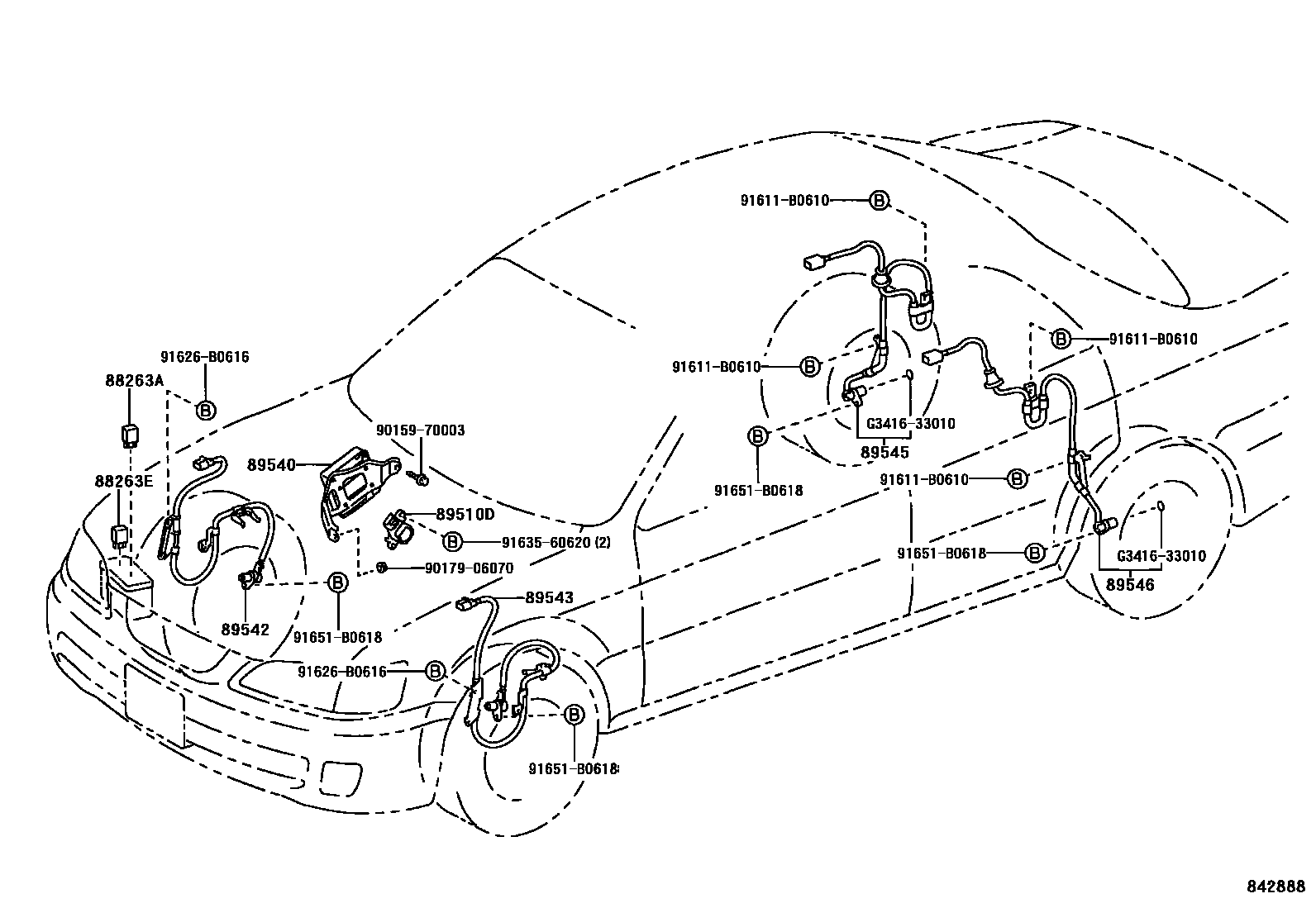

ABS & VSC

0001 1 0002 1

88263ARELAY, SKID CONTROL

main88263-14110iMCV2#,SXV2#199612

88263ERELAY, SKID CONTROL NO.2

main88263-24030iMCV2#,SXV2#199612

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33010iMCV2#,SXV2#199908

89540COMPUTER ASSY, SKID CONTROL

main89540-33032iMCV21199612-199708

main89540-33033iMCV21199708-199908

main89540-33040iMCV21,SXV20..SED199612-199808

main89540-33050iMCV21,SXV20..WG199612-199808

main89540-33101iMCV25,SXV25199706-199808

main89540-33160iMCV25,SXV25199808-199908

main89540-33180iMCV21,SXV20..SED199808-199908

main89540-33190iMCV21,SXV20..WG199808-199908

main89540-33220iMCV21,SXV20199908

main89540-33240iMCV25,SXV25199908

main89540-33250iMCV21199908

89542SENSOR, SPEED, FRONT RH

main89542-33030iMCV21,SXV20..SED199612-199708

main89542-33050iMCV2#,SXV2#..WG199612-199708

89543SENSOR, SPEED, FRONT LH

main89543-33030iMCV21,SXV20..SED199612-199708

main89543-33050iMCV2#,SXV2#..WG199612-199708

89545SENSOR, SPEED, REAR RH

main89545-33020iMCV21,SXV20199612

main89545-33030iMCV25,SXV25199706

main89545-33040iMCV25,SXV25..WG199908

89546SENSOR, SPEED, REAR LH

main89546-33020iMCV21,SXV20199612

main89546-33030iMCV25,SXV25199706

main89546-33040iMCV25,SXV25..WG199908

9015970003

main90159-70003

9017906070

main90179-06070

91611B0610

main91611-B0610

91626B0616

main91626-B0616

9163560620

main91635-60620

91651B0618

main91651-B0618

G341633010

mainG3416-33010

15 parts on this diagram · 2 diagrams in section
