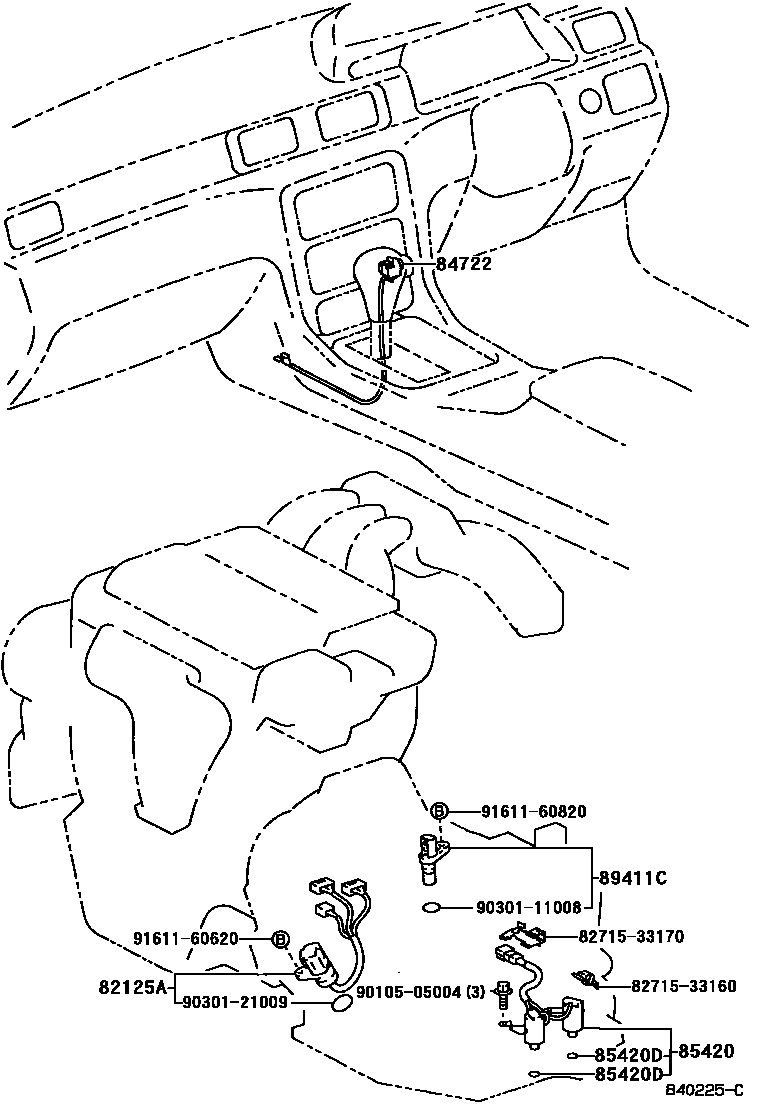

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0004 1

82125AWIRE, TRANSMISSION

main82125-20150iSXV20199612

main82125-33010iSXV25199612-199808

main82125-33020iMCV2#199808

84722SWITCH, TRANSMISSION CONTROL

main84722-33070-B0iMCV2#,SXV2#199612-199908

BLISH GRAY,TRIM1#

sub84722-60130

main84722-33070-C0iMCV2#,SXV2#..WG199908

BLACK,TRIM2#

sub84722-60130

main84722-33070-G0iMCV2#,SXV2#199612

DK.SAGE,TRIM6#

sub84722-60130

85420SOLENOID ASSY, TRANSMISSION

main85420-20110iSXV20199612

main85420-32021iSXV20199612

main85420-32140iSXV20199612

sub85420-32041

main85420-33010iSXV25199808

main85420-33010iMCV2#,SXV25199612-199808

main85420-33030iMCV2#199808

sub85420-33010

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iSXV20199612

main90301-06005iSXV20199612

NO.2,ID=6.6

main96721-19017iSXV20199612

NO.3,ID=16.8

89411CSENSOR, SPEED

main89411-33010iMCV2#,SXV25199612

sub89413-24010

main89413-24010iMCV2#,SXV25199612

8271533160BRACKET,WIRING HARNESS CLAMP

main82715-33160

8271533170BRACKET,WIRING HARNESS CLAMP

main82715-33170

9010505004

main90105-05004

9030111008

main90301-11008

9030121009

main90301-21009

9161160620

main91611-60620

9161160820

main91611-60820

12 parts on this diagram · 4 diagrams in section
