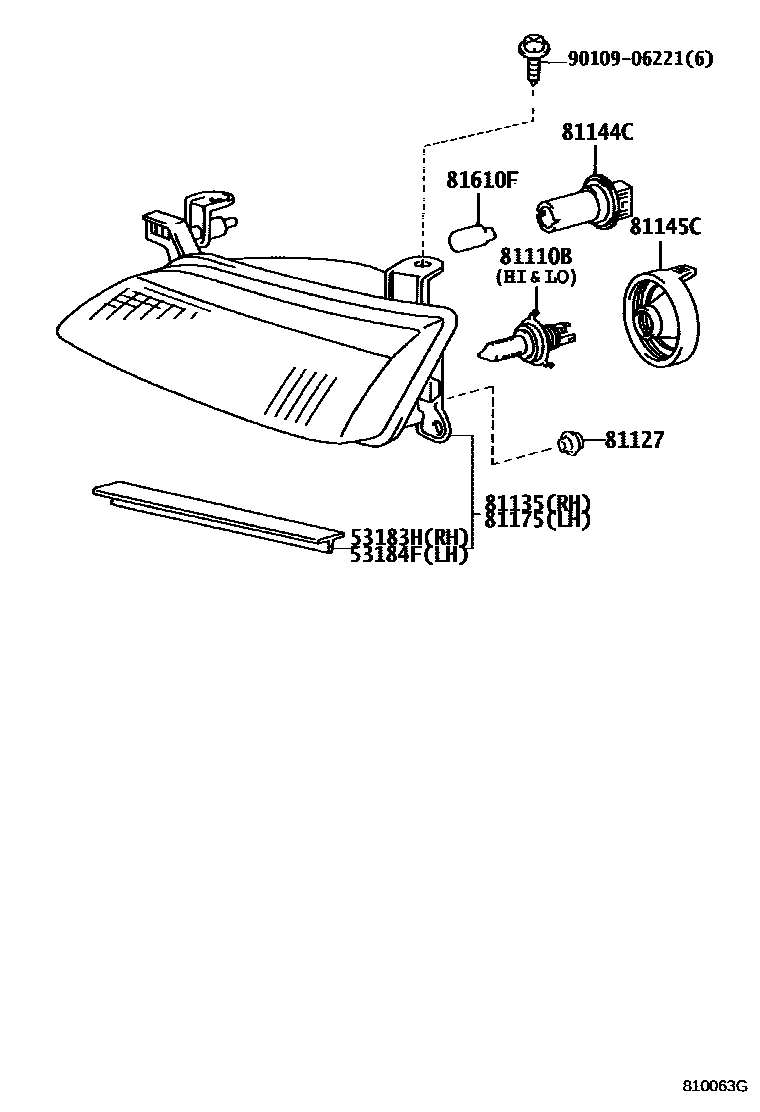

HEADLAMP

0001 1 0002 1

53183HSEAL, HEADLAMP COVER, RH

main53183-33060iMCV2#,SXV2#199612-199908

main53183-33070iMCV2#,SXV2#199908

53184FSEAL, HEADLAMP COVER, LH

main53184-33060iMCV2#,SXV2#199612-199908

main53184-33070iMCV2#,SXV2#199908

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81040iMCV2#,SXV2#199908

sub90981-13047

main90981-22004iMCV2#,SXV2#199612-199908

sub90981-13055

81127BEARING, HEADLAMP, NO.1

main81128-22630iMCV2#,SXV2#199612-199908

81135UNIT ASSY, HEADLAMP, RH

main81130-33270iMCV2#,SXV2#199612-199908

main81130-33310iMCV2#,SXV2#199908-200109

81144CCOVER, HEADLAMP SOCKET

main90075-60004iMCV2#,SXV2#199612

81145CCOVER, HEADLAMP SOCKET, NO.2

main90075-65012iMCV2#,SXV2#199612-199908

81175UNIT ASSY, HEADLAMP, LH

main81170-33270iMCV2#,SXV2#199612-199908

main81170-33300iMCV2#,SXV2#199908-200109

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iMCV2#,SXV2#199612

9010906221

main90109-06221

10 parts on this diagram · 2 diagrams in section
