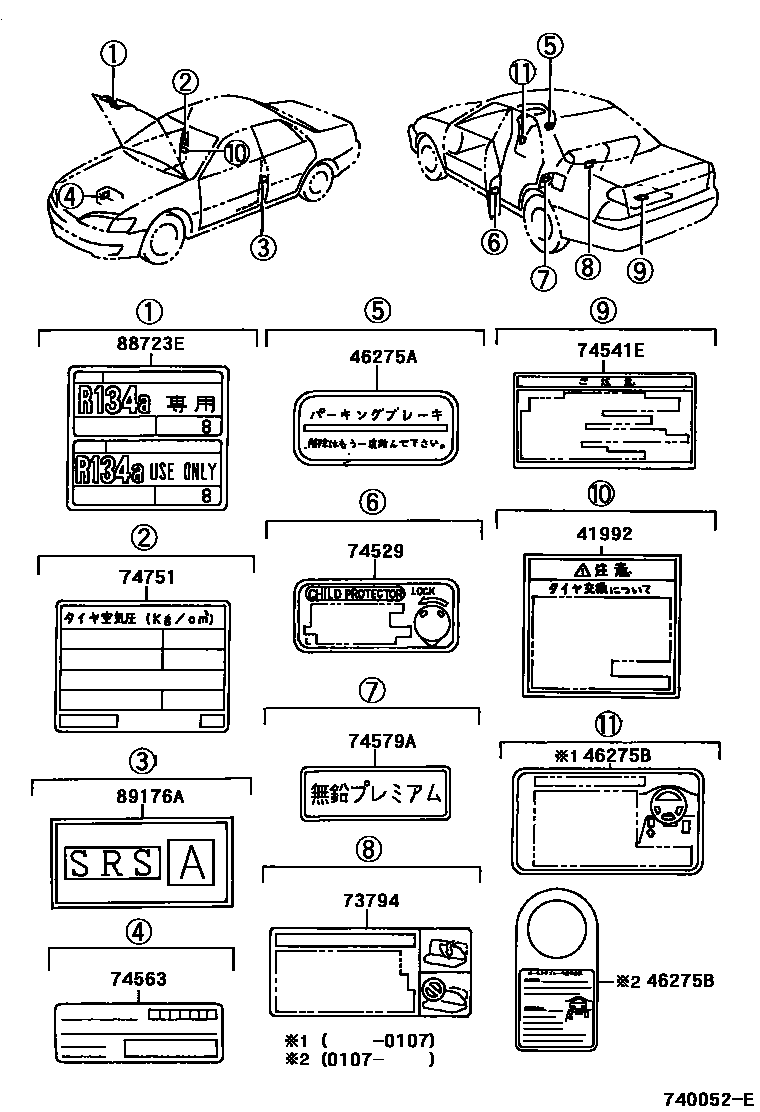

CAUTION PLATE (EXTERIOR & INTERIOR)

41992LABEL, DIFFERENTIAL NOTICE

main41992-33010iMCV25,SXV25199706

46275ALABEL, PARKING BRAKE RELEASE INFORMATION, NO.1

main46275-33010-B0iMCV2#,SXV2#199612-199908

GRAY,TRIM1#,6#

sub46275-22010

main46275-33010-B0iMCV21,SXV2#..SED199908

GRAY,TRIM6#

sub46275-22010

main46275-33010-B0iMCV21,SXV2#..SED199908

GRAY,TRIM2#,6#

sub46275-22010

46275BLABEL, PARKING BRAKE RELEASE INFORMATION, NO.2

main46275-33020iMCV2#,SXV2#199612-200107

main46275-47010iMCV2#,SXV2#200107-200109

73794LABEL, REAR SEAT BELT NOTICE

main73794-33010iMCV21,SXV2#..SED199612

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-33010iMCV2#,SXV2#199612

main69349-33010iMCV2#,SXV2#199612

74541EPLATE, COMPACT SPARE TIRE CAUTION

main42668-28060iMCV2#,SXV2#200003

main42668-32010iMCV2#,SXV2#199806-200003

main42668-33010iMCV2#,SXV2#199612-199806

sub42668-32010

74563PLATE, EMISSION CONTROL DEVICE IDENTIFICATION

main74563-33010iSXV2#..WG199808-199902

main74563-33020iMCV2#..WG199808-199902

74579ALABEL, UNLEADED FUEL INFORMATION

main74579-24010iMCV2#199612

74751LABEL, TIRE PRESSURE INFORMATION

main42661-33202iMCV21..SED;MCV25,SXV25..WG199612-199908

main42661-33320iSXV2#..SED199612-199908

main42661-33360iMCV21,SXV20..WG199612-199908

main42661-33420iMCV21..SED;MCV25,SXV25..WG199908-200003

sub42661-33421

main42661-33421iMCV21..SED;MCV25,SXV25..WG200003

main42661-33440iMCV21,SXV20..WG199908-200003

sub42661-33441

main42661-33441iMCV21,SXV20..WG200003

main42661-33470iSXV2#..SED199908-200003

sub42661-33471

main42661-33471iSXV2#..SED200003

88723ELABEL, COOLER SERVICE CAUTION

main88723-14010iMCV2#,SXV2#199612

89176ALABEL, AIRBAG DEPLOYMENT INFORMATION

main89176-32010iMCV2#,SXV2#199808

11 parts on this diagram · 1 diagram in section
