SEAT BELT & CHILD RESTRAINT SEAT

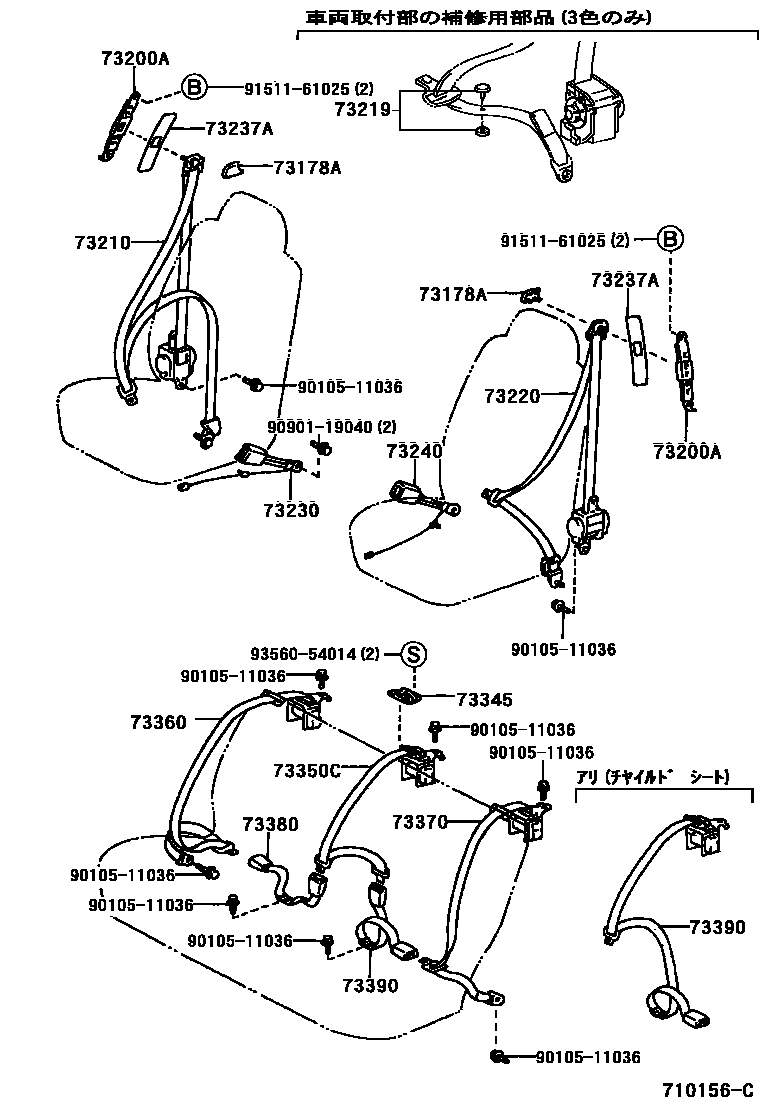

Parts diagram
73178ACAP, SEAT BELT ANCHOR COVER
main73178-07020-B1×2i199612-199808
LT.GRAY,TRIM1#
main73178-07020-G0×2i199808-200008
SAGE,TRIM6#
main73178-33010-B0×2i199808-199908
LT.GRAY,TRIM1#
main73178-33010-G0×2i199706-199808
SAGE,TRIM6#
main73178-33020-B6×2i200008
LT.GRAY,TRIM2#
main73178-33020-G0×2i200008
SAGE,TRIM6#
main73178-AA010-G0×2i200008
SAGE,TRIM6#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-33040-B0×2i199808-199908
LT.GRAY,TRIM1#
main73200-33040-G0×2i199808
SAGE,TRIM6#
main73200-60020-B1×2i199908
LT.GRAY,TRIM2#
main73200-60020-G0×2i199808
SAGE,TRIM6#
main73200-AA010-B1×2i199612-199808
LT.GRAY,TRIM1#
main73200-AA010-G1×2i199612-199808
SAGE,TRIM6#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-0W020-B0i199612-199808
BLUISH GRAY,TRIM1#
main73210-0W020-G0i199612-199808
DARK AGATE,TRIM6#
main73210-0W060-B0i199808-199908
BLUISH GRAY,TRIM1#
main73210-0W060-G0i199808-200008
DARK AGATE,TRIM6#
main73210-0W061-G0i200008
AGATE,TRIM6#
main73210-33140-B0i199706-199808
BLUISH GRAY,TRIM1#
main73210-33140-G0i199706-199808
DARK AGATE,TRIM6#
main73210-33141-B0i199808-199908
BLUISH GRAY,TRIM1#
main73210-33141-C0i199908-200008
BLACK,TRIM2#
main73210-33141-G0i199808-200008
DARK AGATE,TRIM6#
main73210-33270-C0i200008
BLACK,TRIM2#
main73210-33270-G0i200008
AGATE,TRIM6#
73219STOPPER, TONGUE PLATE
main73219-33010i200009-200109
main73219-33020i200009-200109
main73219-33030i200009-200109
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-0W040-B0i199612-199808
BLUISH GRAY,TRIM1#
main73220-0W040-G0i199612-199808
DARK AGATE,TRIM6#
main73220-0W050-B0i199808-199908
BLUISH GRAY,TRIM1#
main73220-0W050-G0i199808-200008
DARK AGATE,TRIM6#
main73220-0W051-G0i200008
AGATE,TRIM6#
main73220-33140-B0i199706-199808
BLUISH GRAY,TRIM1#
main73220-33140-G0i199706-199808
DARK AGATE,TRIM6#
main73220-33141-B0i199808-199908
BLUISH GRAY,TRIM1#
main73220-33141-C0i199908-200008
BLACK,TRIM2#
main73220-33141-G0i199808-200008
DARK AGATE,TRIM6#
main73220-33250-C0i200008
BLACK,TRIM2#
main73220-33250-G0i200008
AGATE,TRIM6#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-0W030-B0i199808-199908
BLUISH GRAY,TRIM1#
main73230-0W030-G0i199612-199808
DK.SAGE,TRIM6#
main73230-33190-B0i199808-199908
BLUISH GRAY,TRIM1#
main73230-33190-C0i199908
BLACK,TRIM2#
main73230-33190-G0i199706-199808
DK.SAGE,TRIM6#
73237ACOVER, SHOULDER BELT ANCHOR
main73237-AA010-B0×2i199612-199908
LT.GRAY,TRIM1#
main73237-AA010-G0×2i199612
SAGE,TRIM6#
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-33010-B0i199706-199808
BLUISH GRAY,TRIM1#
main73240-33010-C0i199908
BLACK,TRIM2#
main73240-33010-G0i199706-199808
DK.SAGE,TRIM6#
main73240-AA020-B0i199808-199908
BLUISH GRAY,TRIM1#
main73240-AA020-G0i199808
DK.SAGE,TRIM6#
73345GUIDE, REAR SEAT SHOULDER BELT, CENTER
main73345-33010-B0i199612-199707
main73345-33010-G0i199612-199707
main73345-33020-B0i199612-199908
BLUE GRAY,TRIM1#
main73345-33020-G0i199612
SAGE,TRIM6#
73350CBELT ASSY, REAR SEAT, OUTER CENTER
main73350-0W030-B0i199612-199707
BLUISH GRAY,TRIM1#
main73350-0W030-G0i199708-199808
DARK AGATE,TRIM6#
main73350-0W051-B0i199808-199908
BLUISH GRAY,TRIM1#
main73350-0W051-G0i199808
DARK AGATE,TRIM6#
main73350-33080-B0i199612-199908
BLUISH GRAY,TRIM1#
main73350-33080-C0i199908
BLACK,TRIM2#
main73350-33080-G0i199612
DARK AGATE,TRIM6#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-0W080-B0i199612-199808
BLUISH GRAY,TRIM1#
main73360-0W080-G0i199612-199808
DARK AGATE,TRIM6#
main73360-0W121-B0i199808-199908
BLUISH GRAY,TRIM1#
main73360-0W121-G0i199808
DARK AGATE,TRIM6#
main73360-33080-B0i199612-199808
BLUISH GRAY,TRIM1#
main73360-33080-G0i199612-199808
DARK AGATE,TRIM6#
main73360-33081-B0i199808-199908
BLUISH GRAY,TRIM1#
main73360-33081-C0i199908
BLACK,TRIM2#
main73360-33081-G0i199808
DARK AGATE,TRIM6#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-0W060-B0i199612-199808
BLUISH GRAY,TRIM1#
main73370-0W060-G0i199612-199808
DARK AGATE,TRIM6#
main73370-0W091-B0i199808-199908
BLUISH GRAY,TRIM1#
main73370-0W091-G0i199808
DARK AGATE,TRIM6#
main73370-33060-B0i199612-199808
BLUISH GRAY,TRIM1#
main73370-33060-G0i199612-199808
DARK AGATE,TRIM6#
main73370-33061-B0i199808-199908
BLUISH GRAY,TRIM1#
main73370-33061-C0i199908
BLACK,TRIM2#
main73370-33061-G0i199808
DARK AGATE,TRIM6#
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73380-33070-B0i199612-199908
BLUISH GRAY,TRIM1#
main73380-33070-C0i199908
BLACK,TRIM2#
main73380-33070-G0i199612
DK.SAGE,TRIM6#
main73470-AA010-B0i199612-199908
BLUISH GRAY,TRIM1#
main73470-AA010-G0i199612
DARK AGATE,TRIM6#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73480-0W030-B0i199612-199808
main73480-0W030-G0i199612-199808
main73480-0W031-B0i199808-199908
main73480-0W031-G0i199808
main73480-0W040-B0i199708-199908
BLUISH GRAY,TRIM1#
main73480-0W040-G0i199708
DARK AGATE,TRIM6#
main73480-33070-B0i199612-199908
BLUISH GRAY,TRIM1#
main73480-33070-C0i199908
BLACK,TRIM2#
main73480-33070-G0i199612
DK.SAGE,TRIM6#
9010511036
main90105-11036
9090119040
main90901-19040
9151161025
main91511-61025
9356054014
main93560-54014

18 parts on this diagram · 2 diagrams in section
