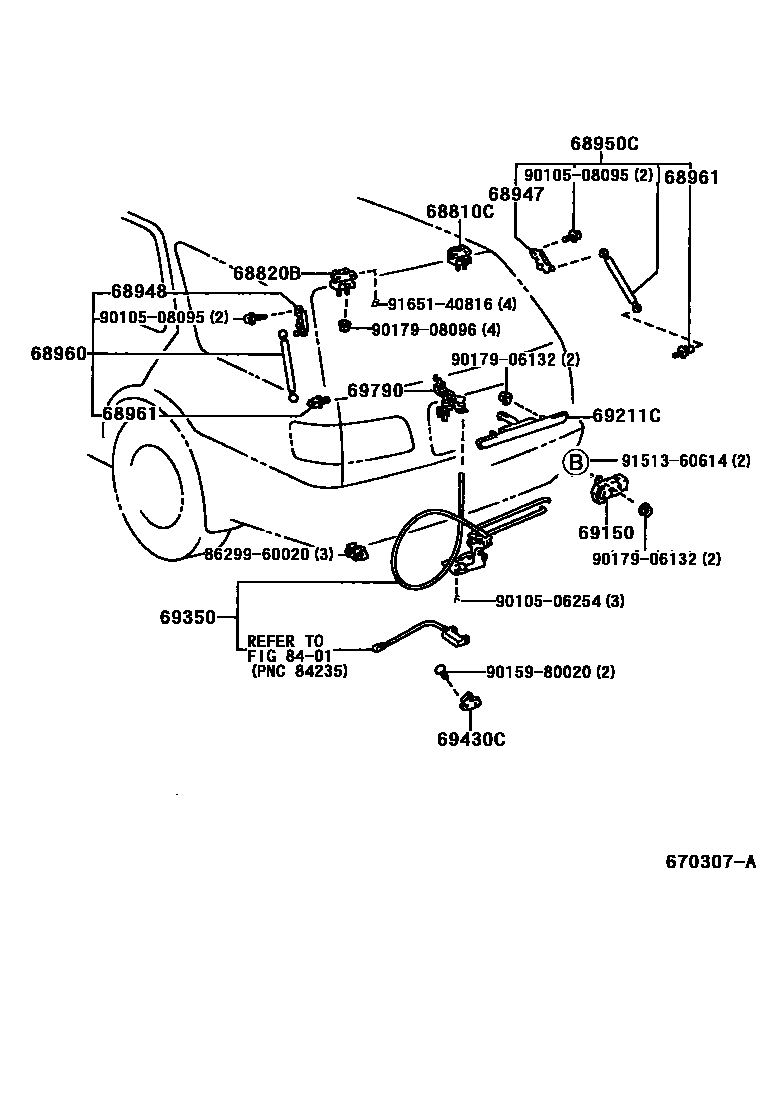

BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
68820BHINGE ASSY, BACK DOOR, LH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
sub68961-20051
69150ACTUATOR ASSY, BACK DOOR LOCK
69211CHANDLE, BACK DOOR OUTSIDE
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
sub69430-32070
69790CONTROL ASSY, BACK DOOR LOCK
8401
8629960020PAD, SPEAKER
main86299-60020
9010506254
main90105-06254
9010508095
main90105-08095
9015980020
main90159-80020
9017906132
main90179-06132
9017908096
main90179-08096
9151360614
main91513-60614
9165140816
main91651-40816
21 parts on this diagram · 1 diagram in section
