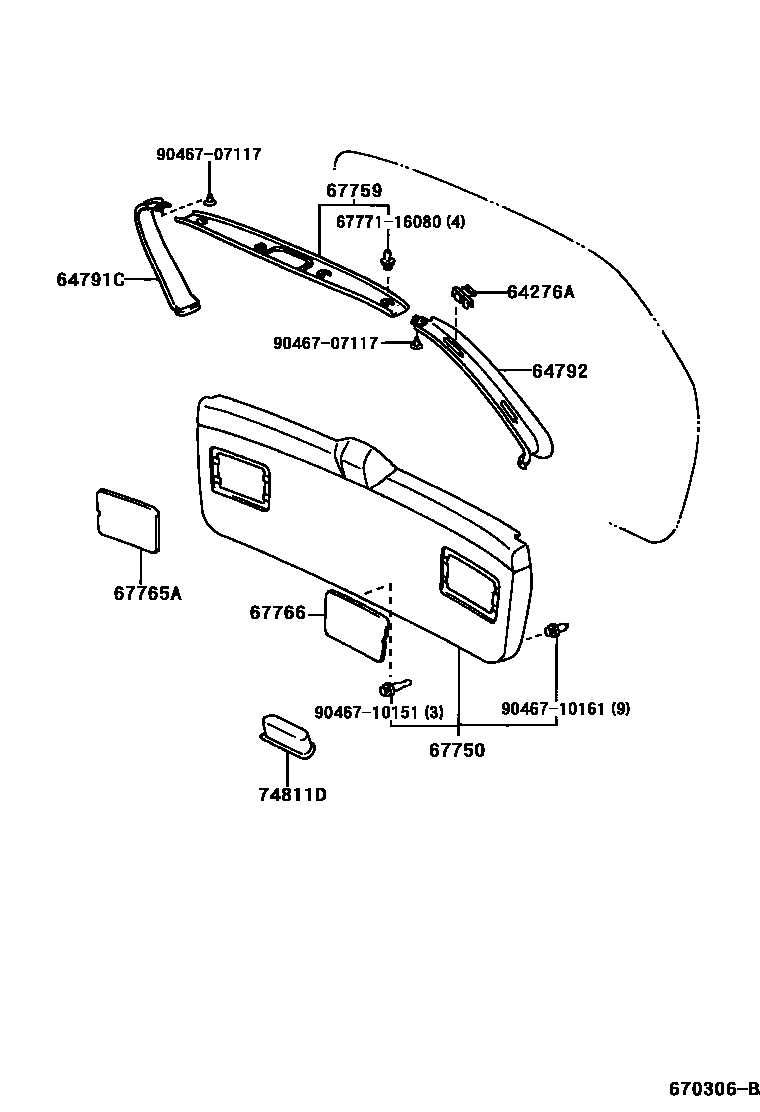

BACK DOOR PANEL & GLASS

0001 1 0002 1

64276ABRACKET, BACK PANEL TRIM, UPPER

main64276-33020iMCV2#,SXV2#..WG199612

64791CCOVER, BACK DOOR TRIM, RH

main64791-33050-B1iMCV2#,SXV2#..WG199612-199908

BLUISH GRAY,TRIM1#

main64791-33050-C0iMCV2#,SXV2#..WG199908

BLACK,TRIM2#

main64791-33050-G1iMCV2#,SXV2#..WG199612

DK.SAGE,TRIM6#

64792COVER, BACK DOOR TRIM, LH

main64792-33030-B1iMCV2#,SXV2#..WG199612-199908

BLUISH GRAY,TRIM1#

main64792-33030-C0iMCV2#,SXV2#..WG199908

BLACK,TRIM2#

main64792-33030-G1iMCV2#,SXV2#..WG199612

DK.SAGE,TRIM6#

67750BOARD ASSY, BACK DOOR TRIM

main67750-33010-B0iMCV2#,SXV2#..WG199612-199908

BLUE GRAY,TRIM1#

main67750-33010-C0iMCV2#,SXV2#..WG199908

BLACK,TRIM2#

main67750-33010-G0iMCV2#,SXV2#..WG199612

SAGE,TRIM6#

67759BOARD, BACK DOOR TRIM, UPPER

main67759-33010-B1iMCV2#,SXV2#..WG199612-199908

sub67759-33010

main67759-33010-C0iMCV2#,SXV2#..WG199908

sub67759-33010

main67759-33010-G1iMCV2#,SXV2#..WG199612

sub67759-33010

main67759-33020-B1iMCV2#,SXV2#..WG199612-199908

BLUISH GRAY,TRIM1#

sub67759-33020

main67759-33020-C0iMCV2#,SXV2#..WG199908

BLACK,TRIM2#

sub67759-33020

main67759-33020-G1iMCV2#,SXV2#..WG199612

DK.SAGE,TRIM6#

sub67759-33020

67765ACOVER, BACK DOOR SERVICE HOLE, NO.1

main67765-33010-B0iMCV2#,SXV2#..WG199612-199908

BLUE GRAY,TRIM1#

main67765-33010-C0iMCV2#,SXV2#..WG199908

BLACK,TRIM2#

main67765-33010-G0iMCV2#,SXV2#..WG199612

SAGE,TRIM6#

67766COVER, BACK DOOR SERVICE HOLE, NO.2

main67766-33010-B0iMCV2#,SXV2#..WG199612-199908

BLUE GRAY,TRIM1#

main67766-33010-C0iMCV2#,SXV2#..WG199908

BLACK,TRIM2#

main67766-33010-G0iMCV2#,SXV2#..WG199612

SAGE,TRIM6#

74811DHANDLE, DOOR PULL

main74811-13010-C0iMCV2#,SXV2#..WG199612-199908

BLACK,TRIM1#,6#

sub74811-13010

main74811-13010-C0iMCV2#,SXV2#..WG199908

BLACK,TRIM2#,6#

sub74811-13010

6777116080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16080

9046707117

main90467-07117

9046710151

main90467-10151

9046710161

main90467-10161

12 parts on this diagram · 2 diagrams in section
