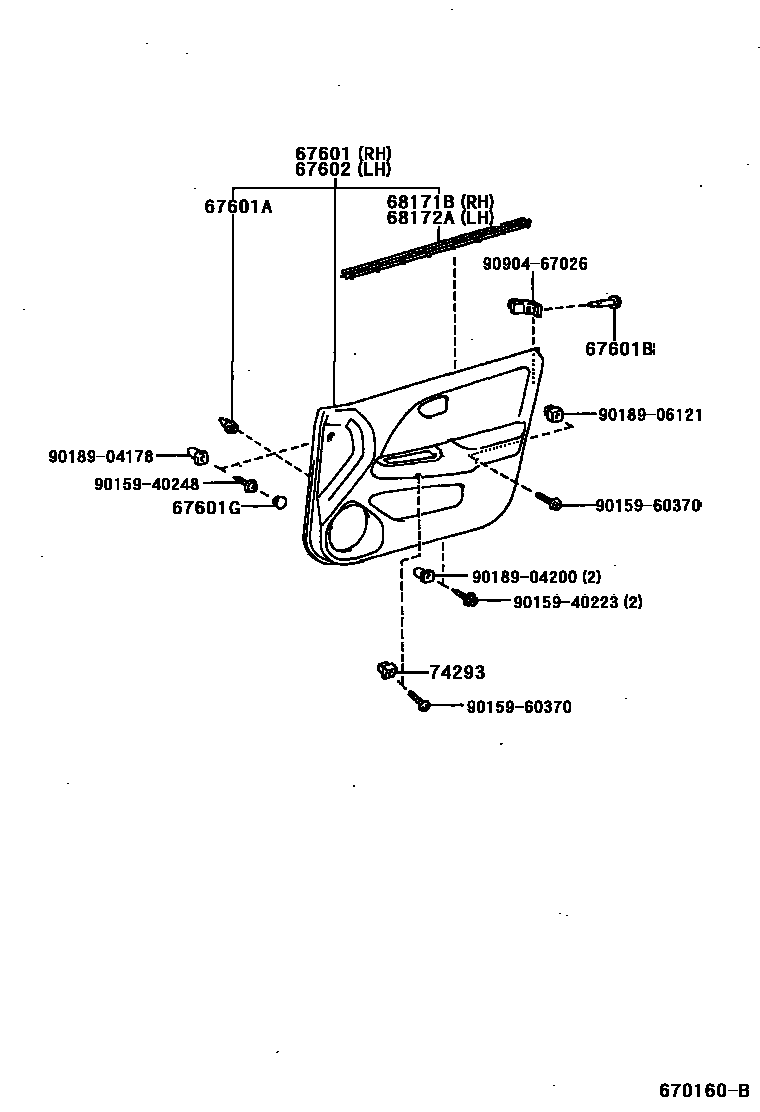

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-33390-B0iMCV2#,SXV2#199612-199908

BLUE GRAY,TRIM1#

sub67610-33390

main67610-33390-G0iMCV2#,SXV2#199612-199908

SAGE,TRIM6#

sub67610-33390

main67610-33390-G4iMCV2#,SXV2#199908

sub67610-33390

main67610-33560iMCV21..SED199805-199808

main67610-33560-B1iMCV21,SXV20..SED199808-199908

sub67610-33560

main67610-33560-C1iMCV2#,SXV2#..WG199908

sub67610-33560

main67610-33560-G0iMCV2#,SXV2#199808-199908

sub67610-33560

main67610-33560-G4iMCV2#,SXV2#199908

sub67610-33560

main67650-33120-C1iMCV2#,SXV2#..WG199908

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12050iMCV2#,SXV2#199612

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07066-22iMCV2#,SXV2#..WG199908

BLACK,TRIM2#

sub90467-07066

main90467-07066-B5iMCV2#,SXV2#199612-199908

BLUISH GRAY,TRIM1#

sub90467-07066

main90467-07066-G2iMCV2#,SXV2#199612

DK.SAGE,TRIM6#

sub90467-07066

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01746-22iMCV2#,SXV2#..WG199908

BLACK,TRIM2#

sub90950-01746

main90950-01746-B1iMCV2#,SXV2#199612-199908

BLUISH GRAY,TRIM1#

sub90950-01746

main90950-01746-G0iMCV2#,SXV2#199612

DK.SAGE,TRIM6#

sub90950-01746

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-33480-B1iMCV2#,SXV2#199612-199908

BLUE GRAY,TRIM1#

sub67620-33480

main67620-33480-G0iMCV2#,SXV2#199612-199908

SAGE,TRIM6#

sub67620-33480

main67620-33480-G4iMCV2#,SXV2#199908

sub67620-33480

main67620-33780iMCV21..SED199805-199808

main67620-33780-B0iMCV21,SXV20..SED199808-199908

sub67620-33780

main67620-33780-C1iMCV2#,SXV2#..WG199908

sub67620-33780

main67620-33780-G0iMCV2#,SXV2#199808-199908

sub67620-33780

main67620-33780-G4iMCV2#,SXV2#199908

sub67620-33780

main67660-33040-C1iMCV2#,SXV2#..WG199908

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-33010iMCV2#,SXV2#199612

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-33010iMCV2#,SXV2#199612

74293PLATE, FRONT DOOR ARMREST, NO.1

main74294-32010iMCV2#,SXV2#199612

9015940223

main90159-40223

9015940248

main90159-40248

9015960370

main90159-60370

9018904178

main90189-04178

9018904200

main90189-04200

9018906121

main90189-06121

9090467026

main90904-67026

15 parts on this diagram · 3 diagrams in section
