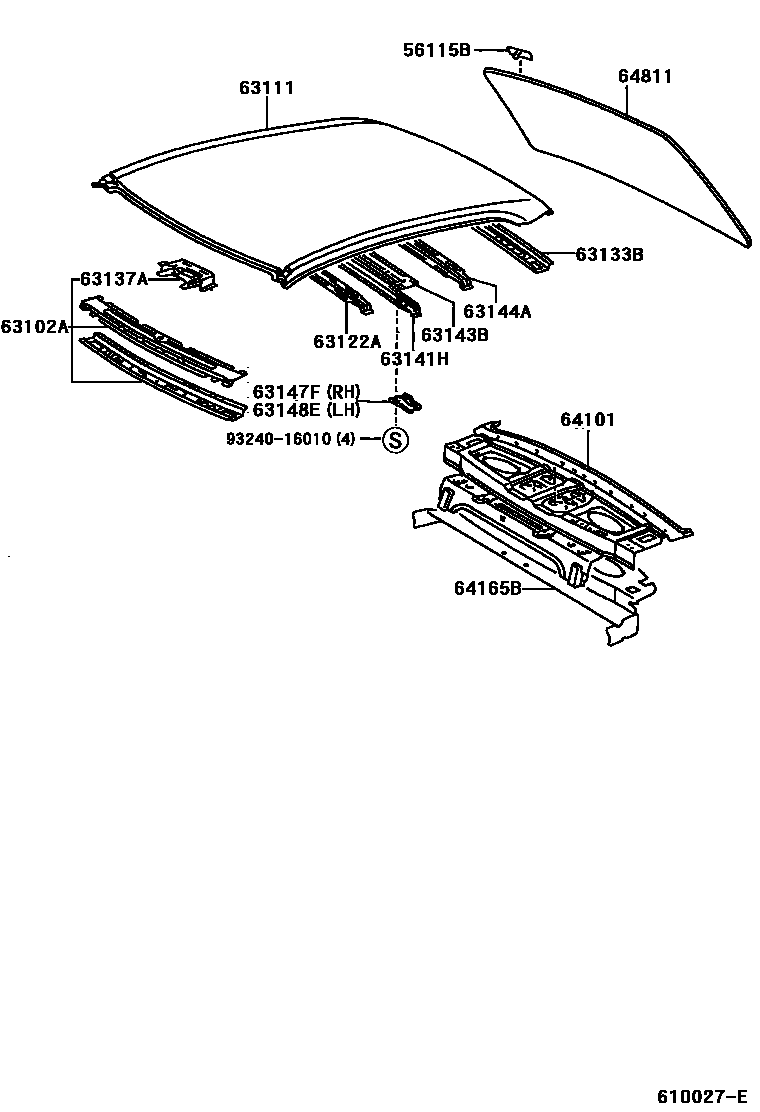

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63111PANEL, ROOF
63122AREINFORCEMENT, ROOF PANEL, FRONT
63133BFRAME, BACK WINDOW
63137ABRACKET, DOME LAMP, NO.1
63141HREINFORCEMENT, ROOF PANEL, CENTER
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63147FBRACKET, ROOF PANEL REINFORCEMENT, RH
63148EBRACKET, ROOF PANEL REINFORCEMENT, LH
64101PANEL SUB-ASSY, UPPER BACK
64165BCOVER, UPPER BACK PANEL HOLE, NO.1
64811GLASS, BACK WINDOW
9324016010
main93240-16010
15 parts on this diagram · 6 diagrams in section
