SIDE MEMBER

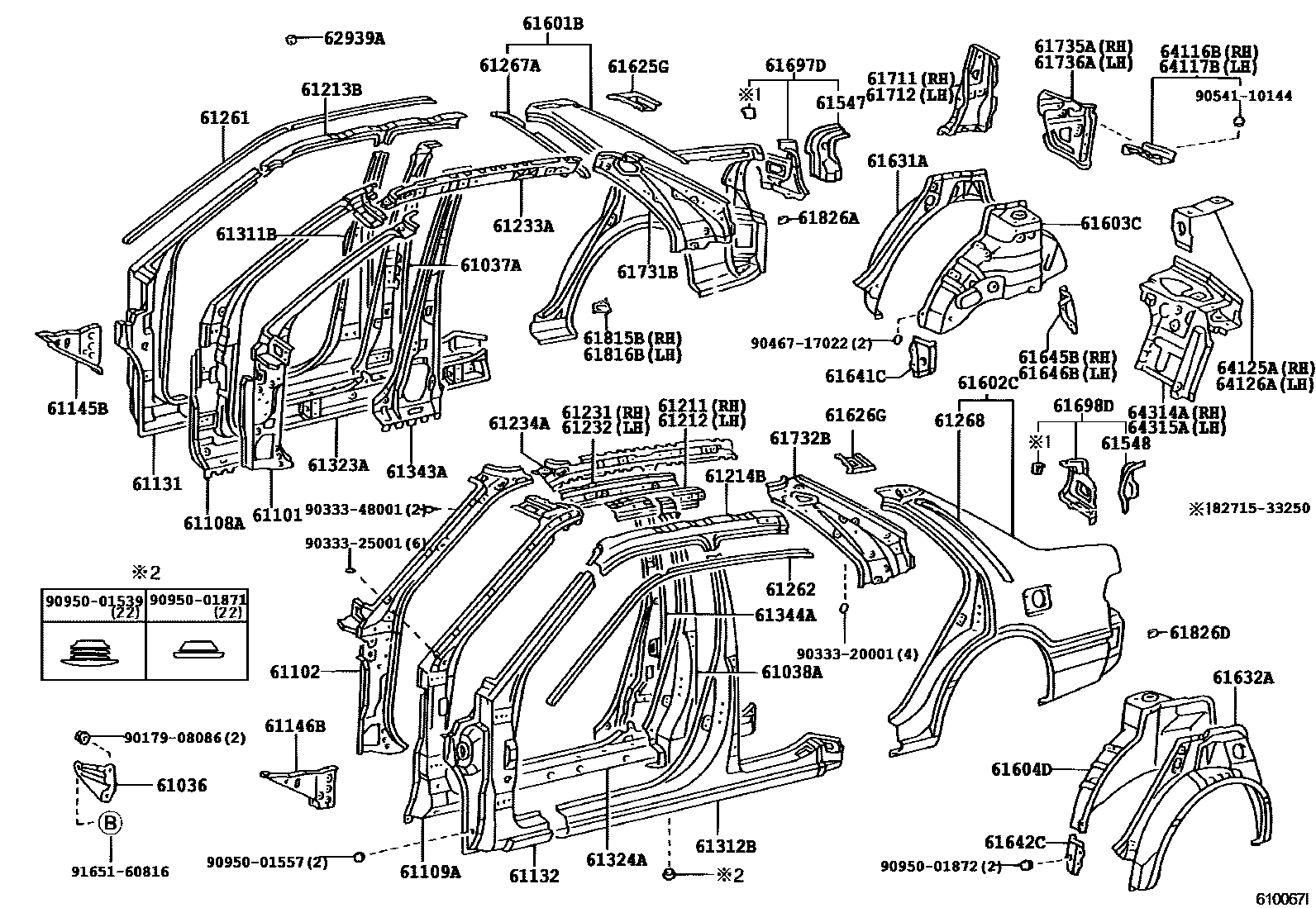

Parts diagram
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
main61166-33020i199612
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
main61047-33030i199612-199807
sub61047-33031
main61047-33031i199807
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
main61048-33030i199612-199807
sub61048-33031
main61048-33031i199807
61101PANEL SUB-ASSY, COWL SIDE, RH
main61101-33030i199612
61102PANEL SUB-ASSY, COWL SIDE, LH
main61102-33040i199612
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
main61106-33010i199612
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
main61107-33010i199612
61131PILLAR, FRONT BODY, UPPER OUTER RH
main61131-33020i199612
61132PILLAR, FRONT BODY, UPPER OUTER LH
main61132-33020i199612
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
main61145-33020i199612
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
main61146-33020i199612
61211RAIL, ROOF SIDE, OUTER RH
main61211-AA020i199612
61212RAIL, ROOF SIDE, OUTER LH
main61212-AA020i199612
61213RAIL, ROOF SIDE, OUTER REAR RH
main61213-33010i199612
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
main61213-33020i199612
main61213-33040i199612
61214RAIL, ROOF SIDE, OUTER REAR LH
main61214-33010i199612
61214BRAIL, ROOF SIDE, OUTER NO.2 LH
main61214-33020i199612
main61214-33040i199612
61231RAIL, ROOF SIDE, INNER RH
main61231-33050i199612-199804
sub61231-33051
main61231-33051i199804
main61231-AA020i199612-199805
sub61231-AA021
main61231-AA021i199805
61232RAIL, ROOF SIDE, INNER LH
main61232-33050i199612-199804
sub61232-33051
main61232-33051i199804
main61232-AA020i199612-199805
sub61232-AA021
main61232-AA021i199805
61233ARAIL, ROOF SIDE, INNER NO.2 RH
main61233-33020i199612-199808
main61233-33021i199808
main61233-33070i199612-199805
main61233-33071i199805
61234ARAIL, ROOF SIDE, INNER NO.2 LH
main61234-33060i199612-199808
main61234-33061i199808
main61234-33070i199612-199805
main61234-33071i199805
61261CHANNEL, ROOF DRIP, RH
main61261-33010i199612
main61261-33030i199612
61262CHANNEL, ROOF DRIP, LH
main61262-33010i199612
main61262-33030i199612
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
main61267-33020i199612
main61267-33040i199612
61268CHANNEL, ROOF DRIP SIDE, REAR LH
main61268-33020i199612
main61268-33040i199612
61311BPILLAR, CENTER BODY, OUTER RH
main61311-33010i199612
61312BPILLAR, CENTER BODY, OUTER LH
main61312-33010i199612
61323AREINFORCEMENT, CENTER BODY PILLAR, LOWER RH
main61305-33010i199612
61324AREINFORCEMENT, CENTER BODY PILLAR, LOWER LH
main61306-33010i199612
61343APILLAR, CENTER BODY, INNER RH
main61307-33010i199612-199808
sub61307-33011
sub90167-50057
main61307-33020i199706-199808
sub61307-33021
sub90167-50057
main61307-33021i199808
61344APILLAR, CENTER BODY, INNER LH
main61308-33010i199612-199808
sub61308-33011
sub90167-50057
main61308-33020i199706-199808
sub61308-33021
sub90167-50057
main61308-33021i199808
61547REINFORCEMENT, QUARTER PILLAR, INNER RH
main61547-AA010i199612
61548REINFORCEMENT, QUARTER PILLAR, INNER LH
main61548-AA010i199612
61601BPANEL SUB-ASSY, QUARTER, RH
main61601-33908i199808-199908
main61601-33908i199612
main61601-33914i199612
61602CPANEL SUB-ASSY, QUARTER, LH
main61602-33904i199808-199908
main61602-33904i199612
main61602-33908i199612
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
main61607-33901i199612
61604DPANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH
main61608-33901i199612
61625GEXTENSION, QUARTER PANEL, REAR RH
main61625-33020i199612-199808
sub61625-33021
main61625-33021i199808
61626GEXTENSION, QUARTER PANEL, REAR LH
main61626-33020i199612-199808
sub61626-33021
main61626-33021i199808
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
main61631-33900i199612
main61631-33901i199612
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
main61632-33900i199612
main61632-33901i199612
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
main61641-33010i199612
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
main61642-33010i199612
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
main61645-33010i199612
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
main61646-33010i199612
61697DHOUSING, QUARTER PANEL END, RH
main61697-33040i199612
main61697-33900i199612-199811
sub61697-33902
main61697-33902i199811
61698DHOUSING, QUARTER PANEL END, LH
main61698-33040i199612
main61698-33900i199612-199811
sub61698-33902
main61698-33902i199811
61711PANEL, ROOF SIDE, OUTER RH
main61711-33020i199612
61712PANEL, ROOF SIDE, OUTER LH
main61712-33020i199612
61731BPANEL, ROOF SIDE, INNER RH
main61731-33060i199612-199808
sub61731-33061
main61731-33061i199808
main61731-33080i199612
61732BPANEL, ROOF SIDE, INNER LH
main61732-33050i199612-199808
sub61732-33051
main61732-33051i199808
main61732-33070i199612
61735APANEL, ROOF SIDE, INNER REAR RH
main61735-33010i199612-199907
sub61735-33012
sub90467-07146
main61735-33011i199907-199908
main61735-33012i199908
main61735-33030i199612
61736APANEL, ROOF SIDE, INNER REAR LH
main61736-33010i199612-199908
sub61736-33012
sub90467-07146
main61736-33012i199908
main61736-33030i199612
61815BCOVER, ROOF SIDE, INNER UPPER RH
main61815-16030i199612
main61815-33040i199612
61816BCOVER, ROOF SIDE, INNER UPPER LH
main61815-16030i199612
main61815-33040i199612
61826APLATE, NOISE CONTROL, NO.3
main61825-12010i199612
main61826-30030i199612
61826DPLATE, NOISE CONTROL, NO.3
main61825-12010i199705
main61826-30030i199612-199705
main61826-30030i199612
62939ASILENCER, QUARTER VENT
main62939-32020i199612-199908
64116BREINFORCEMENT, UPPER BACK, RH
main64116-33030i199612
64117BREINFORCEMENT, UPPER BACK, LH
main64117-33030i199612
64125ABRACKET, UPPER BACK PANEL, RH
main64125-33020i199612
64126ABRACKET, UPPER BACK PANEL, LH
main64126-33020i199612
64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH
main64304-33900i199612
64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH
main64305-33900i199612
8271533250BRACKET,WIRING HARNESS CLAMP
main82715-33250
9017908086
main90179-08086
9033320001
main90333-20001
9033325001
main90333-25001
9033348001
main90333-48001
9046717022
main90467-17022
9054110144
main90541-10144
9095001539
main90950-01539
9095001557
main90950-01557
9095001871
main90950-01871
9095001872
main90950-01872
9165160816
main91651-60816

76 parts on this diagram · 2 diagrams in section
