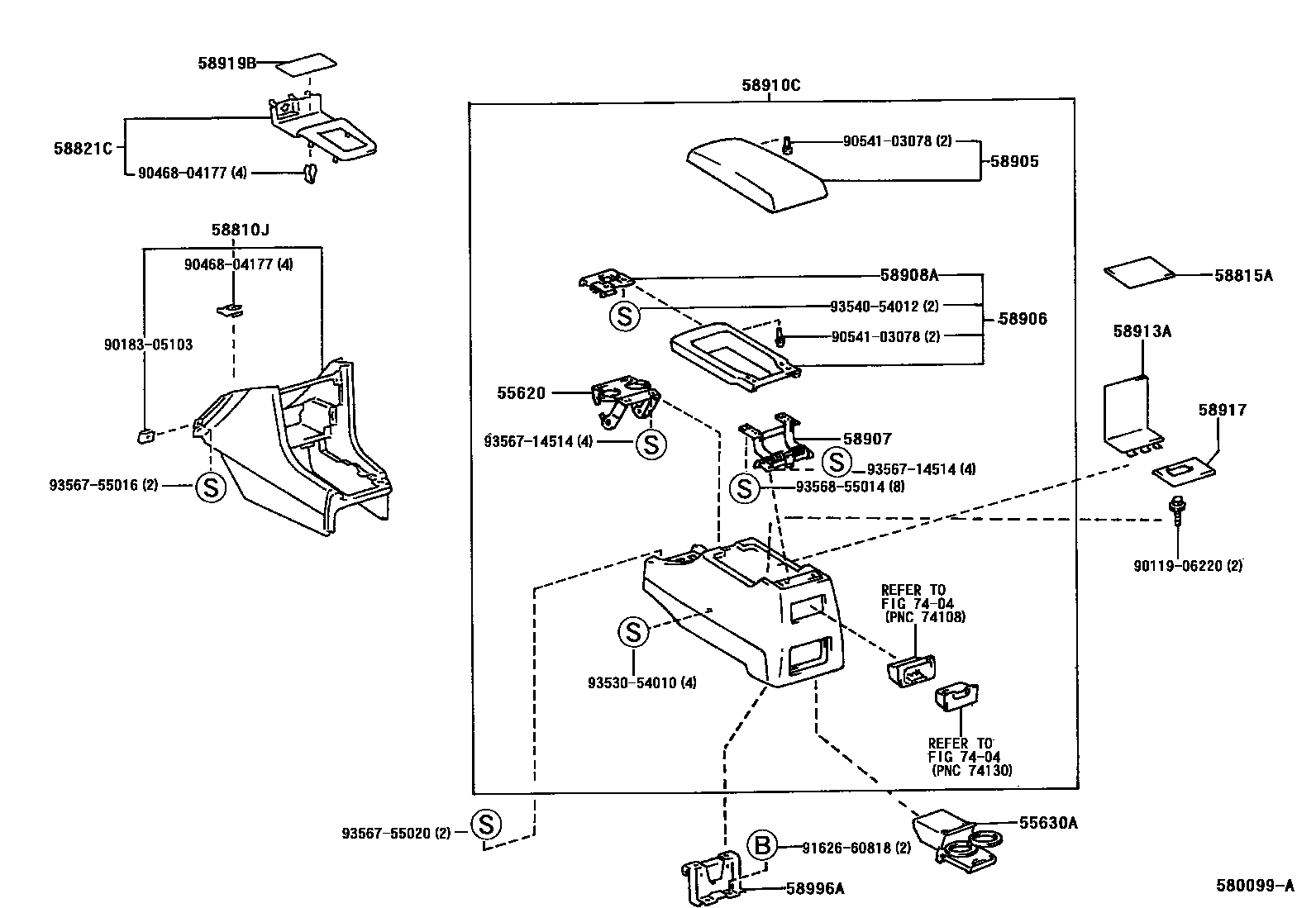

CONSOLE BOX & BRACKET
55620HOLDER ASSY, INSTRUMENT PANEL CUP
BLUISH GRAY,TRIM1#
BLACK,TRIM2#
DK.SAGE,TRIM6#
55630AHOLDER, REAR CONSOLE BOX, CUP
BLUISH GRAY,TRIM1#
BLACK,TRIM2#
DK.SAGE,TRIM6#
58810JBOX ASSY, CONSOLE
BLUISH GRAY,TRIM1#
BLACK,TRIM2#
DK.SAGE,TRIM6#
58815ACARPET, CONSOLE BOX
58821CPANEL, CONSOLE, UPPER
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLUE GRAY,TRIM1#
SAGE,TRIM6#
BLACK,TRIM2#
58906DOOR SUB-ASSY, UPPER CONSOLE
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
BLUISH GRAY,TRIM1#
DK.SAGE,TRIM6#
BLACK,TRIM2#
58913APANEL, BOX, NO.3
58917MAT, BOX BOTTOM, NO.2
58919BPLATE, CONSOLE BOX
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
7404
9011906220
main90119-06220
9018305103
main90183-05103
9046804177
main90468-04177
9054103078
main90541-03078
9162660818
main91626-60818
9353054010
main93530-54010
9354054012
main93540-54012
9356714514
main93567-14514
9356755016
main93567-55016
9356755020
main93567-55020
9356855014
main93568-55014
26 parts on this diagram · 1 diagram in section
